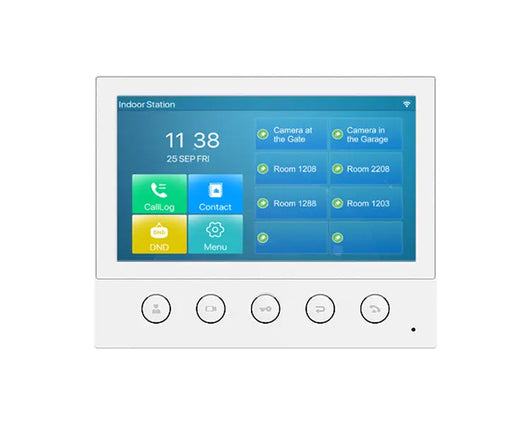

Fanvil i53W SIP Indoor Station

The Fanvil i53W is a 7-inch colour touch screen SIP indoor station with 5 function buttons, which can be applied in different indoor scenarios. Working with door phone and intercom at the entrance, Fanvil i53W can be easily achieved remote access control for residences. It can also be connected to alarms and other intelligent security devices via rich interfaces.

Fanvil i53W Key Features

7-inch colour touch screen
5 physical function keys
Built-in 2W speaker with AEC
Support visual intercom and remote access control
Real-time monitor of the door phone and cameras
Built-in 2.4G WiFi
8 alarm input interfaces
1 pair of RS-485 interfaces
Wall-mounted and desktop installation methods (with the external desk stand)
Compatible with major platforms: 3CX, Avaya, Asterisk, BroadSoft, Metaswitch, Elastix and etc.

Fanvil i53W Technical Specifications

General

6 SIP Lines
HD Voice
PoE
External Power Supply(Optional)

Display

1 x LCD: 7-inch 800x480 Colour Screen

Audio

Wideband ADC/DAC 16KHz sampling
Narrowband codec: G.711A/U, G.729AB, iLBC
Wideband codec: G.722, Opus
Full-duplex hands-free speakerphone with AEC
Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR)
Packet Loss Concealment (PLC)
Dynamic Adaptive Jitter Buffer
DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO
VQM voice quality monitoring

Video

Hardware video decoding: H.264
Video call resolution: QVGA / CIF / VGA / 4CIF / 720P / 1080P

Network

10/100 Mbps Ethernet
IP Mode:IPv4/IPv6/IPv4&IPv6
IP Configuration: Static / DHCP / PPPoE
VPN: L2TP / OpenVPN
QoS
RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)
WiFi

Protocols

SIP v1 (RFC2543), v2 (RFC3261) over UDP/TCP/TLS
RTP/RTCP/SRTP
STUN
DHCP
IPv6
PPPoE
L2TP
OpenVPN
SNTP
FTP/TFTP
HTTP/HTTPS
TR-069

Deployment & Management

Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIP PNP/TR-069
Web management portal
Web-based packet dump
Configuration export / import
Firmware upgrade
Syslog

Physical Specification

5 Function keys (Management Center, Monitor, Unlock, Return/Hang up, Answer)
10 Pin Cable x1
4 Pin Cable x1
2 Pin Cable x1
Wall-mount Bracket x1
Screws Kit x1
RJ45 Interface x1
RS485 Interface x1
Alarm Input Interface x8
DC Power Input: 12V/1A
Power Consumption (PoE): 1.44W~4.76W
Power Consumption (Adapter): 1.25W~4.09W
Working Temperature: 0~45℃
Working Humidity: 10~90%
Colour: White
Installation:
- Desktop (Need to purchase stand separately)
- Wall-mounted
Device Dimensions: 176x104x26.5 mm
Gift Box Dimensions: 193x152x39 mm
Outer CTN Dimensions: (20 PCS) 413x220x322 mm
