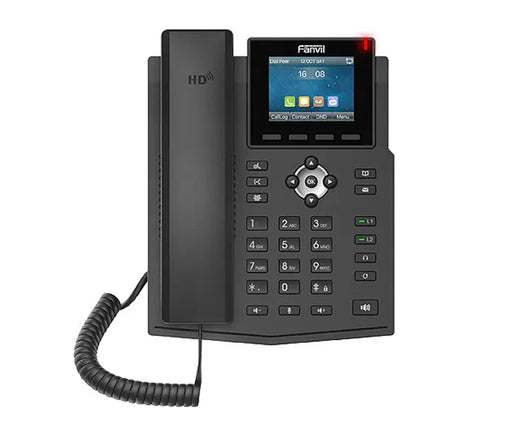

Fanvil X3S Pro Entry Level IP Phone
Fanvil X3S Pro Entry Level IP Phone
The Fanvil X3S Pro IP Phone is an entry-level colour screen IP Phone. With high-definition voice, 320x240 2.4-inch colour main screen, 4 SIP lines, local 6-party conference call and other extended features like EHS headset, it provides the high-quality and convenient experience for users at an affordable price. Power adapter included.
Fanvil X3S Pro VoIP Phone Key Features
- 4 SIP Lines, SIP hotspot
- 1000 local phonebook, caller ID, call hold, call transfer
- 2.4" main colour display
- HD audio on speakerphone and handset
- Opus voice: can handle a variety of audio applications, including IP voice, Multiparty conference, etc.
- Support 6-party local conference
- Support EHS wireless headset
- Dual Fast ports, integrated PoE (only X3SP Pro)
- Stand with 2 adjustable andles of 45 and 50 degrees
- Compatible with major platforms: Asterisk, Broadsoft, 3CX, Metaswitch, Elastix, Avaya etc.
HD Audio Call with Excellent Noise Reduction
The appearance of the X3S Pro/X3SP Pro inherits the aesthetic design of the previous generation. Featuring visual icon interface, user-friendly UI design, it is easy-to-use with lower learning cost
Enhanced HD Audio Communication
X3S Pro/X3SP Pro features HD audio handles, built-in HD speakers, and supports the wideband audio decoding G.722 and Opus. It provides you with ideal HD audio communication experience with excellent noise reduction
Support 6-way Audio Conference
The conference organizer can invite up to 5 participants to participate in the conference call, realizing efficient internal and external collaborative work of the enterprise and greatly improving the communication efficiency
Flexible Installation for Multiple Scenes
X3SP Pro supports PoE through a network cable to complete the telephone power supply and networking. Supporting 45°and 50°two angle desktop installation mode, X3S Pro/X3SP Pro can be hung through the external wall bracket accessories WB101 (need to buy separately), can meet the needs of various office environment
Generic
- 4 SIP Lines
- HD Voice
- PoE Enabled (X3SP Pro only)
- 2.4-inch colour screen
- Handset / Hands-free / Headset mode
- Desktop Stand / Wall-mounted (need an additional wall hanging parts)
- Optional External Power Supply
Phone Functions
- Local Phonebook (1000 entries)
- Remote Phonebook (XML/LDAP, 1000 entries)
- Call logs (In/Out/Missed, 600 entries)
- Black/White List Call Filter
- Screen saver
- Voice Message Waiting Indication (VMWI)
- Programmable DSS/Soft keys
- Network Time Synchronization
- Support Plantronics wireless headset (Through PlantronicsAPD-80 EHS Cable)
- Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
- Support Recording (Through Server)
- Action URL / Active URI
- uaCSTA
Call Functions
- Call out / Answer / Reject
- Mute / Unmute (Microphone)
- Call Hold / Resume
- Call Waiting
- Intercom
- Caller ID Display
- Speed Dial
- Anonymous Call (Hide Caller ID)
- Call Forward (Always/Busy/No Answer)
- Call Transfer (Attended/Unattended)
- Call Parking/Pick-up (Depending on server)
- Redial
- Do-Not-Disturb
- Auto-Answering
- Voice Message (With server)
- 6-way Conference
- Hot Line
- Hot desking
Audio
- HD Voice Microphone/Speaker (Handset/Hands-free, 0 ~ 7KHzFrequency Response)
- HAC handset
- Wideband ADC/DAC 16KHz Sampling
- Narrowband Codec: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
- Wideband Codec: G.722, Opus
- Full-duplex Acoustic Echo Canceller (AEC)
- Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR)/ Automatic Gain Control (AGC)
- Packet Loss Concealment (PLC)
- Dynamic Adaptive Jitter Buffer
- DTMF: In-band, Out-of-Band (RFC2833) / SIP INFO
- VQM voice quality monitoring
Network
- Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
- IP Mode:IPv4/IPv6/IPv4&IPv6
- IP Configuration: Static IP / DHCP / PPPoE
- Network Access Control: 802.1x
- VPN: L2TP / OpenVPN
- VLAN
- LLDP
- QoS
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
Protocols
- SIP2.0 over UDP/TCP/TLS
- RTP/RTCP/SRTP
- STUN
- DHCP
- IPv6
- LLDP
- PPPoE
- 802.1x
- L2TP
- OpenVPN
- SNTP
- FTP/TFTP
- HTTP/HTTPS
- TR-069
- AES128 & AES256
Deployment & Management
- Auto-Provisioning via FTP/TFTP/HTTP/HTTPS/DHCP OPT66/SIPPNP/TR-069
- Web Management Portal
- Web-based Packet Dump
- Configuration Export / Import
- Phonebook Import/Export
- Firmware Upgrade
- Syslog
Physical Specifications
- LCD: 2.4-inch (320x240) Colour Screen
- Keypad: 34 keys, including:
- 4 Soft-keys
- 7 Function keys (Hold/Transfer/Conference/Phonebook/MWI/Headset/Redial)
- 2 Line keys (With LED Indicator Light)
- 4 Navigation keys
- 1 OK key
- 12 Standard Phone Digits keys
- 3 Volume Control keys (Up/Down/Mute (Microphone))
- 1 Hands-free key - HD Handset (RJ9) x1
- Standard RJ9 Handset Wire x1
- 1.5M CAT5 Ethernet Cable x1
- Back Rack x1
- Status Indicator Light x1 (Red)
- RJ9 Port x2: Handset x1, Headset x1
- RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
- Safety Keyhole x1
- DC Power Input: DC5V/0.6A
- Power Consumption: Idle 0.9~1.48W,Peak 2.03~3.03W
- Working Temperature: 0~45°C
- Working Humidity: 10~95%
- Installation:
- Desktop Stand
- Wall-mounted (need an additional wall hanging parts) - Colour: Black
- Device Dimensions:
- Desktop Stand (Angles 1): 169x186.3x174.5 mm
- Desktop Stand (Angles 2): 169x177.6x183.7 mm
- Wall-mounted: 169x115.6x212.5 mm - Gift Box Dimensions: 274x215x68 mm
- Outer CTN Dimensions: 450x360x294 mm (10 PCS)
