Description
Grandstream GDS37XX-WMK In-Wall Mounting Kit for GDS3710

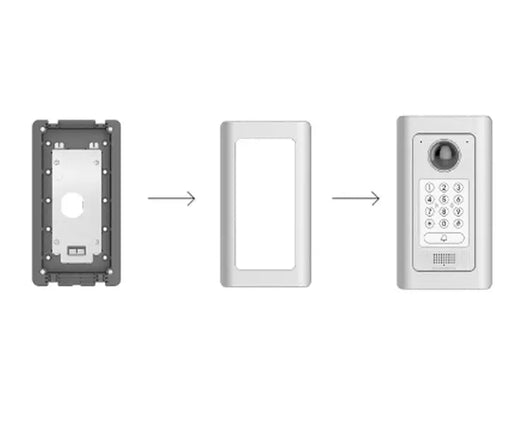

The Grandstream GDS37XX-WMK In-Wall Mounting Kit is available for use with the GDS3710 IP Video Door Phone. This mounting kit allows the GDS3710 to be mounted flushed within a wall, rather on the surface of the wall. It supports solid wall, stud, and drywall (hollow wall) installation.
When installing the GDS3710 or the In-Wall Mounting kit, please follow local building and electrical codes. The device is suggested to be installed with the bottom of the device 50-55 inches above the ground.
Grandstream GDS37XX-WMK In-Wall Mounting Kit - Technical Specifications
Box Contents
- 1 installation bracket
- 1 cover plate
- 1 plastic box
- 1 drill template
- Quick reference guide
- 1 metal frame
- 6 piece anchor and screw set
- 12 screws (2 different lengths)
- 12 nuts (two different styles)
- 6 anti-tamper screws
- 1 anti-tamper hex key
Required In-Wall Space
- 99.8mm (3.93 inches) x 193.88mm (7.63 inches), 35mm deep (1.38 inches)
Download
Download File
Grandstream GDS37XX-WMK In-Wall Mounting Kit for GDS3710
£50.46
