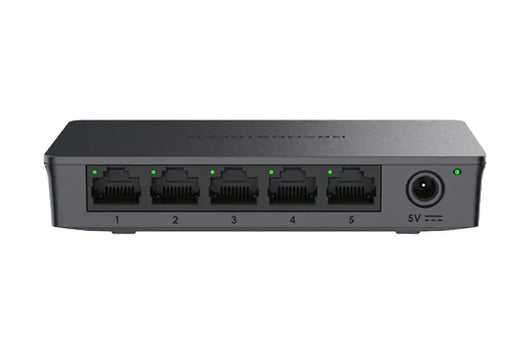

Grandstream GWN7700 Unmanaged Network Switch
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
Categories

Grandstream GWN7700 Unmanaged Network Switch

Available:In Stock
£12.00

Grandstream GWN7700 Unmanaged Network Switch

The Grandstream GWN7700 series introduces unmanaged network switches, providing a cost-effective method to add high-speed Gigabit connectivity to home offices and small/medium businesses. These switches require no configuration, offering a desktop or wall-mountable design with auto MDI/MDIX to eliminate crossover cable needs. Each port supports auto-negotiation, allowing compatibility with 10/100/1000Mbps devices.

Grandstream GWN7700 Key Features:

  • 5 & 8 RJ45 Ports for Gigabit connectivity.
  • Green tech reduces power use.
  • LED Indicators for Link, Activity, Speed, and Power.
  • Auto MDI/MDIX for all ports.
  • Storm Control (fixed to 100Mbps) for traffic monitoring.
  • QoS: Supports Default Strict Priority (when present).

In summary, the GWN7700 series of unmanaged network switches efficiently enhances connectivity. Its features like auto MDI/MDIX, and auto-negotiation cater to diverse networking needs, making it an ideal choice for various setups.

Grandstream GWN7700 Technical Specifications

Gigabit Ports

  • 5 Gigabit Ports

Enclosure

  • Plastic Enclosure

Mounting

  • Desktop/Wall-Mount

Standards and Protocols

  • IEEE 802.3i
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3x
  • IEEE 802.1p
  • IEEE 802.3af
  • IEEE 802.3at

Port Features

  • 5× 10/100/1000Mbps RJ45 Ports
  • AUTO Negotiation
  • AUTO MDI/MDIX

Network Media

  • 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex

LED Indicators

  • Per port: Link/Activity Green
  • Per device: Power Green

Mac Address Table

  • 2K entries

Switching Capacity

  • 10Gbps

Jumbo Frame

  • 9KB

Advanced Features

  • Mac Address Auto-Learning And Auto-Aging
  • IEEE 802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP:
    • IGMP Fast-Leave
    • IGMP Snoop
    • Route Port Autolearn
    • Query Refresh Member Port

Power Adapter

  • External 5VDC/0.6A

Max Power Consumption by Base System

  • 1.7W

Environmental

  • Operating Temperature: 0 to 40 °C (32 to 104 °F)
  • Storage Temperature: -20 to 60 °C (-4 to 140 °F)
  • Operating Humidity: 10% to 90% Non-condensing
  • Storage Humidity: 10% to 90% Non-condensing

Dimensions (L x W x H)

  • Unit: 120 x 65 x 24.5mm
  • Package: 223 x 90.5 x 54mm

Weight

  • Unit: 0.1KG
  • Entire Package: 0.25KG

Package

  • 1x Switch
  • 1x Power Adapter
  • 1x Quick Installation Guide (QIG)

Compliance

  • FCC
  • CE
  • RCM
  • IC
  • UKCA
