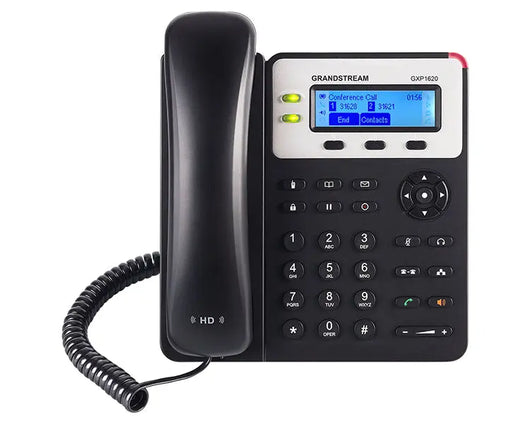

Grandstream GXP1620 HD IP Phone (Non PoE)

Grandstream GXP1620/GXP1625 Datasheet (PDF)    Grandstream GXP16xx Administration Guide (PDF)

Grandstream GXP1620 HD IP Phone (Non PoE)

The Grandstream GXP1620 is an IP Phone that is perfect for small businesses. Users of this phone can expect a great standard with Linux-based operating system and HD audio on both the speakerphone and handset. Professionals are well connected with colleagues and benefit from features such as 2-line keys and 3-way conferencing.

Grandstream GXP1620 Key Features:

• 2 SIP accounts, 2 line keys, 3-way conferencing, 3 XML programmable context-sensitive soft keys

• Dual-switched 10/100 Mbps ports

• HD audio on speakerphone and handset

Grandstream GXP1620 Technical Specification

Protocols/Standards

• SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A re- cord, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, CDP/SNMP/RTCP-XR

Network Interfaces

• Dual switched auto-sensing 10/100 Mbps Ethernet ports, integrated PoE (GXP1625 only)

Graphic Display

• 132 x 48 backlit graphical LCD Display

Feature Keys

• 2 line keys with dual-colour LED and 2 SIP accounts

• 3 XML programmable content sensitive soft keys

• 5 navigation menu keys

• 13 dedicated function keys for:

  -Mute

  -Headset

  -Transfer

  -Conference

  -Send

  -Redial

  -Speakerphone

  -Message

  -Hold

  -Page/Intercom

  -Record

  -Home

Voice Codecs

• Support for G.711µ/a, G.722 (wide-band), G.723, G.726-32, G.729 A/B, iLBC, inband and out-of-band DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC

Telephony Features

• Hold, transfer, forward (unconditional/no-answer/busy), 3-way conferencing, call park/pickup, shared-call appearance (SCA) / bridged-line-appearance (BLA), Down- loadable phone book (XML, LDAP, up to 1000 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over

Headset Jack

• RJ9 headset jack (allowing EHS with Plantronics headsets)

HD Audio

• Yes, HD Handseet and speakerphone with support for wideband audio.

QoS

• Layer 2 QoS (802.1Q, 802.1P)

• Layer 3 QoS (ToS, DiffServ, MPLS)

Security

• User and administrator access control

• MD5 and MD5-sess based on authentication

• 256-bit AES encrypted configuration file

• TLS

• SRTP

• HTTPS

• 802.1x media access control

Multi-Language

• English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simpli- fied and traditional Chinese, Korean, Japanese and more

Upgrade/Provisioning

• Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file, FTP/FTPS

Power & Green Energy Efficiency

• Universal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA; PoE: IEEE802.3af Class 2, 3.84W-6.49W; IEEE802.3az (EEE) (GXP1625 only)

Physical

• Dimension - 209mm (L) x 184.5mm (W) x 76.2mm (H) (with handset)

• Unit Weight - 0.73kg

• Package Weight - 1.1kg

Temperature and Humidity

• Operation: 0°C to 40°C, Storage: -10°C to 60°C , Humidity: 10% to 90% Non-condensing

Package Content

• GXP1620 phone, handset with cord, base stand, network cable, Quick installation guide, brochure and GPL License

Compliance

• FCC: Part 15 (CFR 47) Class BCE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 60950.1
