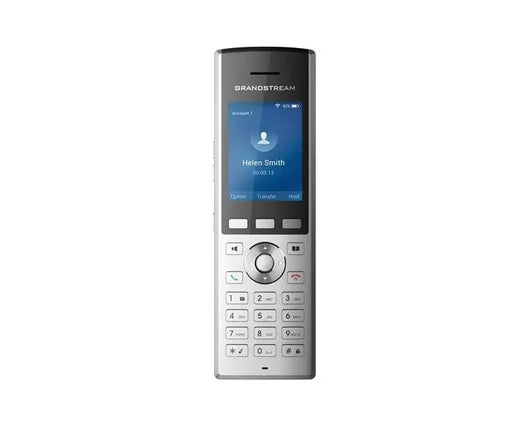

Grandstream WP820 Enterprise Portable WiFi Phone
The Grandstream WP820 is a portable WiFi phone designed to suit a variety of enterprises and vertical market applications, including retail, logistics, medical and security. This powerful, portable WiFi phone comes equipped with integrated dual-band 802.11a/b/g/n WiFi support, advanced antenna design and roaming support, and integrated Bluetooth for pairing with headsets and mobile devices. By adding 7.5 hour talk time and HD voice with dual- MICs, the WP820 offers a powerful combination of features, mobility and durability to suit all portable telephony needs.
Grandstream WP820 Key Features
- 2 lines, 2 SIP accounts
- Dual-band WiFi with outstanding antenna design and advanced roaming support
- Bluetooth for syncing headsets and mobile devices
- HD voice and dual MIC design with AEC and noise shield technology
- Rechargeable battery with 7.5 hour talk time, 150-hours standby
- Speakerphone with HD acoustic chamber & echo cancellation
- Built-in push-to-talk and panic buttons
- Accelerometer and configurable button for push-to-talk, panic and other related functions
- Micro USB port and 3.5mm headset jack
- Supports custom Android apps that fit the phone’s screen/keys
Grandstream WP820 Technical Specification
Protocol/Standards
- SIP RFC261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTRI), DHCP, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
Voice Codecs
- Support for G.711, G.729A/B, G.722 (wide-band), iLBC, Oupus, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)
Graphic
- 2.4 inch (240x320) TFT colour LCD
Peripherals
- 3 soft keys, dial, hangup, speakerphone, phonebook, backlit keypad, proximity sensor, accelerator, vibration motor, volume button and navigation keys
Push-to-talk
- Customisable button for push-to-talk, panic call and other related functions
Bluetooth
- Yes, Bluetooth v 4.0
Auxiliary Ports
- 3.5mm headphone jack, Micro USB port for charging, dual MIC, dual colour LED
Operating System
- Android 7.0 supports custom Android apps that fit the phone's screen/ keyboard
Security
- User and administrator level passwords, MDS and MDS-sess based authentication, 256-bit AES based secure configuration file, SRTP, TLS, 802.1 x media access control
HD Audio
- Yes, both on handset and speakerphone with support for wideband audio, HAC supported
QoS
- Layer 2, (802.1Q, 802. 1p), 802.11e and Layer 3 (ToS, DiffServ, MPLS) QoS
Multi-language
- English, Arabic, Chinese, Czech, Dutch, German, Grench, Hebrew, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Turkish and more
Upgrade/ Provisioning
- Firmware upgrade via TFTP.HTTP/HTTPS, mass provisioning using TR 069 or encrypted XML configuration file, manual upload, USB upgrade
Power and Green Energy Efficiency
- Universal Power Adapter included Input: 100-240VAC: Output +5VDC, 1A (5W), 1500mA Li-ion battery, 150h standby time and 7.5h talk time
Physical
- Headset dimensions: 168.5 x 52.5 x 21.8mm
- Charger cradle dimensions: 76 x 73 x 81mm
- Handset weight: 161g
- Handset w/package (not including QIG) weight: 456g
Package Contents
- Headset unit, universal power supply, charger cradle, belt clip, 1 Li-ion battery, Quick Start Guide
Durability
- Drop safe from 1.2-meter height
Compliance
- FCC, CE, RCM, EAC
