Hybrid Class-H Power Amplifiers
- Category:ALL PRODUCTS,Best selling products,Commercial Audio,Low Impedance Power Amplifiers,New products,Pro Amplifiers
Hybrid Class-H Power Amplifiers

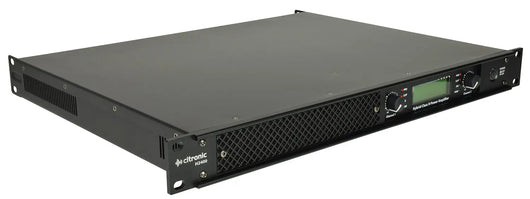

Lightweight power amplifiers in a 19" rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.
- Hybrid class-H circuit design
- Digitally controlled and monitored power section
- Switchable 120Hz low-pass crossover
- Backlit LCD status display
- Full internal thermal and overload protection
- Stable down to 2 Ohms (4 Ohms bridged)
- Weight7.0kg
- Power rms bridge @ 4 Ohms2400W (40ms burst 1kHz sine)
- Power rms bridge @ 8 Ohms1800W
- Power rms @ 2 Ohms2 x 1200W (40ms burst 1kHz sine)
- Power rms @ 4 Ohms2 x 900W
- Power rms @ 8 Ohms2 x 600W
- FuseT8AL 250V
- Dimensions483 x 361 x 44 mm (1U)
- Power supply200-240Vac, 50Hz (IEC)
- Amplifier : constructionHybrid Class-H
- ProtectionShort/open circuit, thermal, RF, DC fault, on/off mute, active inrush
- Frequency response20Hz-20KHz ±0.5dB
- CrossoverSwitchable full range or fixed 120Hz low-pass filter
- THD +N0.2%
- S/N ratio-95dB
- Damping factor>700
- Input sensitivity1.0V - 1.4V - 2.0V switchable
- Input impedance20KΩ (balanced),10KΩ (unbalanced)
Trade Information
- SKU172.125UK
- Barcode EAN5015972229934
- Tariff code8518500090
- Country of originChina (CN)
- Packaging typeBox Label
- Package dims80 x 530 x 570mm
- Package quantity1 unit
- Nett weight7.0000kg
- Gross weight7.5000kg
- Carton dims180 x 545 x 600mm
- Carton quantity2 units
- Carton weight17.80kg
