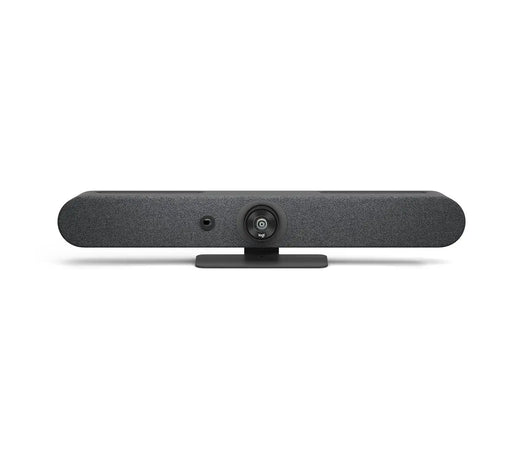

Logitech Rally Bar Mini - Graphite (960-001340)
Logitech Rally Bar Mini - Graphite (960-001340)
Simplicity meets versatility with the Logitech Rally Bar Mini (960-001340), Logitech’s most advanced all-in-one video bar for small meeting rooms and huddle spaces. With studioquality audio and video, AIdriven performance, and flexible deployment options, Rally Bar Mini sets a new standard for small room collaboration.
It’s remarkably simple to use, manage, and deploy at scale, delivering the capabilities of larger video bars like Logitech Rally Bar in a compact form factor for smaller spaces. With studio-quality audio and video, motorized pan and tilt, and AI-powered performance, Rally Bar Mini sets new standards for video collaboration.
Logitech Rally Bar Mini Key Features
- USB-Plug & Play
- All-in-one design
- RightSense technologies
- Room-filling sound
- Ultra-HD video
- AI Viewfinder
Scalable across hundreds or thousands of rooms, Rally Bar Mini offers clutter-free cable management, multiple mounting options, and flexible deployment modes. Plug and play with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.
General
- Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 4k
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 4X HD digital zoom
- Diagonal Field of View: 120°
- Horizontal Field of View: 113°
- Vertical Field of View: 80.7°
- Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical
Dimensions
- Height: 91.4 mm / 3.6 in
- Width: 719 mm / 2.36 ft
- Depth: 101 mm / 3.98 in
- Lens Depth: 18.5 mm / 0.73 in
- Weight: 4.03 kgs / 8.88 lbs
Speakers
- Woofer: 70mm / 2.7in
- Mid-range: 2x / 1.5in
- Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Sensitivity: 86+/-2dB SPL at 1W, ½ meter
- THD: 1kHz < 2%
- Speaker Sampling Rate: 48 kHz
RightSense Technologies
- RightLight™: Renders natural skin tones for each participant
- RightSight™: Maintains persistent room awareness and detects human figures to auto-frame participants
- RightSound™: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1dB @ 1Pa
- Microphone Data Rate Output: 48 kHz
- Pickup Range: 4.5m / 15 ft
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio Processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise Suppression: AI filter
- Add-on Mics: Supports up to 2 additional
- Rally Mic Pods
Interfaces
- HDMI Out: 2
- HDMI In: 1
- USB 3.0: 3x Type A, 1x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac (MIMO)
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control: Bluetooth® Low Energy
- Power & Cables
- Power Supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 127mm x 51mm x 30mm
- DC Cable: 1.5m / 4.9 ft
- AC Cable: 1m / 3.28 ft
- HDMI 1.4 Cable: 2m / 6.5 ft
- USB A to USB C 3.0 Cable: 2.2m / 7.2 ft
Environmental
- Operating Temperature: 0 to 40 °C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
Logitech Rally Bar Mini - Graphite (960-001340)
Simplicity meets versatility with the Logitech Rally Bar Mini (960-001340), Logitech’s most advanced all-in-one video bar for small meeting rooms and huddle spaces. With studioquality audio and video, AIdriven performance, and flexible deployment options, Rally Bar Mini sets a new standard for small room collaboration.
It’s remarkably simple to use, manage, and deploy at scale, delivering the capabilities of larger video bars like Logitech Rally Bar in a compact form factor for smaller spaces. With studio-quality audio and video, motorized pan and tilt, and AI-powered performance, Rally Bar Mini sets new standards for video collaboration.
Logitech Rally Bar Mini Key Features
- USB-Plug & Play
- All-in-one design
- RightSense technologies
- Room-filling sound
- Ultra-HD video
- AI Viewfinder
Scalable across hundreds or thousands of rooms, Rally Bar Mini offers clutter-free cable management, multiple mounting options, and flexible deployment modes. Plug and play with virtually any PC or Mac, or run supported video conferencing applications on the device without a computer.
Logitech Rally Bar Mini Technical SpecificationsGeneral
- Built-in Components: 6 beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 4k
Camera
- Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
- Pan: Motorized ±25°
- Tilt: Motorized ±15°
- Zoom: 4X HD digital zoom
- Diagonal Field of View: 120°
- Horizontal Field of View: 113°
- Vertical Field of View: 80.7°
- Total Room Coverage (field of view + pan and tilt): 163° horizontal x 110° vertical
Dimensions
- Height: 91.4 mm / 3.6 in
- Width: 719 mm / 2.36 ft
- Depth: 101 mm / 3.98 in
- Lens Depth: 18.5 mm / 0.73 in
- Weight: 4.03 kgs / 8.88 lbs
Speakers
- Woofer: 70mm / 2.7in
- Mid-range: 2x / 1.5in
- Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
- Sensitivity: 86+/-2dB SPL at 1W, ½ meter
- THD: 1kHz < 2%
- Speaker Sampling Rate: 48 kHz
RightSense Technologies
- RightLight™: Renders natural skin tones for each participant
- RightSight™: Maintains persistent room awareness and detects human figures to auto-frame participants
- RightSound™: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo
Microphones
- Frequency Response: 90Hz – 16kHz
- Sensitivity: >-36dBFS +/-1dB @ 1Pa
- Microphone Data Rate Output: 48 kHz
- Pickup Range: 4.5m / 15 ft
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio Processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise Suppression: AI filter
- Add-on Mics: Supports up to 2 additional
- Rally Mic Pods
Interfaces
- HDMI Out: 2
- HDMI In: 1
- USB 3.0: 3x Type A, 1x Type C
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac (MIMO)
- External Mic Input: Yes (proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and Rally Mic Pod Extension Cable)
- Remote Control: Bluetooth® Low Energy
- Power & Cables
- Power Supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 4.74A
- Power Supply Dimensions: 127mm x 51mm x 30mm
- DC Cable: 1.5m / 4.9 ft
- AC Cable: 1m / 3.28 ft
- HDMI 1.4 Cable: 2m / 6.5 ft
- USB A to USB C 3.0 Cable: 2.2m / 7.2 ft
Environmental
- Operating Temperature: 0 to 40 °C
- Storage Temperature: -40 to 70 °C
- Humidity: 10 to 95%
- BTU/hr: 57 idle, 64 in meeting
Security
- Full Disk Encryption: AES-128
- Data Encryption: Symmetric Keys, PKI
- Device Identity: Protected by device attestation
- Device Access: Authenticated using API
- Key Protection: Arm TrustZone, RPMP
