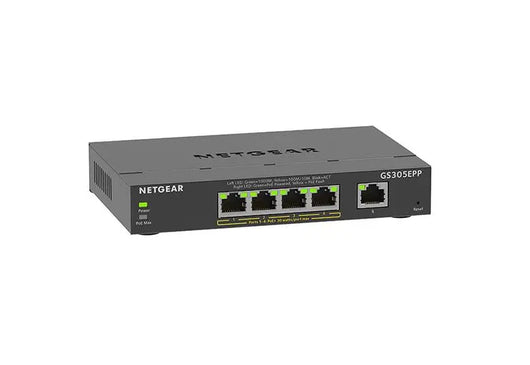

Netgear GS305EPP 5-Port Gigabit Ethernet High-Power PoE+ Smart Managed Plus Switch (GS305EPP-100UKS)

Introducing the Netgear GS305EPP PoE+ Gigabit Ethernet Smart Managed Plus Switch with 4 ports PoE+ and a total PoE budget of 120W to power PoE applications such as VoIP phones, IP cameras for surveillance, wireless access points and more. GS305EPP also includes basic and advanced network management features to help optimise the performance of business networks.

Netgear GS305EPP Key Features

Enable network configuration and management at the price point of unmanaged switches
Simple, yet useful network set-up on top of plug-and-play connectivity
Business-friendly and easy-to-use web browser-based management GUI
VLAN support for traffic segmentation
Quality of Service (QoS) for traffic prioritization
5-year Warranty — Includes 90-days free Technical Support via phone/email/chat
5x Gigabit Ethernet ports
4x PoE+ ports (120W)
Fanless silent operation
Desktop or wall mount
Plug-and-play connectivity
Easy-to-use web browser-based management GUI
VLAN support for traffic segmentation
QoS for traffic prioritisation

Netgear GS305EPP Technical Specification

General

Device Type: Switch - 5 ports - smart
Enclosure Type: Desktop, wall-mountable
Subtype: Gigabit Ethernet
Ports: 5 x 10/100/1000 (4 PoE+)
Power Over Ethernet (PoE): PoE+
PoE Budget: 120 W
Performance: Bandwidth: 10 Gbps
Capacity: VLANs supported: 64 ¦ Multicast groups: 128
MAC Address: Table Size 4K entries
Jumbo Frame Support: 9216 bytes
Routing Protocol: IGMPv2, IGMP, IGMPv3
Remote Management Protocol: DHCP
Features: Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, full duplex mode, Quality of Service (QoS), fanless, DHCP client, 192KB packet buffer, Class of Service (CoS), DiffServ Code Point (DSCP) support, cable test, Link Aggregation, rate limit, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), loopback detection, VLAN Tagging, port-based VLAN, port trunking, block unknown multicast, password protection
Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az
Status Indicators: Power, system, PoE, link/activity/speed, PoE max

Expansion/Connectivity

Interfaces: 4 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 1 x 1000Base-T RJ-45

Power

Power Device: External power adapter

Miscellaneous

Included Accessories: Rubber feet, wall mounting kit
MTBF: 853,770 hours
Compliant Standards: CSA, VCCI, BSMI, EN55024, KC, FCC Part 15 Class B, ACMA, EN 55032
Localisation: United Kingdom

Dimensions and Weight

Width: 15.8 cm
Depth: 10.1 cm
Height: 2.7 cm
Weight: 400 g

Environmental

Min Operating Temperature: 0 °C
Max Operating Temperature: 40 °C
Humidity Range Operating: 90% (non-condensing)
Min Storage Temperature: -20 °C
Max Storage Temperature: 70 °C
Humidity Range Storage: 95% (non-condensing)
