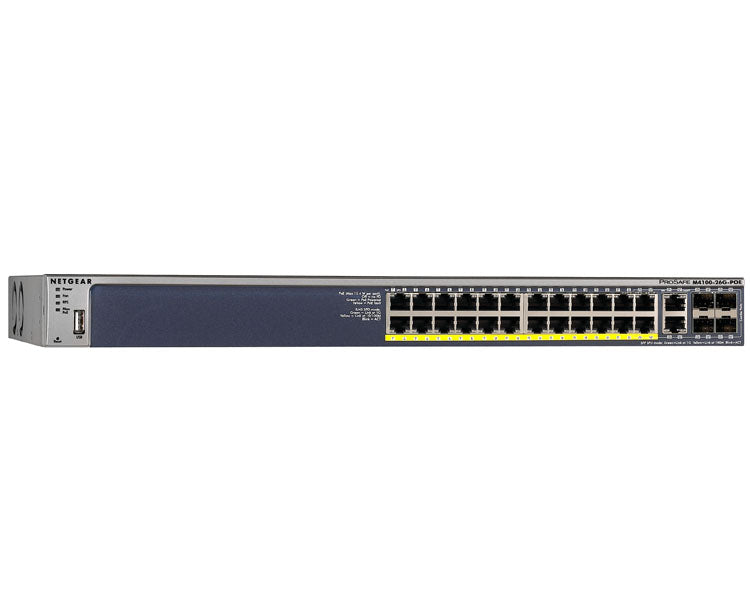

Netgear ProSafe GSM7226LP-100NES - M4100-26G-POE Managed Switch

The Netgear ProSafe M4100-26G-POE Managed Switch is ideal for all organisations considering reliable, affordable and simple access layer switching with CLI, advanced scripting capabilities and Layer 3 routing.

Netgear ProSafe M4100-26G-POE Managed Switch Key Features

  • Broad portfolio of access layer solutions, ranging from 12 ports Fast Ethernet to 50 ports Gigabit Ethernet
  • 802.3af PoE and 802.3at PoE+ best fit, ranging from 120W to 1,440W power budget per switch
  • IPv4 routing in Layer 2+ package (L3 static routing) with IPv4/IPv6 ACLs and QoS
  • High value L2/L3 tables with 16K MAC, 512 ARP/NDP, 9K jumbo frames, 1K VLANs, 64 static L3 routes
  • Redundant power supply option for uninterruptible operation (RPS)

As a cost effective component of converged voice, video data and network solutions, the Netgear ProSafe M4100-26G-POE Managed Switch delivers a secure edge in commercial buildings and campus LAN environments: PoE (802.3af) and PoE+ (802.3at) versions of M4100 series are perfect for Wireless access points, IP telephony and IP surveillance deployments.

Layer 2+ with static routing

The M4100-26G-POE comes with Port-based / VLAN-based / Subnet-based "static routing" Layer 2+ versions and L3 fixed routes to the next hop towards the destination network are added to the routing table and the L3 routing is wire-speed in M4100 series hardware with 64 static routes (IPv4).

Engineered for convergence

The Automatic multi-vendor Voice over IP prioritisation is based on SIP, H323 and SCCP protocol. The M4100-26G-POE also have Voice VLAN and LLDP-MED for automatic IP phones QoS and VLAN configuration and Advanced classifier-based hardware for L2, L3, L4 security and prioritisation. In addition, it includes Advanced Multicast filtering with IGMP and MLD snooping and querier modes.

High value performance and IPv6 ready

The M4100-26-POE features 16K MAC addresses; up to 100Gbps switching fabric; 9K jumbo frames; Green Ethernet as well as IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - DiffServ).

Netgear ProSafe M4100-26G-POE Managed Switch- Technical Specification

Physical Interfaces

  • Auto-sensing RJ45 10/100/1000: 26
  • Auto-sensing SFP ports 100/1000Base-X: 4 (shared)
  • Storage Port: 1 x USB Firmware, Configuration Files
  • Power Supply: Fixed, internal
  • RPS/ EPS connector: 1
  • Console port (selectable): Serial RS232 DB9, Mini-USB
  • Physical security: 1 Kensington Lock Slot
  • Total Gigabit Port Count: 26 ports total
