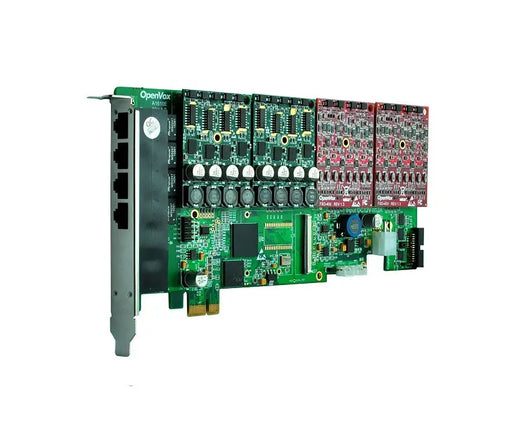

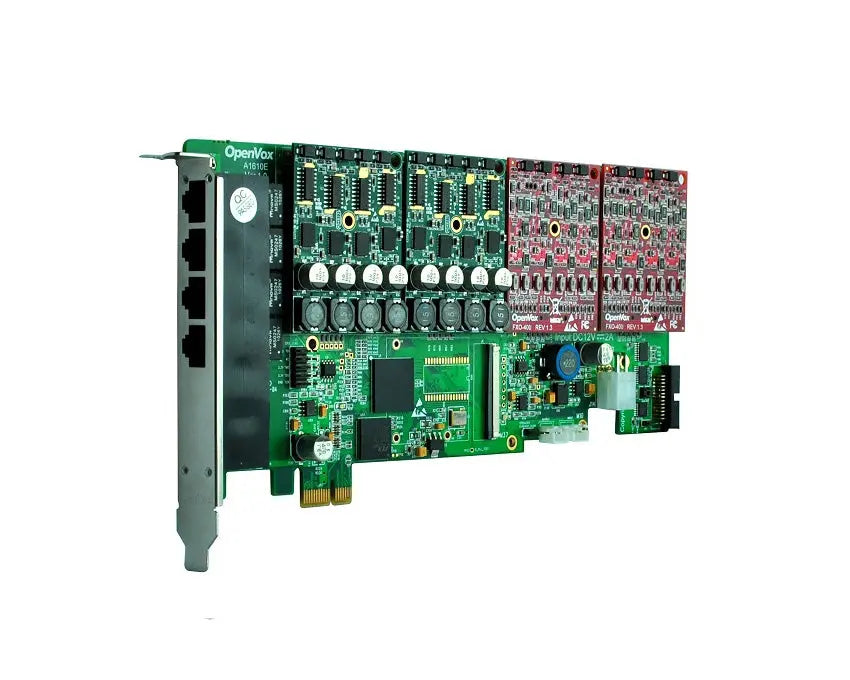

OpenVox A1610E 16 Port Analog PCI Express card
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
Categories

OpenVox A1610E 16 Port Analog PCI Express card

Available:In Stock
£188.64

OpenVox A1610E 16 Port Analog PCI Express card

Please Note: The OpenVox A1610E contains 4 module banks. Each bank supports one analog interface. The module banks may be filled with up to 4 FXO or FXS modules enabling the creation of any combination of ports. Please select your required modules above.
Please Note: This is a PCI Express Card. Please make sure your motherboard/server is compatible with this product.

The OpenVox A1610E is a 16 Port Analog PCI Express card. The A1610E can be used for connecting analog telephones and analog POTS lines through a PC. It delivers the superior voice quality on both FXO and FXS interfaces in all 16 ports.

OpenVox A1610E Highlights

  • Adjustable Interrupt Routing Design
  • Interrupts Frequency Adjustment
  • Up to 16 Simultaneous PSTN Calls (Per PCIe Slot)
  • Compatible with All Commercially Available Motherboards
  • 3-Month “No Question Asked” Return Policy
  • Lifetime Warranty

The A1610E  works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications

    OpenVox A1610E01 - Technical Specifications

    Key Benefits

    • Modular Design: Up to  4 FXS-400, FXO-400 or mixed FXS-400/FXO-400 ports per card. Each port can be setup as FXO-400 or FXS-400 via plug different module in it.
    • Firmware accelerate I/O access achieve high stability and highly decreased cpu payload.
    • Bus Master: Operation speed up to 132Mbytes/sec
    • FPGA design: Firmware can be field upgraded
    • Scalable: Just add additional cards to extend system.
    • World Wide Usable: Configurable line interface to meet global telephone line interface requirements.
    • High quality with low price.
    • Application ready: use Asterisk® to build your IP-PBX/Voicemail system.

    Features

    • Support PCI 2.2 with both 3.3 V and 5 V PCI slots.
    • Power consuming (12V): 57.03 W (with full 4 p ort FXS-400 modules),7.83W(with full 4 port FXO-400 modules).
    • SMEC power consuming: 3.83W
    • Industry standard full size length PCI card.
    • Opens source driver working with zaptel and dahdi.

    Target Applications

    • Channel Bank Replacement / Alternative
    • Small Office Home Office (SOHO) applications
    • Small and Medium Business (SMB) applications
    • Gateway Termination to analog telephones/lines

    Services and Features

    • Caller ID and Call Waiting Caller ID
    • ADSI Telephones
    • Loopstart Signaling Support

    Specifications

    • Up to 16 ports through a combination of FXS400 and FXO400 modules
    • Full-length analog card
    • Up to 4 quad FXS or FXO modules
    • RJ45 connector
    • PCI Express 1.0
    • FPGA design, upgradeable firmware onsite
    • Power: 7.83W Minimum, 57.03W Maximum
    • Operation temperature: 0°C to 50 °C
    • Storage temperature: -40°C to 125°C
    • Size: 21.9*11.6*1.8cm
    • Weight: 128g

      Operating Systems

      • Linux (all versions, releases and distributions from 1.0 up)

      Minimum Hardware Requirement

      • 800-Mhz Pentium III
      • 128MB RAM
      • Available PCI Slot
