OpenVox A810E PCI Express Asterisk Card

Please Note: The OpenVox A810E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 FXO or FXS modules enabling the creation of any combination of ports. Please select your required modules above.
Please Note: This is a PCI Express Card. Please make sure your motherboard/server is compatible with this product.

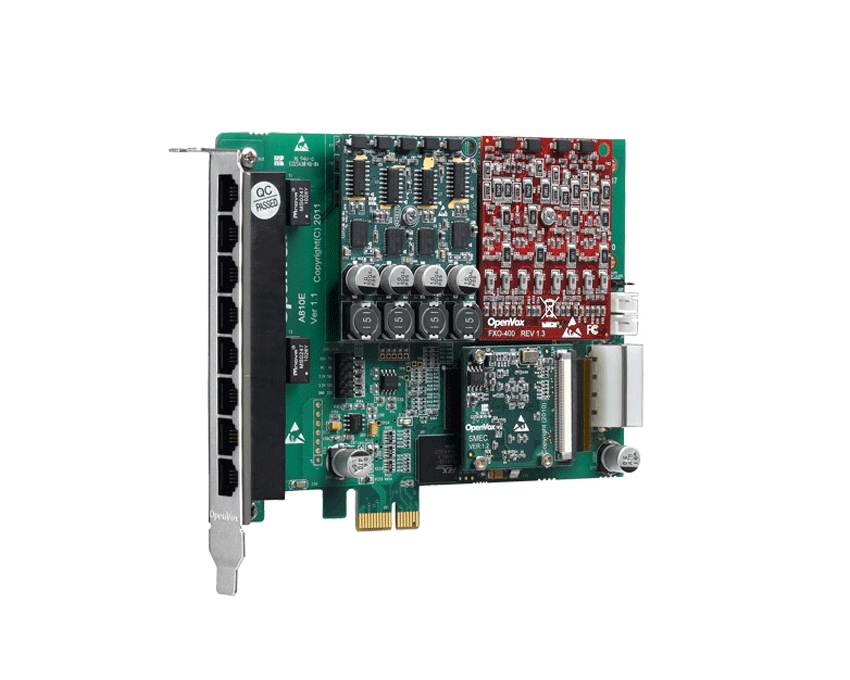

The OpenVox A810E PCI Express Asterisk Card can be used for connecting analog telephones and analog POTS lines through a PC. It takes full advantage of Octasic® Hardware Echo Cancellation Module to deliver the superior voice quality on both FXO and FXS interfaces in all 8 ports.

Key Features and benefits of the OpenVox A810E

  • Caller ID and Call Waiting Caller ID
  • ADSI Telephones
  • PCI Express Card
  • Loopstart Signaling Support
  • Up to 8 Simultaneous PSTN Calls (Per PCIe Slot)
  • Interchangeable FXS and FXO modules
  • Scalable: Just add additional cards to extend the system.

The A810E contains 2 module banks. Each bank supports one analog interface. The module banks may be filled with up to 2 quad-FXO or quad-FXS modules enabling the creation of any combination of ports. Scaling of an analog card solution is accomplished by simply adding additional cards.

The A810E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

Technical Specifications
  • Up to 8 ports through a combination of FXS400 and FXO400 modules
  • Full-length/Half-length analog card
  • Up to 2 quad FXS or FXO modules
  • RJ11 connector
  • FPGA design, upgradeable firmware onsite

Power

  • 7.83W Minimum, 30.43W Maximum

Operating temperature

  • 0°C to 50°C

Storage temperature

  • -40°C to 125°C

Interface

  • PCI-E

Dimension

  • 136.3mm*111.2mm*16mm

Minimum Hardware Requirement

  • 800-Mhz Pentium III
  • 128MB RAM
  • Available PCI-E/PCI Slot

Target Applications

  • Channel Bank Replacement / Alternative
  • Small Office Home Office (SOHO) applications
  • Small and Medium Business (SMB) applications
  • Gateway Termination to analog telephones/lines

Optional Octasic® DSP Echo Cancellation Module — EC2032

  • 1024 taps/128 ms tail/channel (on all channel densities)
  • Octasic® music protection
  • Automatic level control (G.169)
  • Field upgradeable algorithm
  • V.25 / V.8 answer tone
  • DTMF as per Q.24
  • No CPU load as a result of echo cancellation.
  • Does not increase the physical size of the card, and no additional slot is required
  • EC2032 (SMEC V1.1) power: 3.83W

Operating Systems

  • Linux (all versions, releases and distributions from 1.0 up)

Certifications

  • RoHS Compliant
  • Certificates: FCC, CE and CS-03

Weight
