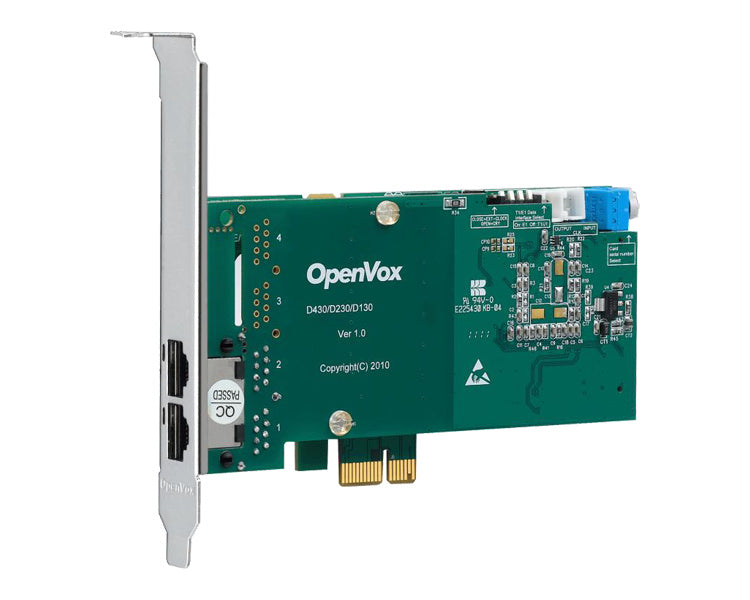

OpenVox DE230E 2 Port T1/E1/J1 PRI PCI Express card + EC2064 module (Advanced Version Low Profile)

OpenVox DE230E is now the leading 2 port T1/E1/J1 PCI card in the open source industry. It supports up to 64 channels in E1 mode or 48 channels in T1/J1 modes.

Industry 1st adjustable interrupt routing design
Interrupts frequency adjustment
Compatible with All Commercially Available Motherboards
2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
3-Month "No Questions Asked" Return Policy
Lifetime warranty

Overview

The DE230E is an upgrade product of the D210P. It supports T1, E1, and J1 environments and is selectable on a per-card or per-port basis. DE230E is supposed to be the most advanced 2 port T1/E1/J1 asterisk® card with superior quality in the open source community. The leading innovation ensures users to adjust the interrupts frequency to reduce the CPU load up to 70% and adjust the interrupt number to avoid interrupt number sharing or conflict.

DE230E supports industry standard telephony and data protocols, including Primary Rate ISDN (both N. American and Standard Euro) protocol families for voice, PPP, Cisco, HDLC, and Frame Relay data modes. Both line-side and trunk-side interfaces are supported.

DE230E works with Asterisk®, Elastix®, FreeSWITCH™, PBX in a Flash, trixbox®, Yate™ and IPPBX/IVR projects as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications.

OpenVox DE230E - Technical Specifications

Target Applications

Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
"Meet-Me" Bridge Conferencing
Calling Card Platforms
VoIP Gateways (support SIP, H.323, and IAX)
Legacy PBX/IVR Services
Voice/Data Router (replace expensive routers)
PRI/Switch Compatibility - Network or CPE

Technical Specifications

2 T1/E1/J1 ports with PCI interface for high performance voice and data applications
Half-length PRI card
RJ48 connector
Low profile option
32 bit 33MHz PCI and fully PCI 2.3 compliant
32 bit bus master DMA data exchanges across PCI interface at 132 Mbytes/sec
Autosense compatibility with 5 V and 3.3 V PCI busses
FPGA design, upgradeable firmware onsite
Power: 2.3W Minimum, 3.5W Maximum at 3.3 V or 5 V.
Operation temperature: 0°C to 50°C
Storage temperature: -65°C to 125°C
Dimension: 2U Form factor: 12*6.4*1.8cm
Weight: 92g

PRI Switch Compatibility

EuroISDN (PRI or PRA) - Q.931/Q.921
Network or CPE
AT&T 4ESS
National ISDN 2
CAS Voice Modes
DMS 100
Lucent 5E

Operating Systems

Linux (all versions, releases and distributions from 1.0 up)

Minimum Hardware Requirement

800-Mhz Pentium III
128MB RAM
Available PCI Slot
