OpenVox IX160 Series IP PBX

Available:In Stock

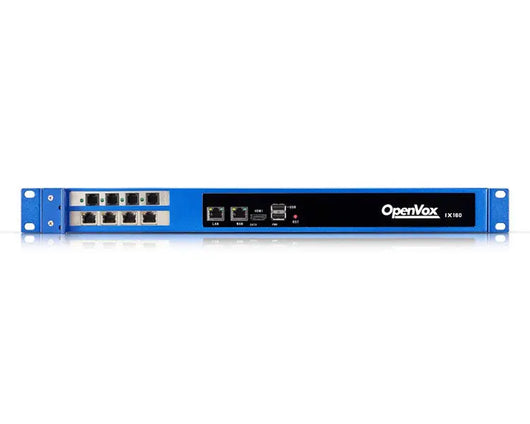

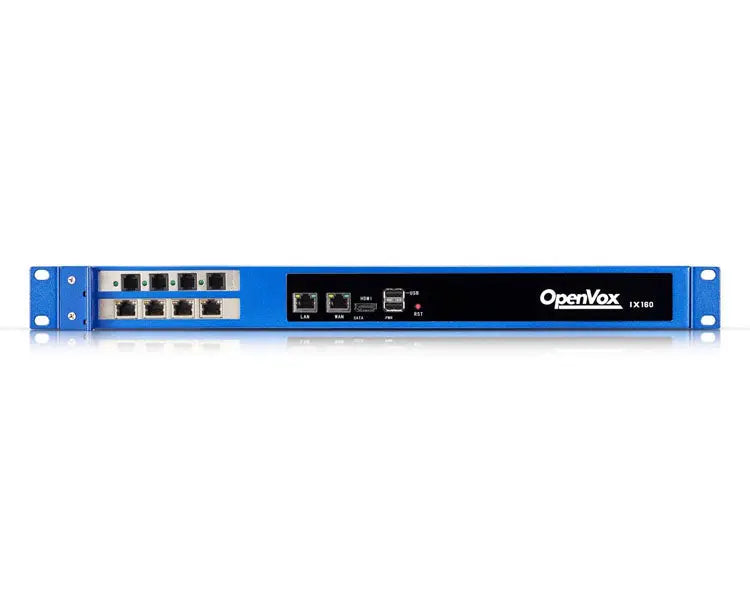

The OpenVox IX160 is a standard 19” 1U high-performance PBX solutions. Designed and rigorously tested for optimal performance, this appliance allows users to integrate up to 2 pieces of OpenVox PCI-E telephony interface cards, with any combinations of FXS/FXO, BRI, E1/T1/J1 or transcoding interfaces. The IX160 adds support for motherboards to provide more powerful performance and can handle up to 600 concurrent calls and hundreds of user extensions. In addition, IX160 can integrate a variety of high-definition audio/video codecs, bringing users a high-fidelity, high-definition audio/video call experience.

OpenVox IX160 Key Features

  • A standard 19” 1U IP PBX
  • 1.83GHz Intel® Celeron® N2930
  • Up to 600 concurrent calls
  • Optional Pre-loaded Free Open Source IPPBX System
  • Combination of FXS/FXO, BRI, E1/T1/J1 Interface
  • PRI/SS7/R2 to SIP Gateway
  • PRI/SS7/R2/BRI/FXS/FXO Signaling Converter
  • PRI/SS7/R2 TDMoE Gateway
  • Flexible Applications Selection (IPPBX or Firewall)
  • Zero Touch IP Phones Auto-Provisioning
  • User Control Panel

The IX160 supports comprehensive protocol conversion, including SIP, IAX2 protocols in IP side and BRI, PRI, SS7, R2 in CPE side. Taking the full advantages of open source platform, the IX160 will be preloaded with OpenVox UC system, Issabel, FreePBX, VitalPBX, PBX in a Flash, Elastix® IPPBX software. The default pre-installed OpenVox UC system makes the deployment, configuration, and use of a PBX system ever easier. Getting started is a breeze with a user-friendly GUI. Powerful IX devices allow enterprises to grow while minimizing communication costs.

OpenVox IX160 is a risk-free solution with built-in Redundant Power Supply (RPS) and Uninterruptible Power Supply (UPS) that keeps your system and data away from damage or lost caused by unexpected power failure. The optional hardware RAID 1 support provides better data backup for your system. When RAID1 is installed, thus users can see the status of the storage devices and be alerted when hard drive(HDD/SSD) is crashed, then simply replace a backup hard drive ASAP.

OpenVox IX160 Technical Specifications


  • Max Analog Ports: 48
  • Max BRI Ports: 8
  • Max E1/T1/J1 Ports: 4
  • Recommended User Capacity: 200 Users
  • Max Concurrent Calls*:
    - 600 Concurrent Calls with G.711 Codec
    - 200 Concurrent Calls with G.729 Codec
  • Recommended Call Capacity: 120 Calls
  • Protocol: SIP (RFC3261), IAX2
  • Transport Protocol: UDP, TCP, TLS, SRTP
  • Codec: G711 (alaw/ulaw), G722, G723.1 G726, G729, GSM, ADPCM, iLBC, H263, H263P, H264
  • DTMF: In-band, RFC2833, SIP INFO
  • IP Services: Static IP, DHCP, VPN, Firewall, PPPoE, Bridge
  • Firewall: Yes
  • T.38 Fax: Yes
  • CPU: 1.83GHz Intel® Celeron® N2930
  • RAM: Up to 8GB DDR3L 1333
  • Storage: MSATA SSD and 2.5 inch SATA HDD
  • RAID: Yes (Optional)
  • Mini PCI-E: 2
  • NIC: 2* 10/100/1000M
  • UPS: Yes (Optional)
  • Power Supply: 100-240V AC
  • Redundant Power Supply: Yes (Optional)
  • Display: HDMI
  • LCD Display: No
  • USB: 2 USB2.0
  • Power Consumption: 20W
  • Operating Temperature: 0°C to 50 °C
  • Storage Temperature: -40 °C ~ 125 °C
  • Humidity: 10 ~ 90% NON-CONDENSING
  • Dimension: 440*370*66.7mm
  • Net Weight: 4.13kg
  • Warranty: 2 Years
*Maximum number of calls tested under laboratory conditions

    Combination Options

    Users can choose two module accessories to customise

    • A400E/A(E)810E/A(E)1610E/A(E)2410E
    • B(E)200E/B(E)400E
    • D(E)130E/D(E)230E/D(E)430E/D(E)830E/D(E) 1630E
    Except A400E, all compatible cards can be applied together with EC module.

    IX160/160P supports combination of two cards for example:
    • A(E)1610E + B(E)400E
    • D(E)430E + B(E)400E
    • D(E)430E+A(E)2410E
    • D(E)430E + A(E)1610E
    • A(E)810E + A(E)810E


    • G.711(a-law &μ-law), G.722, OPUS, AMR-NB/WB, SILK, G723.1, G726, G729, GSM, ADPCM, iLBC, H263, H263P, H264, VP8, etc.
    • Support SIP & IAX2
    • Echo canceller
    • Simple and Convenient Configuration via Web GUI
    • User Portal
    • Extension User Privileges
    • System Administrators Monitor
    • Event Notification
    • Support Backup/Restore
    • Remote Management
    • Hot Standby
    • System resource monitoring
    • Network configuration
    • Support VLAN
    • Support Static Route
    • DHCP server for dynamic IP
    • Support Fail2ban
    • Secure communications (SRTP & TLS encryption)
    • Support Multiple VPN protocols including OpenVPN, L2TP, N2N, SSTP
    • Import/Export Extensions
    • Support SIP Forking
    • Call Transfer/Forwarding/Waiting
    • Follow-Me (Find me calling)/Ring Group/Queue
