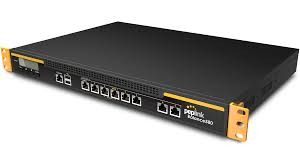

Peplink Balance 580 Load Balancing Router
![Peplink Balance 580 Load Balancing Router]()
![Peplink Balance 580 Load Balancing Router]()
Peplink Balance 580 - Technical Specifications
Peplink Balance 580 Load Balancing Router
Available:In Stock
£4,592.40
Peplink Balance 580 Load Balancing Router
The Peplink Balance 580 is a reliable, cost-effective, and full-featured internet Link Load Balancing solution that caters to a diverse range of business environments. The Balance 580 provides the flexibility to load balance between multiple connections for increasing Internet bandwidth, reliability, uptime, and reducing the cost of having expensive leased lines or MPLS.
Peplink Balance 580 Key Features
- Recommended users: 300-1000
- Speedfusion bandwith bonding
- Built-in WLAN controller
- LAN ports: 3 (GbE)
- WAN ports: 5 (GbE)
- USB WAN modem port: 1
- 3G/4G Modem Support
The user-friendly Web Admin and Reporting Service on the Balance 580 assist network management and make this unit perfect for medium-sized businesses.
Peplink Balance 580 - Technical Specifications
Hardware
- LAN ports: 3 (GbE)
- WAN ports: 5 (GbE)
- USB WAN modem port: 1
- Dimensions: 1.72" x 16.8" x 10.7"
- Weight: 7.7 lbs
- Power Requirements: Universal Input 100V to 240V AC
- Power Consumption: 50W
- 1U Rackmount
- High Availability
Capacity
- Recommended users: 300-1000
- Router throughput: 1.5Gbps
Wan
- Support for PPPoE, Static IP, DHCP
- WAN Link Health Check
- PING
- DNS Lookup
- HTTP
- Bandwidth Allowance Monitor
- IPv6 Support
- USB 4G/3G Modem Support
Lan
- Extended DHCP Option
- DHCP Reservation
- Support for Dynamic DNS services
- changeip.com
- dyndns.org
- no-ip.org
- tzo.com
- DNS-O-Matic
- DNS Proxy for LAN Clients
Load Balancing
- Intelligent Failover
- Session Persistence
- Per-Service Load Distribution
- Multiple Algorithms:
- Weighted
- Enforced
- Persistence
- Priority
- Overflow
- Least Used
- Lowest Latency
Complete VPN Solution
- SpeedFusion Bandwidth Bonding
- Number of SpeedFusion Peers: 50
- SpeedFusion Throughput: 200Mbps
- SpeedFusion Features:
- Site-to-Site VPN
- Bandwidth Aggregation
- Intelligent Failover
- 256-bit AES Encryption
- Pre-shared Key Authentication
- Dynamic Routing
- PPTP VPN Server
- Recommended PPTP VPN Users: 100
- RADIUS, LDAP Authentication
- IPsec VPN (Network-to-Network)
- Number of IPsec Tunnels: 50
- IPsec only supports connection with Cisco, Juniper, Peplink or Pepwave devices
- Number of IPsec Tunnels: 50
Advanced QoS
- User Groups
- Bandwidth Reservation
- Individual Bandwidth Limit
- Application Prioritization
- By User Groups
- SIP, HTTPS, VPN QoS
- Custom Application QoS
Networking
- NAT and IP Forwarding
- Static Routes
- Port Forwarding
- Many to One, One to One NAT
- NAP Pool
- SIP ALG, H.323 ALG
- UPnP, NAT-PMP
- WINS Server
WLAN Controller
- Support for Pepwave AP Series
- Customisable Captive Portal
- Auto AP Discovery
- Auto AP Firmware Management
- AP Profile Configuration
DNS
- Built-in Authoritative DNS 7
- Support for A, CNAME, NS, MX, PTR, SOA, SRV, TXT records
Security
- DoS Prevention
- Stateful Firewall
- Web blocking
Device Management
- Web Administrative Interface
- Command Line Interface
- InControl Cloud Management
- Email Notfication
- Active Client & Session Lists
- Bandwidth Usage Statistics
- Syslog
- SNMP v1, v2c and v3
Support and Warranty
- 1-Year Standard Warranty
- 1-Year Firmware Upgrade
Certifications
- CE
- RoHS
- FCC
