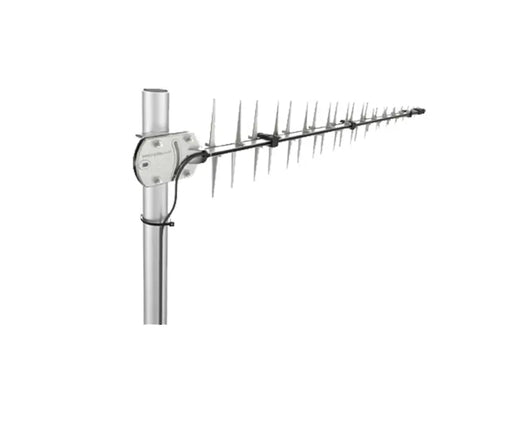

Poynting Antennas LPDA-0092-LTE 2x High Gain Directional Antennas with Bracket
Poynting Antennas LPDA-0092-LTE 2x High Gain Directional Antennas with Bracket
The LPDA-0092-LTE is a high-gain wideband directional antenna that covers all international cellular, mobile and wireless data bands including GSM 900/ GSM1800/UMTS/LTE bands as well as extended cellular and WiMAX bands such as European/USA “Digital Dividend bands” and 2.3- 2.7GHz licensed and unlicensed data bands.
Its configuration is suitable for various wireless communications systems. This antenna is unique in its combination of ultra wide-band operator with a consistent high-gain performance. It has been successfully used in extreme weather environments in Africa and Europe with close to zero failures. A firm favorite, in any area where operators are having signal challenges. It is ideal for any application using the GSM network (LTE/ HSPA/3G/EDGE/GPRS).
LPDA-0092-LTE Key Features
- Futureproof wideband LTE antenna and Wi-Fi operational frequencies
- Compatible with 4G, 3G and 2G technologies
- Improves mobile network subscriber's user experience
- Increased connectivity stability
- Weather- and vandal resistant
- Used in extreme weather environments
- High gain directional antenna
- Easy alignment with main beam around 50 degrees wide
- Broadband covering multiple operational frequencies
- Pole mountable
- Lightweight
- Water-resistant
- Tremendous improvement on reliability of wireless data
- Four year track record in all climate conditions from Nordic to desert to tropical
- Urban and rural areas
- Antenna of choice for rural areas due to high gain
- Poor data signal reception (indoor or outdoor)
- Slow data transmission connection
- Unstable connection
- Increase system transmission reliability
- LTE fringe areas (close to an LTE area, but just out of reach)
- Network operator flexibility - as the antennas is wideband, a new antenna is not needed per network operator - works on most networks
Poynting Antennas LPDA-0092-LTE Technical Specifications
Electrical Specifications
- Frequency Bands: 698 - 3800 MHz
- Gain (Max): 11 dBi
- VSWR:
- < 2:1 @ 698 - 960 MHz
- < 2:1 @ 1710 - 2700 MHz
- < 3.2:1 @ 3400 - 3800 MHz
- Feed Power Handling: 10 W
- Input Impedance: 50 Ohm (nominal)
- Polarisation: Linear
- Cable Loss:
- 0.35dB/m @ 900 MHz
- 0.53dB/m @ 2000 MHz
- 0.6dB/m @ 2500 MHz
- 0.83dB/m @ 3500 MHz
- DC Short: Yes
- Cable Length: 7m ±5%
- Cable Type: HDF 195
- Connector: SMA (m)
Environmental Specifications
- Wind Survival: <160 km/h
- Temperature Range (Operating): -40°C to +70°C
- Environmental Conditions: Outdoor
- Operating Relative Humidity: Up to 98%
- Storage Humidity: 5% to 95% - non-condensing
- Storage Temperature: -40°C to +70°C
