PPX Series Power Amplifiers

PPX Series Power Amplifiers

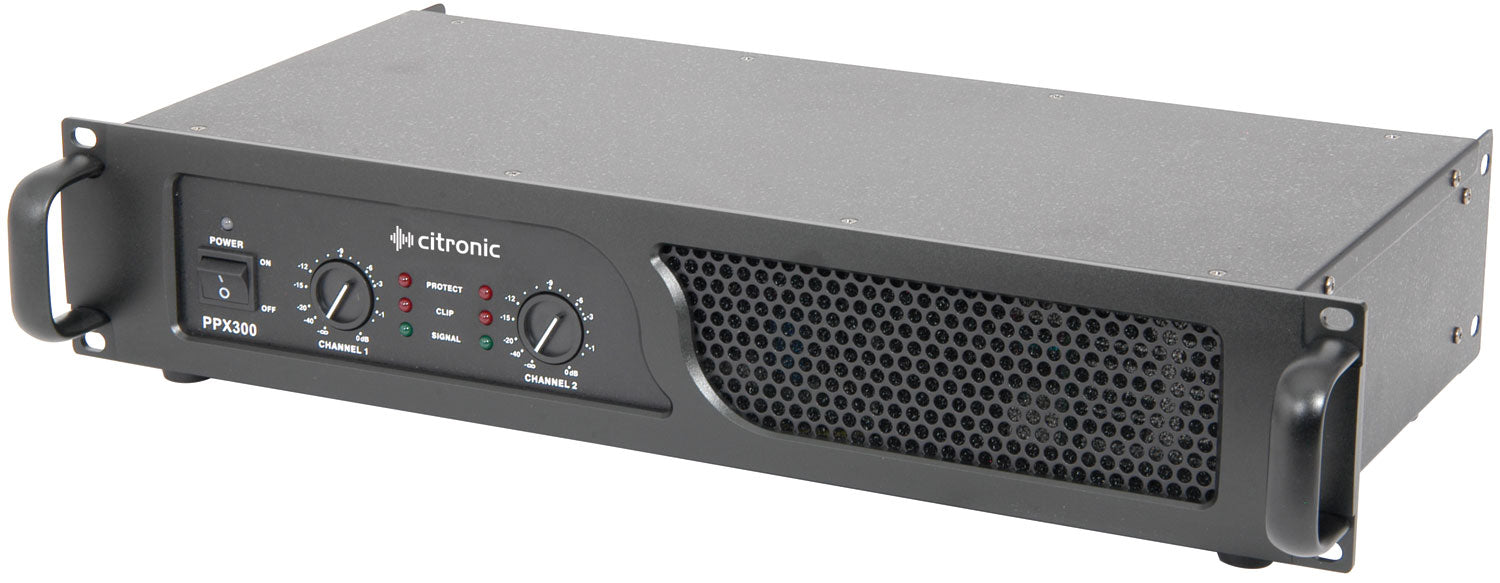

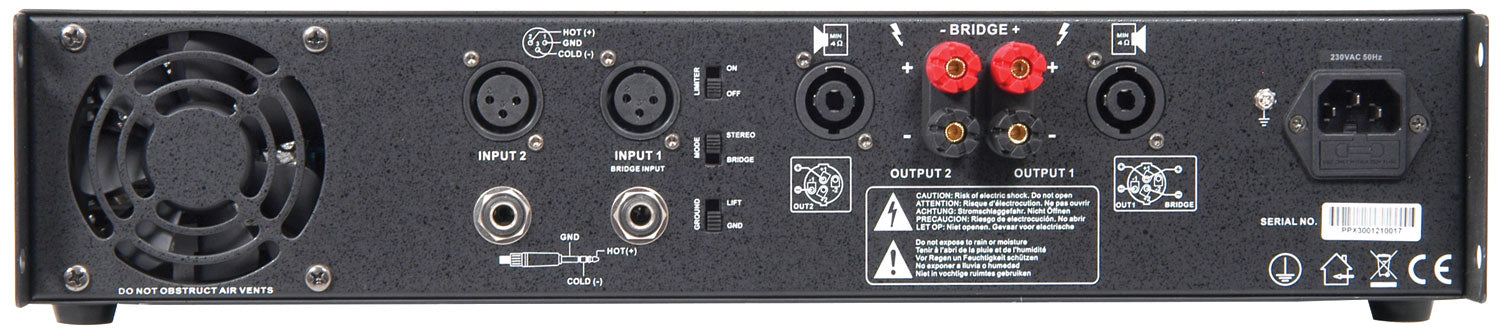

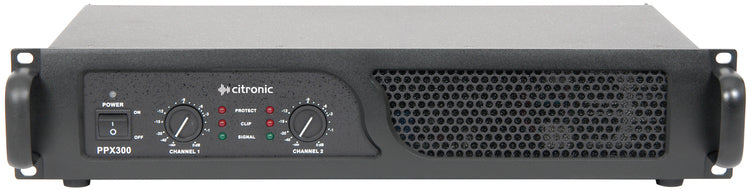

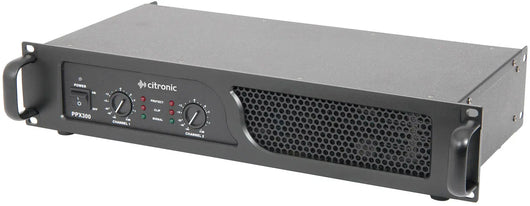

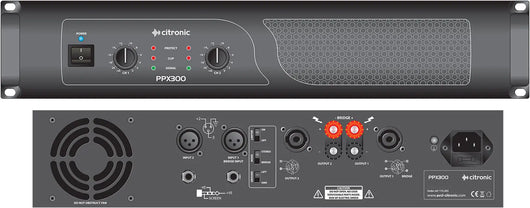

19" rackmount 2U power amplifiers with fan cooling and output protection. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. Switchable ground lift, bridge mode and clip limiter.

• Bridge mode for high power mono operation
• Removable handles for low profile install
• Switchable clip limiter

• Weight8.2kg
• Dimensions88 x 483 x 266mm (2U)
• Power rms bridge @ 8 Ohms300W
• Power rms @ 8 Ohms100W + 100W
• Power rms @ 4 Ohms150W + 150W
• Power supply240Vac, 50Hz (IEC)
• ControlsLevel channel 1, level channel 2, ground, mode, clip limiter
• Input impedance20k ohms
• Frequency response5Hz - 50kHz
• Total harmonic distortion0.05%
• Slew rate40V/us
• Damping factor>400
• ProtectionShort-circuit, overload, D.C. and thermal protect
