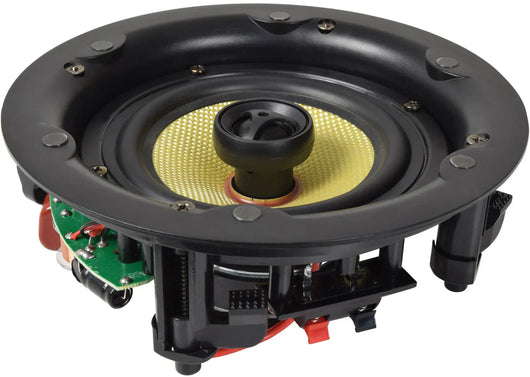

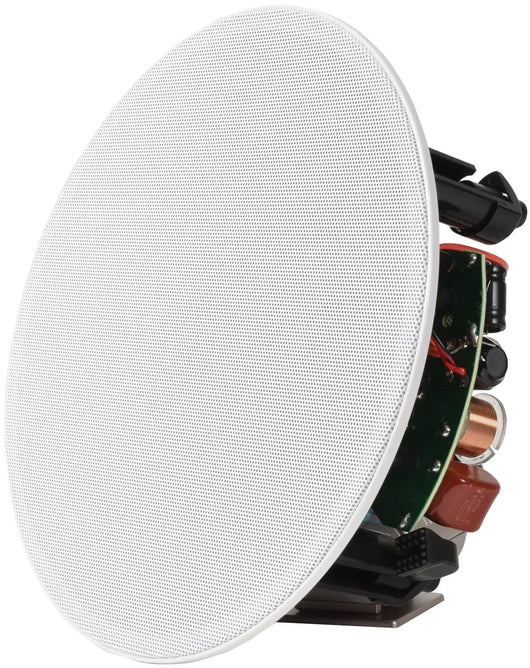

Premium KV-series Ceiling Speakers

Premium KV-series Ceiling Speakers

Premium quality ABS 2-way ceiling speakers with magnetic frameless grille for high quality music reproduction in a sleek design. High energy glass-aramid main drivers are combined with a coaxial dome tweeter and coupled to a wave guide baffle for optimum sound dispersion. Each KV speaker is served by a full 2-way passive crossover network, providing an accurate and efficient frequency balance. Designed without compromise to deliver maximum power and quality from this class of ceiling speaker.

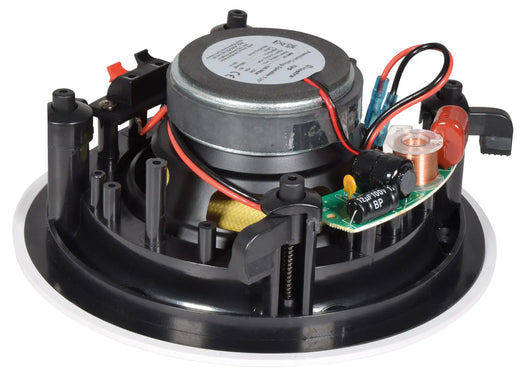

• Full 2-way passive crossover

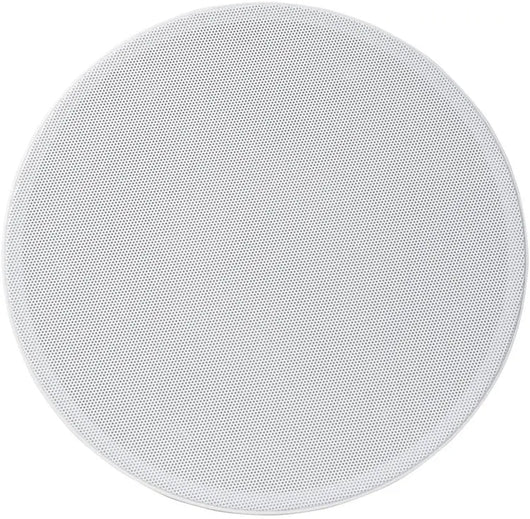

• Magnetic low profile steel grille
• Heavy duty glass-aramid cone
• Braced ABS basket with integral wave guide
• Supplied individually

• Weight1.054kg
• Dimensions80 x 206mmØ
• Mounting depth80mm
• Cutout180mmØ
• Max. SPL100dB
• SPL @ 1W/1m89dB
• Frequency response80Hz - 20kHz
• Power handling : rms20W
• Magnet weight270g
• Main driver135mmØ (5.25") glass-aramid diaphragm
• Power handling : max40W
• ConstructionABS basket & powder coated steel grille
• Impedance8 Ohms
• Dispersion angle120°
• HF driver25mmØ (1") ASV diaphragm
