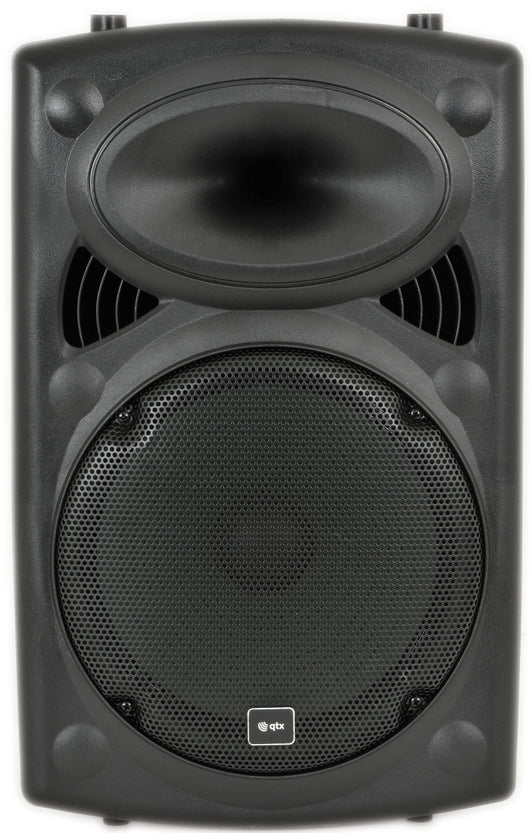

QR Series Portable Powered PA Units

QR Series Portable Powered PA Units

A compact, trolley-style wheeled portable PA unit with a top-mounted retractable pull handle and side-mounted carry handle. Versatile input options include 2 VHF wireless microphones (included), 2 further mic inputs (one can also be used for guitar), mini jack (for phones, tablets, laptops and mp3 players), and RCA in/out (ideal for DJs). An internal media player works directly from SD card or USB memory stick, and a switchable VCV ‘voiceover’ feature automatically lowers the volume of background music when the mics are used. A 35mm pole mount enables the unit to be used on a stand. Mains or internal battery power (up to 8 hours).

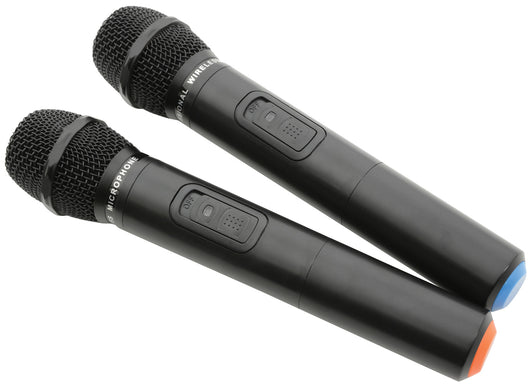

• 2 VHF wireless microphones included

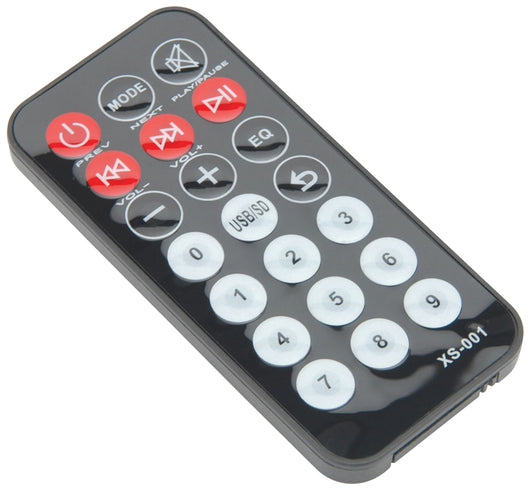

• Inbuilt media player with SD/USB inputs and IR remote control
• Mains or internal rechargeable battery power (up to 8 hours)
• Active inbuilt amplifier
• Mic, guitar, line-level aux (mp3) and RCA inputs
• Pull/carry handles and wheels for easy transit
• Switchable VCV ‘voiceover’ feature; lowers music for vocals
• Echo effect for microphones
• 35mm stand/pole mount
• Optional neck-worn transmitters available

• Weight14.0kg
• Dimensions570 x 350 x 310mm
• SPL @ 1W/1m100dB
• Frequency response48Hz - 20kHz
• Power handling : rms200W
• Main driver300mm (12'')
• Power supply220-240Vac, 50/60Hz (IEC) / external 12Vdc / internal battery
• Power consumption max.100W
• HF driver25mm (1'') Titanium compression driver
• Battery lifeUp to 8 hours
• ControlsVolume, Bass, Treble, Echo, Mic volume, VCV & VHF mic levels
• Inputs2 wired mic (jack) and aux (RCA & 3.5mm)
• Wireless microphone frequencies174.1MHz + 175.0MHz
• Amplifier : output50 + 50Wrms
