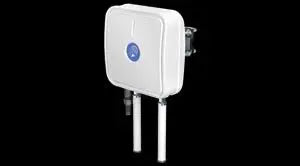

QuWireless QuMax for RUTX11 Integrated LTE Directional, WiFi Dual Band, GPS and Bluetooth Antennas All In One (AX11M)
Exploring the QuWireless QuMax Integrated LTE Antennas
The QuWireless AX11M offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTx11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.
QuWireless AX11M Key Features
- All antennas and router integrated into one enclosure
- Outdoor use - works in any weather condition IP67
- Passive PoE support
- Maximise signal
- Easy to install
- Dual SIM - significantly reduce roaming costs
.jpg "QuSpot Diagram")
LTE Specification
- Frequency:
- 0.694-0.96 GHz
- 1.7 - 2.2 GHz - 2.2
- 2.7 GHz - Gain:
- 2 dBi
- 2 dBi
- 4 dBi - VSWR:
- <1.70, max <2.00
- <1.60, max <2.00
- <1.60, max <2.00 - Beamwidth:
- 360°/35° +/- 5°
- 360°/35° +/- 5°
- 360°/35° +/- 5° - Polarisation: Vertical
- Impedance: 50 Ω
WiFi Specification
- Frequency:
- 2.40-2.50 GHz
- 4.70 - 6.00 GHz - Gain:
- 6 dBi
- 7 dBi - VSWR:
- <1.70, max <2.00
- <1.70, max <2.00 - Beamwidth:
- 360°/25° +/- 5°
- 360°/25° +/- 5° - Polarisation: Vertical
- Impedance: 50 Ω
Mechanical Specification
- Materials: ABS, aluminum, PTFE
- Ingress Protection: IP67
- Dimensions:
- 160 x 160 x 240 mm
- 6.3 x 6.3 x 9.45 inch - Weight:
- 1.5 kg
- 3.31 lbs - Operating Temperature:
- From -40°C to 75°C
- From -40°F to 167°F
Comprehensive Connectivity Solutions with LTE Antennas
The QuWireless QuMax integrates advanced LTE antennas for reliable, high-speed mobile connectivity. This product excels in providing strong signals in both urban and rural areas. It simplifies installation because you get all the necessary antennas in one compact unit. Featuring directional capabilities, the QuMax significantly improves signal reception, so you can enjoy uninterrupted internet access and seamless communication.
Dual-Band WiFi Support for Versatile Connectivity
In addition to its LTE antennas, the QuMax also offers dual-band WiFi capabilities. This means it supports both 2.4GHz and 5GHz frequencies, ensuring fast and stable connections for various devices. Users can experience less interference, which is essential for households or businesses with multiple WiFi-enabled gadgets. Therefore, upgrading to the QuMax can greatly enhance your internet experience at home or on the go.
Enhanced GPS and Bluetooth Features
The QuWireless QuMax does not stop at connectivity; it also includes integrated GPS and Bluetooth antennas. These features are particularly useful for applications that require location tracking or device pairing. For instance, logistics companies can utilize GPS capabilities for real-time tracking of shipments. Additionally, Bluetooth support makes connecting devices effortless, providing a comprehensive solution for modern connectivity demands.
Exploring the QuWireless QuMax Integrated LTE Antennas
The QuWireless AX11M offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUTx11 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also GPS antenna, Bluetooth antenna and outdoor Wi-Fi dual band 2.4 & 5 GHz omni antennas.
QuWireless AX11M Key Features
- All antennas and router integrated into one enclosure
- Outdoor use - works in any weather condition IP67
- Passive PoE support
- Maximise signal
- Easy to install
- Dual SIM - significantly reduce roaming costs
LTE Specification
- Frequency:
- 0.694-0.96 GHz
- 1.7 - 2.2 GHz - 2.2
- 2.7 GHz - Gain:
- 2 dBi
- 2 dBi
- 4 dBi - VSWR:
- <1.70, max <2.00
- <1.60, max <2.00
- <1.60, max <2.00 - Beamwidth:
- 360°/35° +/- 5°
- 360°/35° +/- 5°
- 360°/35° +/- 5° - Polarisation: Vertical
- Impedance: 50 Ω
WiFi Specification
- Frequency:
- 2.40-2.50 GHz
- 4.70 - 6.00 GHz - Gain:
- 6 dBi
- 7 dBi - VSWR:
- <1.70, max <2.00
- <1.70, max <2.00 - Beamwidth:
- 360°/25° +/- 5°
- 360°/25° +/- 5° - Polarisation: Vertical
- Impedance: 50 Ω
Mechanical Specification
- Materials: ABS, aluminum, PTFE
- Ingress Protection: IP67
- Dimensions:
- 160 x 160 x 240 mm
- 6.3 x 6.3 x 9.45 inch - Weight:
- 1.5 kg
- 3.31 lbs - Operating Temperature:
- From -40°C to 75°C
- From -40°F to 167°F
Comprehensive Connectivity Solutions with LTE Antennas
The QuWireless QuMax integrates advanced LTE antennas for reliable, high-speed mobile connectivity. This product excels in providing strong signals in both urban and rural areas. It simplifies installation because you get all the necessary antennas in one compact unit. Featuring directional capabilities, the QuMax significantly improves signal reception, so you can enjoy uninterrupted internet access and seamless communication.
Dual-Band WiFi Support for Versatile Connectivity
In addition to its LTE antennas, the QuMax also offers dual-band WiFi capabilities. This means it supports both 2.4GHz and 5GHz frequencies, ensuring fast and stable connections for various devices. Users can experience less interference, which is essential for households or businesses with multiple WiFi-enabled gadgets. Therefore, upgrading to the QuMax can greatly enhance your internet experience at home or on the go.
Enhanced GPS and Bluetooth Features
The QuWireless QuMax does not stop at connectivity; it also includes integrated GPS and Bluetooth antennas. These features are particularly useful for applications that require location tracking or device pairing. For instance, logistics companies can utilize GPS capabilities for real-time tracking of shipments. Additionally, Bluetooth support makes connecting devices effortless, providing a comprehensive solution for modern connectivity demands.
