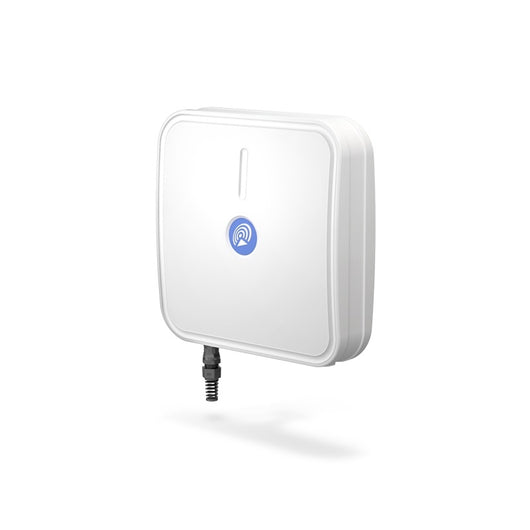

QuMax for Teltonika RUTX12/X14 (AX12M)
The QuMax AX12M antenna from QuWireless is specially designed for use with the TELTONIKA router RUTX12 or RUTX14 router. The QuMax AX12M antenna is an integrated solution with a Muti-Band 4x4 4G directional antenna, a GPS antenna, a Bluetooth and two integrated WiFi antennas.
By using the QuMAX antenna, you can tease out the full performance of your 4G connection. The two integrated 6dBi 4G directional antennas (4x4 MIMO) are connected directly to the antenna ports of the TELTONIKA RUTX12 or RUTX14 router. Once properly aligned, the QuMAX antenna provides a stable connection. The antenna covers all frequency ranges (LTE 800, LTE 1800, LTE 2600).
The AX12M also includes a GPS antenna, a Bluetooth antenna and two omnidirectional WiFi antennas. This allows the full range of functions of the RUTX12 or RUTX14 to be used.
The enclosure of the QuMAX antenna is absolutely weatherproof (IP67) and is specially designed for outdoor use. This allows you to use the QuMax antenna even in extreme weather conditions.
QuMax MIMO 4x4 directional LTE antenna (4x SMA connector for 2x embedded LTE modems or 1x MIMO 4x4 TE modem) for Teltonika RUTX12 and RUTX14 routers is a perfect outdoor device for mobile and fixed installations like industrial, CCTV, hotspots etc. It also has embedded Wi-Fi dual band 2.4 & 5 GHz omni antennas, GPS antenna and Bluetooth antenna. It is designed to have Teltonika RUTX12 or RUTX14 router installed inside IP67 enclosure. If you use RUTX12 with QuMax antenna, you get an integrated complete solution with embedded router and multi band antennas in one enclosure.
QuMax for Teltonika RUTX12/X14 (AX12M) Key Features
- Integrated Solution
- Muti-Band 4G directional antenna, GPS antenna, bluetooth and 2x integrated WiFi antennas
- IP67 Weatherproof Housing
QuMax for Teltonika RUTX12/X14 (AX12M) - Technical Specifications
General
Frequency- 0.694 - 0.96 GHz
- 1.7 - 2.2 GHz
- 2.2 - 2.7 GHz
Supported LTE/5G bands
- 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 14, 17, 18, 19, 20, 23, 25, 26, 27, 28, 29, 30, 33, 34, 35, 36, 37, 38, 39, 40, 41, 44, 53, 59, 62, 65, 66, 67, 68, 69, 85, n80, n81, n82, n83, n84, n86, n89, n90, n95
Gain
- 0.694 - 0.96 GHz : 4 dBi
- 1.7 - 2.2 GHz : 5 dBi
- 2.2 - 2.7 GHz : 6 dBi
Front-to-Back
- >8 dB
VSWR
- <1.30, max <1.80
Beamwidth
- 90°/90° ±30°
Polarization
- Vertical
Impedance
- 50 Ω
Wifi Antenna
Frequency
- 2.40 - 2.50 GHz
- 4.70 - 6.00 GHz
Gain
- 2.40 - 2.50 GHz : 6 dBi
- 4.70 - 6.00 GHz : 7 dBi
VSWR
- <1.70, max <2.00
Beamwidth
- 360°/25° ±5°
Polarization
- Vertical
Impedance
- 50 Ω
Bluetooth Antenna
Frequency
- 2.30 - 2.60 GHz
Gain
- 3 dBi
VSWR
- <1.70, max <2.00
Beamwidth
- 360°/25° ±5°
Polarization
- Vertical
Impedance
- 50 Ω
Mechanical Specification
Materials
- ABS, aluminum, PTFE, Fiberglass
Connector type
- RJ45
Ingress protection
- IP67
Dimensions
- 392 x 392 x 99 mm
- 15.43 x 15.43 x 3.90 inch
Weight
- 3.7 kg
- 8.16 lbs
Operating temperature
- From -40°C to 75°C
- From -40°F to 167°F
