Ribbon Communications Tenor AXG1600 16FXS VoIP Gateway
- Category:Best selling products,New products

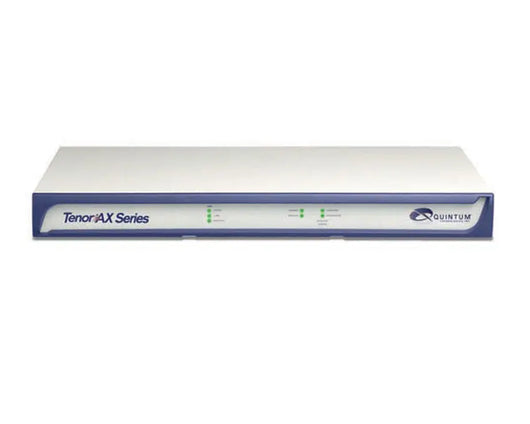

Ribbon Communications (Formally Sonus Quintum) Tenor AXG1600 16FXS VoIP Gateway
The Ribbon Communications Tenor AXG1600 16FXS VoIP Gateway is designed for communications between the PBX and the VoIP network, and supports 16FXS connections to be able to provide dial tone and VoIP-enable station side devices into an IP network. The AXG1600 gives small businesses and branch offices with analog voice infrastructures an easy, cost-effective way to capitalise on the power of Voice over IP (VoIP).
Key Features
- Ports: 16 FXS
- Up to 16 simultaneous voice calls
- Automatic call type detection: Voice/Modem/Fax
- LAN Interface: 1 Fast Ethernet port (10/100Base-T)
- Supports up to 60 endpoints and 1,800 calls per hour
- A complete survivable branch office solution
- Supports any-to-any connectivity between TDM (analog), H.323 and SIP devices
The Ribbon Communications Tenor AXG1600 16FXS VoIP Gateway puts enterprises and regional service providers on a smarter path to better communications: superior voice over IP sound quality, reliable security, cost-saving features and seamless integration with your existing phones, PBXs and network equipment.
The Sonus Quintum Tenor AXG1600 switch supports any-to-any connectivity between TDM (analog), H.323 and SIP devices, enabling enterprises and service providers to rapidly migrate analog phones onto SIP-based networks and connect with Sonus session border controllers (SBCs) for richer, SIP-based services. The Tenor AXG1600 supports up to 60 endpoints and 1,800 calls per hour, making it an ideal choice for multi-protocol communications in small enterprises, large branch offices and regional POPs (points of presence).
System Capabilities (per Switch)
- Sessions
- Up to 16 simultaneous VoIP calls
- Maximum call rate: 1,800 calls per hr.
- Up to 30 simultaneous IP to IP calls
- Business Continuity/Survivability (for AXM and AXT Series only)
- SIP outbound proxy
- Supports up to 60 SIP endpoints
- 16 FXS Ports
Management Capabilities
- Operations, Administration & Management
- Auto-provisionable
- GUI-based Configuration Manager for multiple, remote switches
- SNMPv2 Agent
- Command Line Interface (CLI) configuration via Telnet or RS-232 connection
- Call Detail Record (CDR) generation
- Authentication
- IVR/RADIUS server support for AAA with integrated multilingual IVR+
- ANI authentication (Types 1 and 2)
Media Services
- Auto codec negotiation: G.711, G.723.1, G.726, G.729a/b
- Modem support with G.711
- G.168 Echo Cancellation with standard 128 ms tail length
- Adaptive Voice Activity Detection (VAD)
- Comfort Noise Generation (CNG)
- Fax support: Group III at 2.4, 4.8, 7.2, 9.6 and 14.4 Kbps using industry standard T.38 (Super G3 compatible up to 33.6 Kbps)
- Automatic call type detection – voice, fax or modem
Signaling
- Any-to-any connectivity: SIP<->SIP,
SIP<->H.323, H.323<->H.323, TDM<->TDM,
SIP<->TDM, H.323<->TDM - Tandem/TDM switching
- Support for multiple SIP User Agents (RFC 3261)
- SIP supplementary services
- DTMF signaling via RFC 2833 or SIP Info
- SIP header manipulation: automatic appending and stripping of digits to dialed numbers
- Loop Start, Reverse Battery and Battery Disconnect
- Coding: A law, I law
Protocol Support
- DHCP
- DNS
- H.323
- SIP
- SNMP
- TCP
- UDP
Routing/Policy
- Transparent MultiPath Call Routing
- Least Cost Routing (via Sonus PSX™ Centralized Routing and Policy Server)
- Forced IP routing and IP port mapping
- Four types of configurable routing databases: Bypass Directory Numbers, Hunt Local Directory Numbers, Hop-Off Directory Numbers and Static Routes
- Multiple dial plan options: public/private dial plan, user-programmable dial plan
- Answer and disconnect supervision
- Pass-through support for calls to tollfree, local and special service numbers (e.g., emergency services)
- Type 1 Caller ID/Name Support (Telcordia, ETSI, NTT and DTMF)
- SIP REFER method
Security
- NATAccess™ network address translation firewall protection
- IP packet filtering
Quality of Service
- Adaptive jitter buffer
- Packet loss concealment
- IP Type of Service (TOS) and DiffServ support
- PacketSaver™ multiplexing technology:
Reduces bandwidth consumption up to
57% by combining voice packets from
multiple calls into a single packet
Hardware Specifications
Front Panel
- Status Indicators Front Panel LEDs
- Power
- Operational Status
- LAN Link Status
- LAN Link Rate
- LAN Activity
- Analog FXO/FXS Port Activity
Rear Panel
- One Fast Ethernet port (10/100 BASE-T)
- Standard RJ-45 LAN Interface (IEEE 802.3) for 10 BASE-T or 100 BASE-TX connections
- RS-232 connector for PC console
- DIAG for software diagnostics
- RESET for system reset
- AC power receptacle
- Analog output via Male 50-pin RJ-21 telco connectors
Chassis
- 1U, rack mount
- Inches: 17.375 Wide x 1.75 High x 10.75 Deep
- Centimeters: 44.5 Wide x 4.5 High x 27.6 Deep
AC Power Option
- 100-240 VAC, 50-60 Hz
- Max power consumption: 60W
Operating Altitude
- 10,000 ft. (3,000 m.)
Weight Maximum Fully Populated
- 10.0 lbs. (4.55 kg)
Environmental
- 5˚ to 40˚ C operating
- -10˚ to 60˚ storage
- 20 to 80% non-condensing operating humidity
Industry Standards Support
- Telco: FCC Part 68, TS-016, TBR4, TS- 038, CS03
- EMC: FCC Part 15 EN55022, EN55024, EN61000-2-3, EN61000-3-3, AS/ NZS3260
- Safety: UL60950, EN60950, AS/ NZS6095
