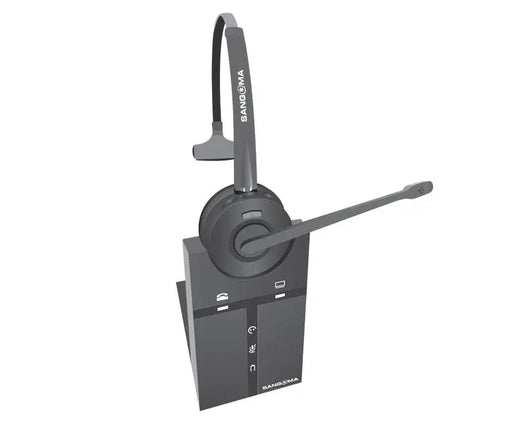

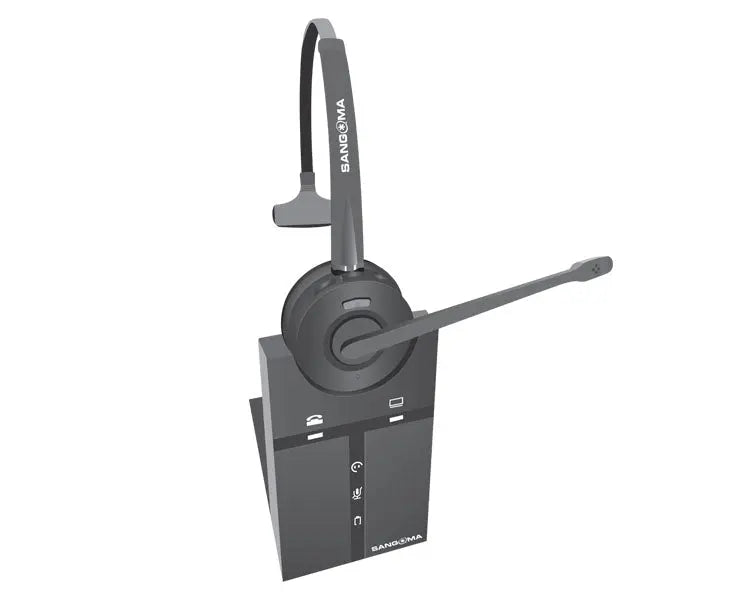

Sangoma H20 Wireless DECT Headset
Sangoma H20 Wireless DECT Headset
The Sangoma H20 is designed to take advantage of the the Switchvox Desktop softphone and Zulu Softphone for FreePBX/PBXact. Connect the H20 directly to your workstation via the supplied USB cable and enjoy great audio and video calls. The H20 is also compatible with Sangoma D-Series and S-Series IP phones too, so that you have the flexibility to use either your desk phone or softphone (or both).
Sangoma H20 Key Features
Hands-Free Productivity
Superior sound Quality
Noise Cancellation
Superior Call Handling
All-Day Battery Life
On-call LED
Sangoma H20 Technical Specification
Compatible Desk Phones
S206, S305, S406, S505, S705
D60, D62, D65, D80
Compatible Softphones
Switchvox Desktop Softphone
FreePBX/PBXact: Zulu UC
Visual Indicator
LED indicates call status, pairing status and other events
PC or Desk phone LED to indicate the active connection type
Desk Phone Connections
RJ-11 for handset, RJ-11 for phone body (or headset port), RJ-45 for EHS AUX
PC Connections
Standard USB cable to PC with micro-USB connector on H20 Cradle
Toggle Mode
Toggle button to switch between PC and Desk Phone mode
Call Control
Multi-function button support to answer, end, or reject calls
Volume Control and Microphone Mute
Button controls on headset
Microphone
Noise-canceling wideband microphone
Speaker
Wideband speaker
Range
For U.S. DECT, up to 350 feet from H10 DECT Headset base to headset. For European DECT, up to 120 meters from H10 DECT Headset base to headset
Wireless Standard
(CAT - IQ) U.S. DECT and European DECT
Frequencies
U.S. DECT: 1.92 - 1.93 GHz. EU DECT: 1.88 - 1.90 GHz
Sound Quality
DSP noise reduction; echo cancellation; tone control; wideband and narrowband audio
Audio Indicator
Tones indicate incoming calls, low battery, volume level, microphone muting and other events
Wearing Style
Headband and ear hook
Long boom arm
Battery Type
Lithium Ion-Polymer
Battery Capacity
A300 mAh, typical
Battery Talk Time
Up to eight hours
Battery Standby Time
At least 36 hours
Battery Charge Time
20% charge in less than 20 minutes
50% charge in less than 45 minutes
Full charge in less than three hours
Battery Lifetime
Minimum 1000 charge cycles
Battery Shelf Life
Headset battery holds charge for six months in the off state before recharge is required
Dialtone Adjustment Switch and Microphone Volume Switch
Electromechanical switches. Dialtone adjustment switch and microphone volume level set manually
Dimensions
97 mm x 75 mm x 120 mm
Operating Environment
-0˚C to +40˚C; Up to 95% Rh non-condensing
Limited Warranty
One year
Optional Accessories
Electronic Hook Switch (EHS): EHS adds remote answer/disconnect convenience
EHS ADAPTER: Compatible with S406,S505,S705 (SKU:PHON-ACCS-EHS30-SNG)
EHS CABLE: Compatible with D60,D62,D65,D80 (SKU:1TELHC01LF)
The Sangoma H20 is designed to take advantage of the the Switchvox Desktop softphone and Zulu Softphone for FreePBX/PBXact. Connect the H20 directly to your workstation via the supplied USB cable and enjoy great audio and video calls. The H20 is also compatible with Sangoma D-Series and S-Series IP phones too, so that you have the flexibility to use either your desk phone or softphone (or both).
Sangoma H20 Key Features
Hands-Free Productivity
Superior sound Quality
Noise Cancellation
Superior Call Handling
All-Day Battery Life
On-call LED
Sangoma H20 Technical Specification
Compatible Desk Phones
S206, S305, S406, S505, S705
D60, D62, D65, D80
Compatible Softphones
Switchvox Desktop Softphone
FreePBX/PBXact: Zulu UC
Visual Indicator
LED indicates call status, pairing status and other events
PC or Desk phone LED to indicate the active connection type
Desk Phone Connections
RJ-11 for handset, RJ-11 for phone body (or headset port), RJ-45 for EHS AUX
PC Connections
Standard USB cable to PC with micro-USB connector on H20 Cradle
Toggle Mode
Toggle button to switch between PC and Desk Phone mode
Call Control
Multi-function button support to answer, end, or reject calls
Volume Control and Microphone Mute
Button controls on headset
Microphone
Noise-canceling wideband microphone
Speaker
Wideband speaker
Range
For U.S. DECT, up to 350 feet from H10 DECT Headset base to headset. For European DECT, up to 120 meters from H10 DECT Headset base to headset
Wireless Standard
(CAT - IQ) U.S. DECT and European DECT
Frequencies
U.S. DECT: 1.92 - 1.93 GHz. EU DECT: 1.88 - 1.90 GHz
Sound Quality
DSP noise reduction; echo cancellation; tone control; wideband and narrowband audio
Audio Indicator
Tones indicate incoming calls, low battery, volume level, microphone muting and other events
Wearing Style
Headband and ear hook
Long boom arm
Battery Type
Lithium Ion-Polymer
Battery Capacity
A300 mAh, typical
Battery Talk Time
Up to eight hours
Battery Standby Time
At least 36 hours
Battery Charge Time
20% charge in less than 20 minutes
50% charge in less than 45 minutes
Full charge in less than three hours
Battery Lifetime
Minimum 1000 charge cycles
Battery Shelf Life
Headset battery holds charge for six months in the off state before recharge is required
Dialtone Adjustment Switch and Microphone Volume Switch
Electromechanical switches. Dialtone adjustment switch and microphone volume level set manually
Dimensions
97 mm x 75 mm x 120 mm
Operating Environment
-0˚C to +40˚C; Up to 95% Rh non-condensing
Limited Warranty
One year
Optional Accessories
Electronic Hook Switch (EHS): EHS adds remote answer/disconnect convenience
EHS ADAPTER: Compatible with S406,S505,S705 (SKU:PHON-ACCS-EHS30-SNG)
EHS CABLE: Compatible with D60,D62,D65,D80 (SKU:1TELHC01LF)
Description
Sangoma H20 Wireless DECT Headset
The Sangoma H20 is designed to take advantage of the the Switchvox Desktop softphone and Zulu Softphone for FreePBX/PBXact. Connect the H20 directly to your workstation via the supplied USB cable and enjoy great audio and video calls. The H20 is also compatible with Sangoma D-Series and S-Series IP phones too, so that you have the flexibility to use either your desk phone or softphone (or both).
Sangoma H20 Key Features
Hands-Free Productivity
Superior sound Quality
Noise Cancellation
Superior Call Handling
All-Day Battery Life
On-call LED
Sangoma H20 Technical Specification
Compatible Desk Phones
S206, S305, S406, S505, S705
D60, D62, D65, D80
Compatible Softphones
Switchvox Desktop Softphone
FreePBX/PBXact: Zulu UC
Visual Indicator
LED indicates call status, pairing status and other events
PC or Desk phone LED to indicate the active connection type
Desk Phone Connections
RJ-11 for handset, RJ-11 for phone body (or headset port), RJ-45 for EHS AUX
PC Connections
Standard USB cable to PC with micro-USB connector on H20 Cradle
Toggle Mode
Toggle button to switch between PC and Desk Phone mode
Call Control
Multi-function button support to answer, end, or reject calls
Volume Control and Microphone Mute
Button controls on headset
Microphone
Noise-canceling wideband microphone
Speaker
Wideband speaker
Range
For U.S. DECT, up to 350 feet from H10 DECT Headset base to headset. For European DECT, up to 120 meters from H10 DECT Headset base to headset
Wireless Standard
(CAT - IQ) U.S. DECT and European DECT
Frequencies
U.S. DECT: 1.92 - 1.93 GHz. EU DECT: 1.88 - 1.90 GHz
Sound Quality
DSP noise reduction; echo cancellation; tone control; wideband and narrowband audio
Audio Indicator
Tones indicate incoming calls, low battery, volume level, microphone muting and other events
Wearing Style
Headband and ear hook
Long boom arm
Battery Type
Lithium Ion-Polymer
Battery Capacity
A300 mAh, typical
Battery Talk Time
Up to eight hours
Battery Standby Time
At least 36 hours
Battery Charge Time
20% charge in less than 20 minutes
50% charge in less than 45 minutes
Full charge in less than three hours
Battery Lifetime
Minimum 1000 charge cycles
Battery Shelf Life
Headset battery holds charge for six months in the off state before recharge is required
Dialtone Adjustment Switch and Microphone Volume Switch
Electromechanical switches. Dialtone adjustment switch and microphone volume level set manually
Dimensions
97 mm x 75 mm x 120 mm
Operating Environment
-0˚C to +40˚C; Up to 95% Rh non-condensing
Limited Warranty
One year
Optional Accessories
Electronic Hook Switch (EHS): EHS adds remote answer/disconnect convenience
EHS ADAPTER: Compatible with S406,S505,S705 (SKU:PHON-ACCS-EHS30-SNG)
EHS CABLE: Compatible with D60,D62,D65,D80 (SKU:1TELHC01LF)
The Sangoma H20 is designed to take advantage of the the Switchvox Desktop softphone and Zulu Softphone for FreePBX/PBXact. Connect the H20 directly to your workstation via the supplied USB cable and enjoy great audio and video calls. The H20 is also compatible with Sangoma D-Series and S-Series IP phones too, so that you have the flexibility to use either your desk phone or softphone (or both).
Sangoma H20 Key Features
Hands-Free Productivity
Superior sound Quality
Noise Cancellation
Superior Call Handling
All-Day Battery Life
On-call LED
Sangoma H20 Technical Specification
Compatible Desk Phones
S206, S305, S406, S505, S705
D60, D62, D65, D80
Compatible Softphones
Switchvox Desktop Softphone
FreePBX/PBXact: Zulu UC
Visual Indicator
LED indicates call status, pairing status and other events
PC or Desk phone LED to indicate the active connection type
Desk Phone Connections
RJ-11 for handset, RJ-11 for phone body (or headset port), RJ-45 for EHS AUX
PC Connections
Standard USB cable to PC with micro-USB connector on H20 Cradle
Toggle Mode
Toggle button to switch between PC and Desk Phone mode
Call Control
Multi-function button support to answer, end, or reject calls
Volume Control and Microphone Mute
Button controls on headset
Microphone
Noise-canceling wideband microphone
Speaker
Wideband speaker
Range
For U.S. DECT, up to 350 feet from H10 DECT Headset base to headset. For European DECT, up to 120 meters from H10 DECT Headset base to headset
Wireless Standard
(CAT - IQ) U.S. DECT and European DECT
Frequencies
U.S. DECT: 1.92 - 1.93 GHz. EU DECT: 1.88 - 1.90 GHz
Sound Quality
DSP noise reduction; echo cancellation; tone control; wideband and narrowband audio
Audio Indicator
Tones indicate incoming calls, low battery, volume level, microphone muting and other events
Wearing Style
Headband and ear hook
Long boom arm
Battery Type
Lithium Ion-Polymer
Battery Capacity
A300 mAh, typical
Battery Talk Time
Up to eight hours
Battery Standby Time
At least 36 hours
Battery Charge Time
20% charge in less than 20 minutes
50% charge in less than 45 minutes
Full charge in less than three hours
Battery Lifetime
Minimum 1000 charge cycles
Battery Shelf Life
Headset battery holds charge for six months in the off state before recharge is required
Dialtone Adjustment Switch and Microphone Volume Switch
Electromechanical switches. Dialtone adjustment switch and microphone volume level set manually
Dimensions
97 mm x 75 mm x 120 mm
Operating Environment
-0˚C to +40˚C; Up to 95% Rh non-condensing
Limited Warranty
One year
Optional Accessories
Electronic Hook Switch (EHS): EHS adds remote answer/disconnect convenience
EHS ADAPTER: Compatible with S406,S505,S705 (SKU:PHON-ACCS-EHS30-SNG)
EHS CABLE: Compatible with D60,D62,D65,D80 (SKU:1TELHC01LF)
Download
Download File
Sangoma H20 Wireless DECT Headset
£188.28
