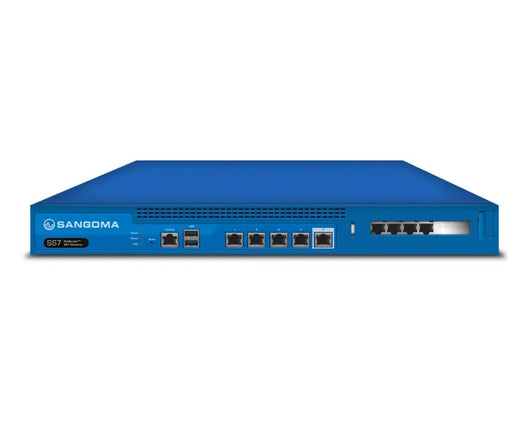

Sangoma Netborder SS7 VoIP Gateway Appliance

The Sangoma NetBorder SS7 VoIP Gateway is a feature-rich, cost-effective solution that allows Telecom service providers to introduce VoIP in their networks with transcoding capabilities. The solution supports up to 64 E1/T1s per appliance. For installations up to 256 E1/T1s or for STM-1/OC-3, distribution across multiple servers using the signalling relay feature provide maximum flexibility to support growth.

Sangoma Netborder SS7 Key Features

All-in-one turnkey solution
SS7 ISUP (including several national variants)
Up to 16 SS7 Signalling links
SIP RFC3261
H.248 (Megaco)
SIGTRAN M2UA
H.323
Supports a wide range of VoIP and wireless codecs
G.711, G.723.1, G.726, iLBC, G.729AB, GSM, G.722, AMR, G.722.1

Sangoma Netborder SS7 - Technical Specifications

PSTN Protocols

SS7-ISUP
ITU, ANSI, Bellcore, UK, China, India, France, and Russian variants
Up to 16 A or F signalling links
Up to 16 Originating Point Codes
Up to 16 Destination Point Codes
Up to 16 Linksets
ISUP relay for larger configurations

PSTN Interfaces

Up to 64 E1/T1 (1820 ports) per server, available in these configurations:
4 E1/T1 in 1U appliance
8 E1/T1 in 1U appliance
16 E1/T1 in 2U appliance
32 E1/T1 in 2U appliance
64 E1/T1 in 2U appliance
Extend capacity over 1820 ports and single server via ISUP relay feature
STM-1/OC-3
RJ-48 Connectors

VoIP Protocols

SIP V2/RFC3261
SIGTRAN M2UA RFC 3331
SCTP RFC 2960
Megaco/H248
H.323

Network Interfaces

1U/2U Appliances
2 RJ-45 Ethernet ports
4 USB ports

Video:

1 DVI output port

Call Routing

Configurable and extendable XML-based dial plan and routing rules

AC Power

250W universal for 1U solution
350W universal for 2U solution
DC 400W -48V for 2U (Special Order)

Dimensions

1U : 480.4(W) x 474(D) x 44(H) mm;
19”(W) x 18.7”(D) x 1.7”(H)
2U: 482(W) x 441.6(D) x 88.4(H) mm;
19”(W) x 17.4”(D) x 3.5”(H)

Media Processing

Transcoding:
Wide range of codecs support via Sangoma transcoding hardware (D100/D150/D500):
G.711
G.723.1
G.726
iLBC
G.729AB
GSM
G.722
AMR
G.722.1
T.38 Fax Relay

Echo Cancellation

G.168-2002 with 128ms tail

DTMF Detection and Generation

RFC2833 Tone relay
In-band
DTMF detection and generation

Management and Configuration

Web GUI
Command line interface
Call detail records in XML format
Detailed logs with configurable file size & auto-rotation
SNMP
Radius

Warranty

Standard 12-month warranty is included. Additional warranty services available, contact your Sales representative for more information.
