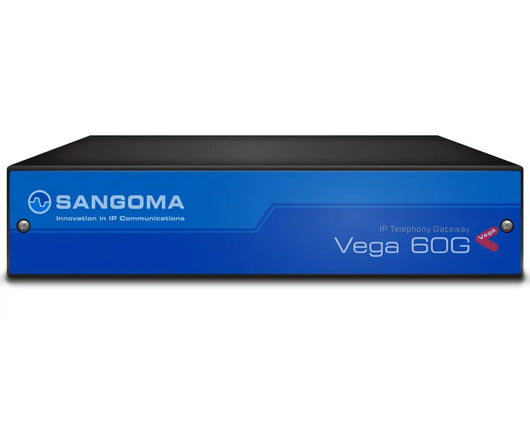

Sangoma Vega 60G V2 Gateway 8 FXS
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
Categories

Sangoma Vega 60G V2 Gateway 8 FXS

Available:In Stock
£568.32

Sangoma Vega 60G V2 Gateway 8 FXS

The Sangoma VEGA-60GV2-0800 is designed to simplify the integration of analog phone systems or Basic Rate ISDN (BRI) devices to a VoIP network. It supports up to 8 analog ports, or up to 4 BRI lines.

Sangoma VEGA-60GV2-0800 Key Features

  • 8 FXS Ports
  • Flexible Call Routing
  • Emergency Backup with Enhanced Network Proxy
  • Interoperability with a Wide Range of Legacy & IP Equipment
  • Voice, FA, and Modem Support
  • Automated Configuration with TR-069
Sangoma VEGA-60GV2-0800 - Technical Specifications

VoIP Interfaces

  • SIP V1, V2
  • Fax support – up to G3 FAX, T.38
  • Modem support – up to V.90, G.711
  • 8 VoIP channels for FXO / FXS
  • 8 VoIP channels for BRI
  • Audio Codecs: G.711 (a-law/μ-law), G.729a (8kbps), G.723.1 (5.3/6.4 kbps), G.726, T.38

Telephony Interfaces

  • ETSI BRI:
    - 2x or 4x S/T interfaces presented on RJ-45
    - Point to point or point to multipoint
    - Each interface configured NT or TE- High precision clock optional
  • Analog:
    - All FXS and FXO ports presented on RJ-11
    - 600R, 900R or CTR-21 line impedance

LAN Interfaces

  • 1x RJ-45 Gigabit Ethernet 1000BaseT / 100BaseTx / 10BaseT, full / half duplex
  • PoE option available on some models
  • Dual LAN port option available

Additional Interfaces

  • 1x USB port for storage
  • 1x Serial console (RJ45) port (Serial cable provided)

Local Survivability

  • Standalone proxy
  • IP device survivability
  • IP device call routing
  • Emergency call routing

Telephony Features

  • Call waiting
  • Call forward – unconditional, busy, no-answer
  • Call transfer – blind, consultative
  • 3-way conference
  • Do not disturb
  • Message waiting indicator – audible, visual
  • Music on hold
  • Executive barge
  • Caller ID presentation & screening
  • SIP registration & digest authentication

Operations, Maintenance & Billing

  • HTTP(S) web server
  • RADIUS accounting & login
  • Remote firmware upgrade
  • Auto configuration upgrade
  • SNMP V1, V2 & V3
  • Syslog
  • TR-069 / TFTP / FTP support
  • VT100 – RS232 / Telnet / SSH
  • Voice readback of IP parameters

Routing & Numbering

  • Direct Dialing In (DDI)
  • SIP registration to multiple proxies
  • Dial planner – sophisticated call routing capabilities, standalone or gatekeeper / proxy integration
  • FXS ports support call waiting & call transfer (blind & consultative)
  • NAT traversal

Security & Encryption

  • Media – SRTP
  • Management – HTTPS, SSH Telnet
  • SIP – TLS
  • Configurable user login passwords

Call Quality

  • Adaptive jitter removal
  • Silence suppression
  • Type of Service (ToS)
  • Differentiated Services (DiffServ)
  • Comfort noise generation
  • 802.1p / Q VLAN tagging
  • QoS statistics reporting
  • Echo cancellation (G.168 up to128ms tail)

Certification

  • EMC (CLASS B): EN55022, EN55024 & FCC Part 15
  • Safety: EN60950, IEC60950 & UL60950

Environmental

  • 0° .. 40°C
  • 0% .. 90% humidity (non-condensing)

FXS Line Length

  • 2000ohm, up to 8km (depending on environment)

LED Indicators

  • LAN: Speed/Activity

Dimensions

  • 1U: 200 x 127 x 43mm (WxDxH)
  • Weight: .8kgs (1.7lbs)

Power Supply

  • External 12V 24W AC/DC adapter
