Snom D140 Desk phone

Available:In Stock
£51.60

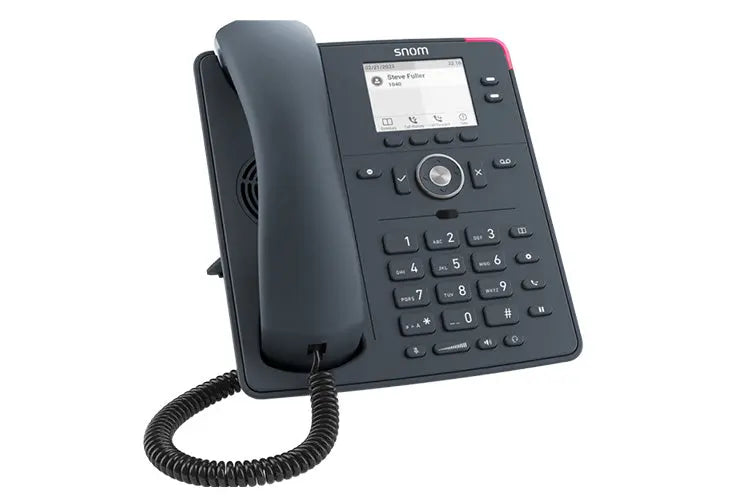

Snom D140 Desk Phone

The Snom D140 is suitable for all work environments in which cost-effective but high-quality communication is required. The device, equipped with slate grey housing, offers all the important telephony functions.

Snom D140 Key Features

  • 2 SIP identities
  • Low power consumption
  • 2.8" TFT LCD - grayscale display
  • 360° notification display

Two freely programmable SmartLabel keys, six dedicated and four context-sensitive function keys are available for simple and intuitive operation. The D140 is ideal for large installations, e.g. in public administrations.

Snom D140 Technical Specifications

Basics

  • Product information
    • IP desk phone
    • PN 00004651
    • Colour: slate gray
    • Operating system: Linux
  • Placement: indoor, desktop, wall mounting

Dimensions and weight

  • Dimensions (L × W × H, approx.) without footstand
    • 205 mm × 185 mm × 40 mm
  • Dimensions (H x W x D, approx.) with footstand
    • 205 mm × 185 mm × 220 mm (high angle 46°)
    • 205 mm × 185 mm × 200 mm (low angle 28°)
  • Weight (approx.):
    • 710 g without footstand
    • 830 g with footstand

Display and indicators

  • Display
    • TFT liquid crystal display (LCD), graphical, grayscale, backlit
    • Size (diagonal): 2.8″ (67 mm)
    • Size (W × H): 59 mm × 33 mm
    • Resolution: 320 × 240 pixels
  • 3 LED indicators
    • Call status indication: 1 red LED
    • Function key status indication: 2 multicolour LEDs

Keypad and function keys

  • 36 hard keys in total
  • 12 keys (standard ITU telephone keypad)
  • 4 context-sensitive function keys
  • 5-way navigation key
  • 2 SmartLabel keys (with multicolour LED)
  • 5 dedicated audio keys
    • Mute, Speakerphone, Headset, Volume + / - (rocker)
  • 6 dedicated function keys
    • Ok, Cancel, DND, Message (with red LED), Directory, Menu, Transfer, Hold
  • Keyboard lock

Audio devices, codecs and features

  • Corded receiver:
    • Hearing aid compatible (HAC)
  • Audio codecs
    • G.711 (A-law, μ-law), G.722, G.726, G.729, GSM 6.10 (FR)
  • Dual-tone multi-frequency signaling (DTMF / RFC2833)
    • SIP-INFO, in-band, out-of-band
  • Related features
    • Built-in assignable ringtones
    • Comfort Noise Generator (CNG)
    • Voice Activity Detection (VAD)

Interfaces and connections

  • Power options
    • Power over Ethernet (PoE)
    • IEEE 802.3af, class 1 | IEEE 802.3az
  • Power adapter
    • 100 - 240 V AC, 50 - 60 Hz | 5 V DC (SELV), 2 A, 10 W
  • Wired interfaces
    • Power adapter:
    • 1 coaxial power connector (socket)
    • Ethernet 10/100 Mbit/s: 2 × RJ45-8P8C sockets
    • Corded receiver: RJ9-4P4C socket
    • Headset: 1 RJ9-4P4C socket
    • EHS adapter: 1 RJ12-6P6C (EHS) socket
  • Sensors
    • Hook switch sensor

See Datasheet for full Technical specification
