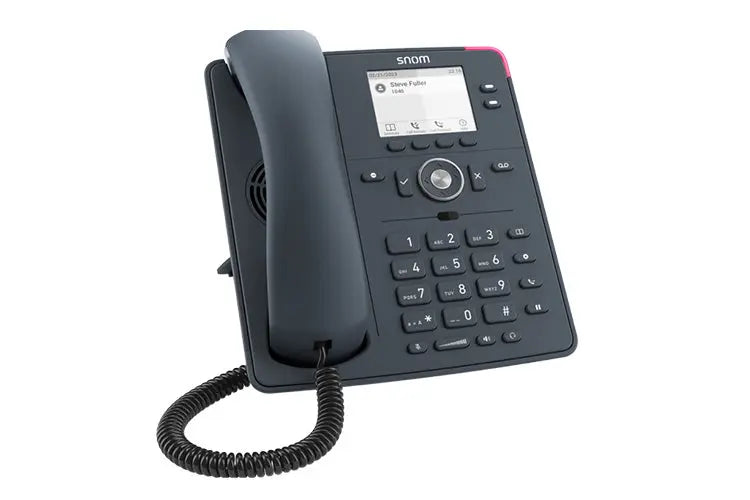

Snom D150 Desk Phone

Completed with a sleek slate grey finish and a clean design, the Snom D150 seamlessly integrates into any professional setting where effective phone communication is essential. It brings together cutting-edge technology and top-notch voice clarity at an unmatched value. The D150 is right at home in environments that demand efficiency and cost-effectiveness.

Snom D150 Key Features

Colour: slate gray
2 SIP identities
Gigabit Ethernet
Low power consumption
2.8" TFT LCD - grayscale display
360° notification display

Additionally, the D150 comes with a gigabit switch featuring PoE support and an RJ9 headset port. Its prominently visible LED display, backlit for easy viewing, simplifies the tracking of call information and functions.

Snom D150 Technical Specifications

Basics

Product information
- IP desk phone
- PN 00004651
- Colour: slate gray
- Operating system: Linux
Placement: indoor, desktop, wall mounting

Dimensions and weight

Dimensions (L × W × H, approx.) without footstand
- 205 mm × 185 mm × 40 mm
Dimensions (H x W x D, approx.) with footstand
- 205 mm × 185 mm × 220 mm (high angle 46°)
- 205 mm × 185 mm × 200 mm (low angle 28°)
Weight (approx.):
- 710 g without footstand
- 830 g with footstand

Display and indicators

Display
- TFT liquid crystal display (LCD), graphical, grayscale, backlit
- Size (diagonal): 2.8″ (67 mm)
- Size (W × H): 59 mm × 33 mm
- Resolution: 320 × 240 pixels
3 LED indicators
- Call status indication: 1 red LED
- Function key status indication: 2 multicolour LEDs

Keypad and function keys

36 hard keys in total
12 keys (standard ITU telephone keypad)
4 context-sensitive function keys
5-way navigation key
2 SmartLabel keys (with multicolour LED)
5 dedicated audio keys
- Mute, Speakerphone, Headset, Volume + / - (rocker)
6 dedicated function keys
- Ok, Cancel, DND, Message (with red LED), Directory, Menu, Transfer, Hold
Keyboard lock

Audio devices, codecs and features

Corded receiver:
- Hearing aid compatible (HAC)
Audio codecs
- G.711 (A-law, μ-law), G.722, G.726, G.729, GSM 6.10 (FR)
Dual-tone multi-frequency signaling (DTMF / RFC2833)
- SIP-INFO, in-band, out-of-band
Related features
- Built-in assignable ringtones
- Comfort Noise Generator (CNG)
- Voice Activity Detection (VAD)

Interfaces and connections

Power options
- Power over Ethernet (PoE)
- IEEE 802.3af, class 1 | IEEE 802.3az
Power adapter
- 100 - 240 V AC, 50 - 60 Hz | 5 V DC (SELV), 2 A, 10 W
Wired interfaces
- Power adapter:
- 1 coaxial power connector (socket)
- Ethernet 1 Gbit/s: 2 × RJ45-8P8C sockets
- Corded receiver: RJ9-4P4C socket
- Headset: 1 RJ9-4P4C socket
- EHS adapter: 1 RJ12-6P6C (EHS) socket
Sensors
- Hook switch sensor

See Datasheet for full Technical specification
