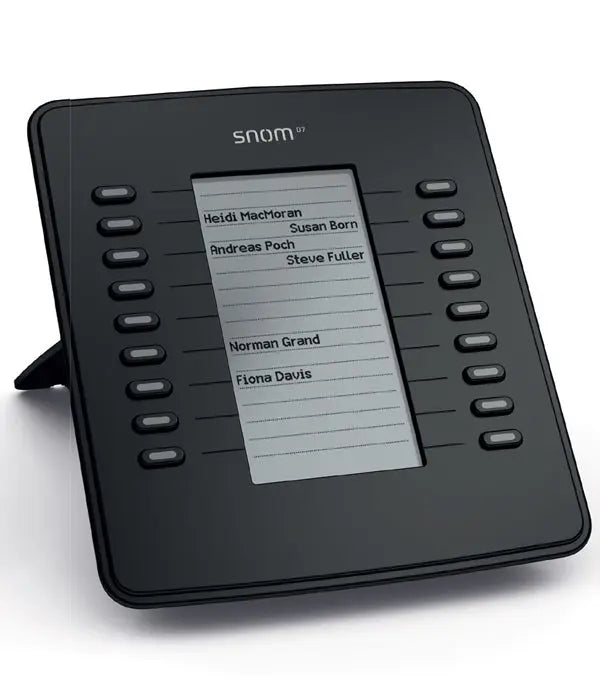

Snom D7 Expansion Module Black

£131.55

The Snom D7 Expansion Module is designed to enhance the functionality of compatible Snom desk phones, particularly those in the D7xx series. It features a high-resolution monochrome backlit display and 18 programmable multicolor LED keys, which can be configured for functions like speed dial, busy lamp fields, and presence indication. The module connects via USB and supports plug-and-play installation

Colour: Grey Black

Grey Black
Add to WishlistCompare

apple paygoogle payjcbmasterpaypalvisa
Ask a Question
Vendor: Snom
SKU: D7
Availability: In Stock Pre order Out of stock
Description

Snom D7 Expansion Module Datasheet (PDF)

Snom D7 Expansion Module Black

The Snom D7 expansion module works with all current Snom desk phones.  It includes 18 multi-color LED keys which can be programmed with all available snom phone functions. The high-resolution display provides a perfect visual interface which can be easily configured and labelled via the phone’s web interface or directly on the phone itself.

Key Features

  • 18 highly configurable self-labeling LED keys
  • High-resolution black & white display with backlight
  • Daisy chain up to 3 modules
  • Plug and play
  • Power supplied by phone via USB port
Using the Snom D7 could not be easier, simply connect the USB cable and it’s ready to use. Three D7 expansion modules can be daisy-chained to add up to 54 function keys to your phone. The D7 is the perfect addition to any snom 7-series desk phone.

Snom D7 Technical Specifications

Benefits

  • High-resolution graphical display with backlight
  • 18 freely programmable multi-color LED function keys
  • Dual-angle footstand: 46° and 28°
  • Daisy chainable
  • Fully configurable via host phone
  • Powered by host phone (1)

Type Approval

  • CE Mark
  • FCC Class B
  • Safety IEC 60950, CB

Compatible with

  • The D7 Expansion Module is compatible with all
    snom 7-series phones with USB port

Installation

  • Plug and Play
  • Completely configurable via host phone

Features

  • Dimensions in millimeters (approx.):
    · 158 x 140 x 40 (LxWxD) w/o foot stand
    · 158 x 140 x 200/220 mm (LxWxD) with foot stand
  • Weight (approx.): device 400g, footstand 120g
  • Input voltage: 5Vdc (SELV)
  • Power supply: USB or 5Vdc power adapter (3), 10 Watts
  • USB 2.0 cable with angled type A plug
  • USB 2.0 port, type A
  • Environmental conditions:
    ·Ambient temperature: 0°C to 35°C (32°F to 95°F)
    · Non-operation: -10°C to 45°C (14°F to 113°F)
    · Humidity: 5% to 95% (non-condensing)
  • · Included in delivery:
    · Base unit
    · Foot stand
    · Quick Start Guide
  • · Color: Anthracite gray or black
  • Warranty: 2 Years
  • Part Number:
    00003924 (gray - all markets)
    00004011 (black - all markets)
  • · Color: Anthracite gray or black
    · Warranty: 2 Years
    · Part Number: 00003924 (gray - all markets)
    00004011 (black - all markets)
