Snom D717 Entry-Level IP Phone - White (D717W)
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020

Snom D717 Entry-Level IP Phone - White (D717W)

Available:In Stock

Snom D717 Entry-Level IP Phone - White (D717W)

3cx compatible phone banner

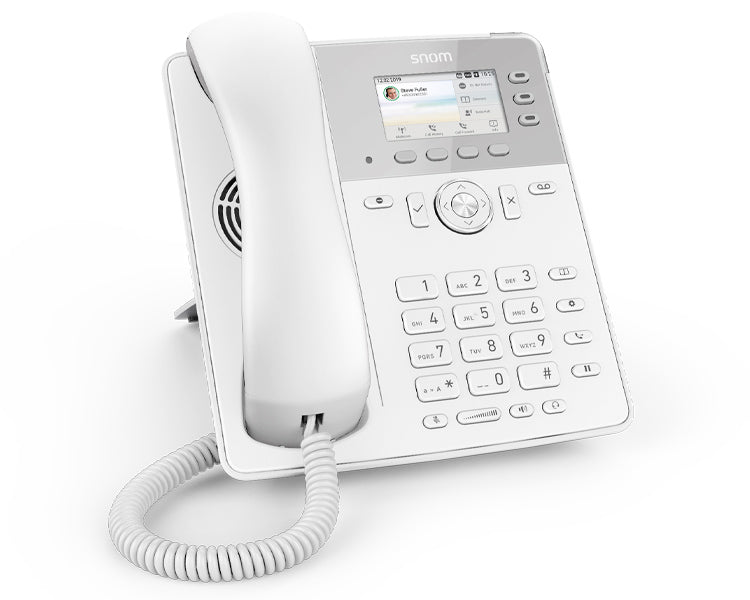

The Snom D717W is the stylish white version of the D717, featuring an intuitive design with advanced technology and connectivity. Three self-labelling programmable feature keys sit next to a 2.8-inch, 320 x 240 pixel colour LCD display. Opus codec support gives you the freedom to enjoy crystal-clear audio or high-quality narrowband audio, depending on your network conditions.


Snom D717W Key Features


    • Stylish white version
    • Integrated ambient light sensor
    • Automatic backlight dimming
    • Wide screen graphical TFT display
    • 3 self-labelling function keys
    • Wideband hands-free talking (speakerphone)
    • Digital Signal Processor (DSP) enhanced audio quality
    • 2-port Gigabit Ethernet switch (RJ45)
    • Power over Ethernet IEEE 802.3af, Class 2
    • USB headset ready
    • D7 Expansion Module ready
    • Support for USB WiFi stick
    • Electronic Hook Switch (EHS) support for wireless headsets
    • Dual-angle footstand: 46° and 28°


Zero touch provisioning eliminates the need for manual labor typically involved with installation. Power over Ethernet (PoE) support and dual Ethernet ports makes the system cost-effective and easy to use. The USB port allows additional connectivity, including up to three D7 expansion modules for increased visibility and one-button options. The system features multiple configurations, including three programmable feature keys, four soft keys and 14 dedicated feature keys. You'll feel safe with powerful security features like VPN support.

Snom D717W Technical Specifications

Phone Features

  • 6 SIP identities / accounts
  • XML browser
  • Call lists for dialed, received, missed calls
  • Local directory with 1000 entries
  • Multiple language support
  • DTMF in-band / out-of-band / SIP-INFO
  • Interoperable with all major IP PBX Platforms
  • Speed dialing
  • URL dialing
  • Local dial plan
  • Automatic redial on busy
  • Call completion (busy/unreachable)
  • Caller identification
  • Call waiting
  • Call blocking (deny list)
  • Auto answer
  • Hold
  • Music on hold
  • Blind and attended transfer
  • Call forwarding
  • 3-way conferencing on the phone
  • Extension monitoring, call pickup
  • Call park, call unpark
  • Multicast paging
  • DND mode (do not disturb)
  • Keyboard lock
  • Client matter code (CMC)
  • Unified Communications ready


  • Codecs:
    - G.711 A-law, μ-law
    - G.722 (wideband)
    - G.726, G.729AB, GSM 6.10 (FR)
  • Built-in assignable ringtones
  • Comfort noise generator (CNG)<
