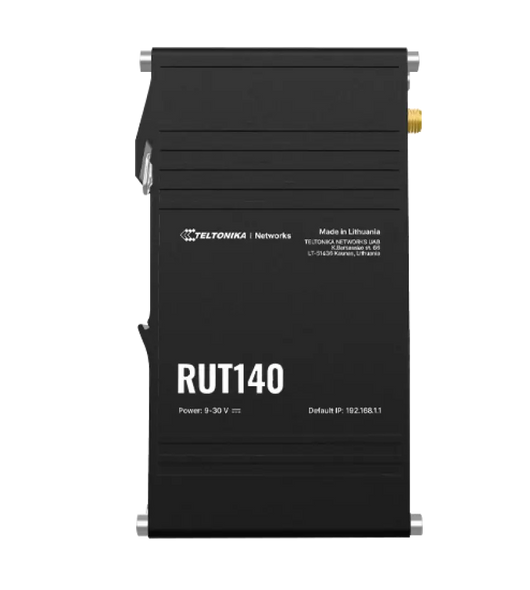

Teltonika RUT140 Industrial Ethernet Router

Teltonika RUT140 Industrial Ethernet Router Technical Specifications

WIRELESS

• Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• WiFi security:
  • WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK
  • AES-CCMP, TKIP, Auto Cipher modes, client separation
• SSID/ESSID: ESSID stealth mode
• Wi-Fi users: Up to 50 simultaneous connections
• Wireless Connectivity Features:
  • Wireless mesh (802.11s)
  • Fast roaming (802.11r)
  • Relayd
  • BSS transition management (802.11v)
  • Radio resource measurement (802.11k)
• Wireless MAC filter: Whitelist, blacklist
• Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information.

ETHERNET

• WAN: 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
• LAN: 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

NETWORK

• Routing:
  • Static routing
  • Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
  • Policy based routing
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall:
  • Port forward
  • Traffic rules
  • Custom rules
• Firewall status page: View all your Firewall statistics, rules, and rule counters
• Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology: Visual representation of your network, showing which devices are connected to which other devices
• DHCP: Static and dynamic IP allocation, DHCP Relay
• QoS / Smart Queue Management (SQM):
  • Traffic priority queuing by source/destination, service, protocol or port
  • WMM, 802.11e
• DDNS: Supported >25 service providers, others can be configured manually
• Network backup: Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing: Balance Internet traffic over multiple WAN connections
• Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customized hotspot themes
• SSHFS: Possibility to mount remote file system via SSH protocol

NETWORK (continued)

• VLAN: Port and tag-based VLAN separation
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of SSH, Web interface, CLI and Telnet

VPN

• OpenVPN:
  • Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption: (List omitted for brevity)
• IPsec: (List omitted for brevity)
• GRE: GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN: Method of building scalable IPsec VPNs
• SSTP: SSTP client instance support
• ZeroTier: ZeroTier VPN client support
• WireGuard: WireGuard VPN client and server support
• Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
• Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
