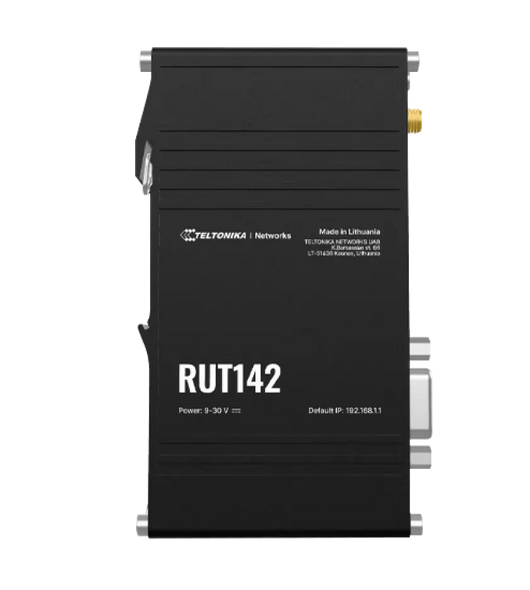

Teltonika RUT142 RS232 Industrial Router
Teltonika RUT142 RS232 Industrial Router
The Teltonika RUT142 RS232 Industrial Router stands out as a compact industrial Ethernet router designed to bolster security by implementing network isolation for end devices. Featuring the RS232 serial interface, two Ethernet ports, DIN rail compatibility, and an industrial 3-pin connector, it guarantees smooth connectivity and straightforward installation.
- 2 x 10/100 Mbps Ethernet ports, Wi-Fi 4
- RS232 for serial communication
- Integrated DIN rail and a 3-pin power connector
- Remote management, access & VPN services
This router is equipped with RutOS and Wi-Fi 4, supporting various industrial protocols including Modbus, DLMS, DNP3, and OPC UA. Additionally, it seamlessly integrates with RMS for streamlined remote and on-site management efficiency.
Teltonika RUT142 RS232 Industrial Router Technical Specifications
WIRELESS
- Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID/ESSID: ESSID stealth mode
- Wi-Fi users: Up to 50 simultaneous connections
- Wireless Connectivity Features:
- Wireless mesh (802.11s)
- Fast roaming (802.11r)
- Relayd
- BSS transition management (802.11v)
- Radio resource measurement (802.11k)
- Wireless MAC filter: Whitelist, blacklist
- Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information.
ETHERNET
- WAN: 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN: 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
- Routing:
- Static routing
- Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
- Policy based routing
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall:
- Port forward
- Traffic rules
- Custom rules
- Firewall status page: View all your Firewall statistics, rules, and rule counters
- Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology: Visual representation of your network, showing which devices are connected to which other devices
- DHCP: Static and dynamic IP allocation, DHCP Relay
- QoS / Smart Queue Management (SQM):
- Traffic priority queuing by source/destination, service, protocol or port
- WMM, 802.11e
- DDNS: Supported >25 service providers, others can be configured manually
- Network backup: Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing: Balance Internet traffic over multiple WAN connections
- Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- SSHFS: Possibility to mount remote file system via SSH protocol
SECURITY
- Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag-based VLAN separation
- WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control: Flexible access control of SSH, Web interface, CLI and Telnet
VPN
- OpenVPN:
- Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption: (List omitted for brevity)
- IPsec: (List omitted for brevity)
- GRE: GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN: Method of building scalable IPsec VPNs
- SSTP: SSTP client instance support
- ZeroTier: ZeroTier VPN client support
- WireGuard: WireGuard VPN client and server support
- Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
- Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
Description
Teltonika RUT142 RS232 Industrial Router
The Teltonika RUT142 RS232 Industrial Router stands out as a compact industrial Ethernet router designed to bolster security by implementing network isolation for end devices. Featuring the RS232 serial interface, two Ethernet ports, DIN rail compatibility, and an industrial 3-pin connector, it guarantees smooth connectivity and straightforward installation.
- 2 x 10/100 Mbps Ethernet ports, Wi-Fi 4
- RS232 for serial communication
- Integrated DIN rail and a 3-pin power connector
- Remote management, access & VPN services
This router is equipped with RutOS and Wi-Fi 4, supporting various industrial protocols including Modbus, DLMS, DNP3, and OPC UA. Additionally, it seamlessly integrates with RMS for streamlined remote and on-site management efficiency.
Teltonika RUT142 RS232 Industrial Router Technical Specifications
WIRELESS
- Wireless mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
- WiFi security: WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
- SSID/ESSID: ESSID stealth mode
- Wi-Fi users: Up to 50 simultaneous connections
- Wireless Connectivity Features:
- Wireless mesh (802.11s)
- Fast roaming (802.11r)
- Relayd
- BSS transition management (802.11v)
- Radio resource measurement (802.11k)
- Wireless MAC filter: Whitelist, blacklist
- Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information.
ETHERNET
- WAN: 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN: 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
NETWORK
- Routing:
- Static routing
- Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP)
- Policy based routing
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL)
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall:
- Port forward
- Traffic rules
- Custom rules
- Firewall status page: View all your Firewall statistics, rules, and rule counters
- Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology: Visual representation of your network, showing which devices are connected to which other devices
- DHCP: Static and dynamic IP allocation, DHCP Relay
- QoS / Smart Queue Management (SQM):
- Traffic priority queuing by source/destination, service, protocol or port
- WMM, 802.11e
- DDNS: Supported >25 service providers, others can be configured manually
- Network backup: Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing: Balance Internet traffic over multiple WAN connections
- Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes and option to upload and download customised hotspot themes
- SSHFS: Possibility to mount remote file system via SSH protocol
SECURITY
- Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block
- Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag-based VLAN separation
- WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control: Flexible access control of SSH, Web interface, CLI and Telnet
VPN
- OpenVPN:
- Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption: (List omitted for brevity)
- IPsec: (List omitted for brevity)
- GRE: GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN: Method of building scalable IPsec VPNs
- SSTP: SSTP client instance support
- ZeroTier: ZeroTier VPN client support
- WireGuard: WireGuard VPN client and server support
- Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
- Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
Download
Download File
Teltonika RUT142 RS232 Industrial Router
£74.76
