TP-Link 300Mbps Wireless N Outdoor Access Point (EAP110-Outdoor)
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020

TP-Link 300Mbps Wireless N Outdoor Access Point (EAP110-Outdoor)

Available:In Stock

TP-Link 300Mbps Wireless N Outdoor Access Point (EAP110-Outdoor)

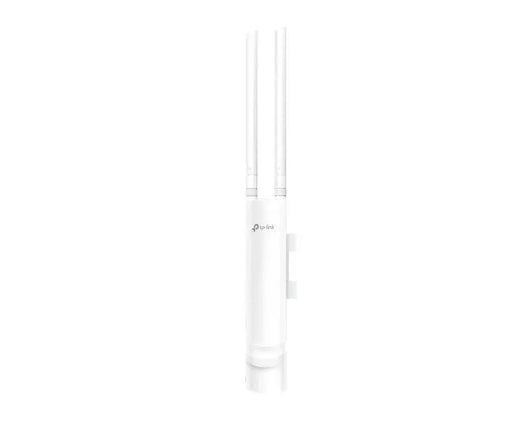

The TP-Link EAP110-Outdoor is an outdoor wireless N access point. EAP110-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands. With high transmission power and two high-gain omnidirectional antennas, EAP110-Outdoor provides stable wireless coverage at a range of up to 200 meters in outdoor settings. Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.

TP-Link EAP110-Outdoor Key Features

  • Built for outdoor Wi-Fi applications
  • Up to 300Mbps Wi-Fi with 2x2 MIMO technology
  • High transmission power and high gain antennas provide a long-range coverage area
  • Durable, weatherproof enclosure to withstand fair and foul weather
  • Passive PoE(Power over Ethernet) support and simple mounting design allow for flexible deployment and convenient installation
  • Cloud centralised management and Omada app for ultra convenience and easy management
  • Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
  • Supports management vlan for an enhanced network management

TP-Link EAP110-Outdoor - Technical Specifications

Hardware Features

  • Interface: Fast Ethernet (RJ-45) Port *1(Support Passive PoE)
  • Button: Reset
  • Power Supply: 24VDC / 0.6A Passive PoE Supply
  • Power Consumption: 3.12 W
  • Dimensions ( W x D x H ): 8.5 × 1.8 × 1.1 in. (216 × 46 × 27 mm)
  • Antenna Type: 2*3dBi External Omni waterproof
  • Weatherproof Enclosure: IP65
  • Mounting: Pole /Wall Mounting (Kits included)

Wireless Features

  • Wireless Standards: IEEE 802.11n/g/b
  • Frequency: 2.4 GHz
  • Signal Rate:
    - 11n: Up to 300Mbps(dynamic)
    - 11g: Up to 54Mbps(dynamic)
    11b: Up to 11Mbps(dynamic)
  • Wireless Functions:
    - Multiple SSIDs (Up to 8 SSIDs)
    - Enable/Disable Wireless Radio
    - Automatic Channel Assignment
    - Transmit Power Control (Adjust Transmit Power on dBm)
    - QoS(WMM)
    - Load Balance
    - Rate Limit
    - Reboot Schedule
    - Wireless Schedule
    - Wireless Statistics based on SSID/AP/Client
  • Wireless Security:
    - Captive Portal Authentication
    - Access Control
    - Wireless Mac Address Filtering
    - Wireless Isolation Between Clients
    - SSID to VLAN Mapping
    - Rogue AP Detection
    - 802.1X Support
    64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
  • Transmission Power:
    - CE: ≤20dBm(EIRP)
    - FCC: ≤22dBm


  • Omada App: Yes
  • Auranet Controller Software: Yes
  • Centralised Management:
    - Omada Cloud-Based Controller
    - Omada Hardware Controller (OC300)
    - Omada Hardware Controller (OC200)
    - Omada Software Controller
  • Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: Yes
  • System Logging Local/Remote Syslog: Yes
  • Telnet: Yes
  • SSH: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes


  • Certification: CE, FCC, RoHS
  • Package Contents:
    300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor
    - Passive PoE Adapter

    - Power Cord
    - Mounting Kits
    - Waterproof Rubber Insert
    - Waterproof Antennas
    - Installation Guide
  • System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
  • Environment:
    - Operating Temperature: -30℃~65℃ (-22℉~149℉)
    - Storage Temperature: -40–70 ℃ (-40–158 ℉)
    - Operating Humidity: 10–90% RH non-condensing
    - Storage Humidity: 5–90% RH non-condensing
