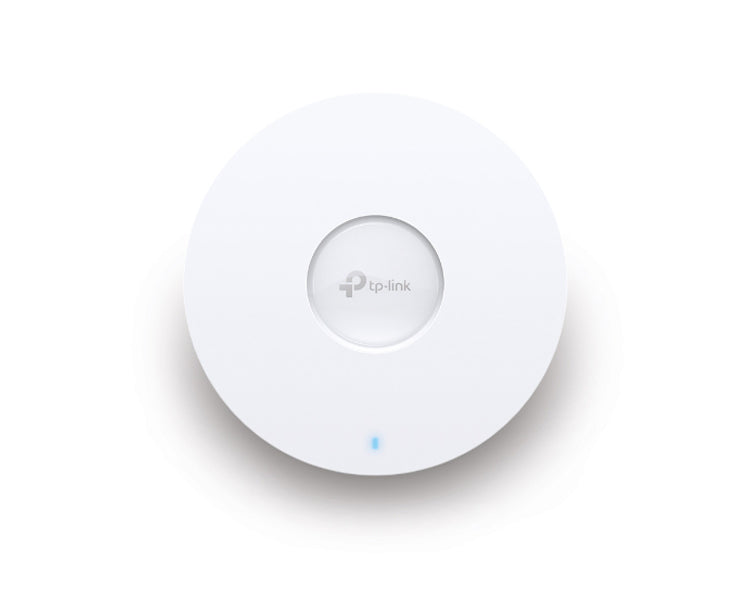

TP-Link AX3600 Ceiling Mount Dual-Band Wi-Fi 6 Access Point (EAP660 HD)
- Category:ALL PRODUCTS,Best selling products,New products,TP-Link Access Points: Enhance Your Wireless Network,WiFi 6: The Next Generation of Wireless Technology
TP-Link AX3600 Ceiling Mount Dual-Band Wi-Fi 6 Access Point (EAP660 HD)
The TP-Link EAP660 HD is a wireless dual band multi-gigabit ceiling mount access point featuring increased network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before. The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
TP-Link EAP660 HD Key Features
- Ultra-Fast Wi-Fi 6 Speeds: Simultaneous 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 3550 Mbps Wi-Fi speeds.
- High-Density Connectivity: 4× increased capacity to connect more devices simultaneously.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)§, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- 2.5G Port: A 2.5 Gbps Ethernet port boosts total internet throughput.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- PoE+ Support: Supports Power over Ethernet (802.3at) for convenient deployment and installation.
- Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
TP-Link EAP660 HD - Technical Specifications
Hardware Features
- Interface: 1x 2.5 Gbps Ethernet Port (supports IEEE802.3at PoE)
- Button:Reset
- Power Supply:
- 802.3at PoE
- 12 V DC - Power Consumption:
- EU: 18.5 W
- US: 21.5 W - Dimensions ( W x D x H ): 9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
- Antenna Type: Internal Omni
- 2.4 GHz: 4× 4 dBi
- 5 GHz: 4× 5 dBi - Mounting: Ceiling /Wall Mounting (Kits included)
Wireless Features
- Wireless Standards: IEEE 802.11ax/ac/n/g/b/a
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate:
- 5 GHz: Up to 2402 Mbps
- 2.4 GHz: Up to 1148 Mbps - Wireless Functions:
- 1024-QAM
- 4× Longer OFDM Symbol
- OFDMA
- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
- Enable/Disable Wireless Radio
- Automatic Channel Assignment
- Transmit Power Control (Adjust Transmit Power on dBm)
- QoS(WMM)
- MU-MIMO
- Seamless Roaming
- Band Steering
- Load Balance
- Airtime Fairness
- Beamforming
- Rate Limit
- Reboot Schedule
- Wireless Schedule
- Wireless Statistics based on SSID/AP/Client - Wireless Security:
- Captive Portal Authentication
- Access Control
- Wireless Mac Address Filtering
- Wireless Isolation Between Clients
- SSID to VLAN Mapping
- Rogue AP Detection
- 802.1X Support
- WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise - Transmission Power:
- CE:<20 dBm(2.4 GHz, EIRP), <23 dBm(5 GHz, EIRP)
- FCC:<26 dBm (2.4 GHz), <26 dBm (5 GHz)
Management
- Omada App: Yes
- Centralised Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller (OC300)
- Omada Hardware Controller (OC200)
- Omada Software Controller - Cloud Access: Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
- Email Alerts: Yes
- LED ON/OFF Control: Yes
- Management MAC Access Control: Yes
- SNMP: v1, v2c, v3
- System Logging Local/Remote Syslog: Local/Remote Syslog
- SSH: Yes
- Web-based Management: HTTP/HTTPS
- L3 Management: Yes
- Multi-site Management: Yes
- Management VLAN: Yes
Other
- Certification: CE, FCC, RoHS
- Package Contents:
- EAP660 HD
- Power Adapter
- Ceiling/Wall Mounting Kits
- Installation Guide - System Requirements: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
- Environment:
- Operating Temperature: 0–40 ℃ (32–104 ℉)
- Storage Temperature: -40–70 ℃ (-40–158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
