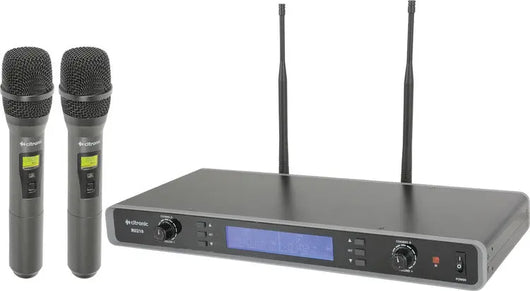

Tuneable Dual UHF Handheld Microphone System

Tuneable Dual UHF Handheld Microphone System

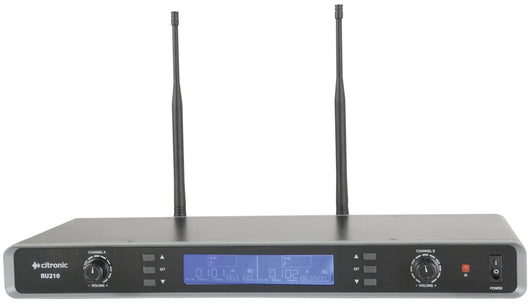

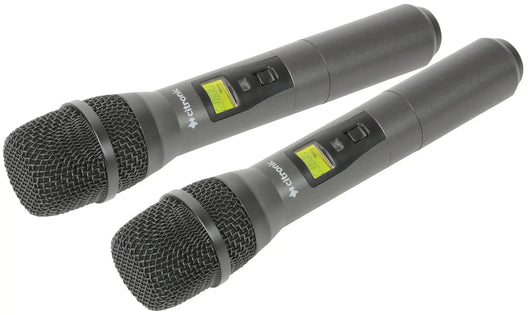

Dual channel PLL tuneable UHF wireless system with 2 handheld transmitters. The receiver unit is compatible with standard 19" racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronised to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU licence-free band.

• PLL tunable with 81 UHF frequencies
• Licence free operation in UK & EU
• Pilot tone & mute circuit for stable signal
• Rack-mounting accessories included
• Supplied with mains adaptor and 4 x AA batteries

• Power supply12-18Vdc, 500mA (mains adaptor included)
• Carrier frequencies863 - 865MHz (81 selectable frequencies)
• Range60m
• Batteries4 x AA (2 per transmitter - included)
• Signal to noise ratio>105dB
• THD<0.5% @ 1KHz
• Frequency response50Hz-18KHz ±1 dB
• Image rejection>85dB
• Output impedance2.2k Ohms
• Output level400mV (balanced), 200mV (unbalanced)
• Dimensions : receiver44 x 409 x 190mm
• Weight : receiver1.37kg
• Dimensions : transmitter265 x 49mmØ
• Weight : transmitter330g (no battery)
