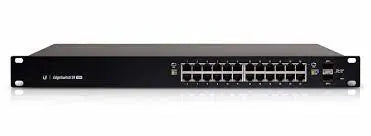

Ubiquiti EdgeSwitch 24 Port 250W Gigabit Switch (ES 24-250W)

Available:In Stock
£359.40
Please Note: If you need a storage cabinet for this product, please select from the Available Product Options above. See All-Rack for full details.

Ubiquiti EdgeSwitch PoE+ Gigabit Switch (ES-24-250W)

The Ubiquiti EdgeSwitch ES- 24 250W is a 24-Port, fully managed, PoE+ Gigabit switch, delivering 250W intelligent switching performance for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer 2 switching features and protocols, and also provides Layer 3 routing capabilities.

Ubiquiti EdgeSwitch ES-24-250W Key Features

  • Total Non-Blocking Throughput - 26 Gbps
  • Gigabit RJ45 Ports - 24
  • SFP Ports - 2
  • Max. Power Consumption - 250W
  • Supports POE+ IEEE 802.3at/af and 24V Passive PoE
Optical Fiber Backhaul
Ubiquiti EdgeSwitch ES-24-250W features two SFP ports, which support uplinks of up to 1 Gbps.
10 GB SFP+Convenient PoE+ Support
Ubiquiti EdgeSwitch ES-24-250W also features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
Gigabit PoEAdvanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.



Advanced user interface



Deployment example diagrams

Ubiquiti EdgeSwitch ES-24-250W - Technical Specifications

General

  • Dimensions: 485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24")
  • Weight: 4.7 kg (10.4 lb)
  • Total Non-Blocking Throughput: 26 Gbps
  • Switching Capacity: 52 Gbps
  • Forwarding Rate: 38.69 Mpps
  • Max. Power Consumption:
    - Includes PoE Output: 250W
    - Excludes PoE Output: 30W
  • Power Method: 100-240VAC/50-60 Hz, Universal Input
  • Power Supply: AC/DC, Internal, 250W DC
  • LEDs Per Port:
    - RJ45 Data Ports: PoE, Speed/Link/Activity
    - SFP Data Ports: Speed/Link/Activity
  • Networking Interfaces:
    - (24) 10/100/1000 Mbps RJ45 Ethernet Ports
    - (2) 1 Gbps SFP Ethernet Ports
  • Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
  • Certifications:
    - CE
    - FCC
    - IC
  • Rackmount: Yes, 1U High
  • ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Shock and Vibration: ETSI300-019-1.4 Standard

PoE Per Port

  • PoE Interfaces:
    - POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    - 24VDC Passive PoE (Pins 4, 5+; 7, 8-)
  • Max. PoE+ Wattage per Port by PSE 34.2W
  • Voltage Range 802.3at Mode 50–57V
  • Max. Passive PoE Wattage per Port 17W
  • 24V Passive PoE Voltage Range 20-27V
