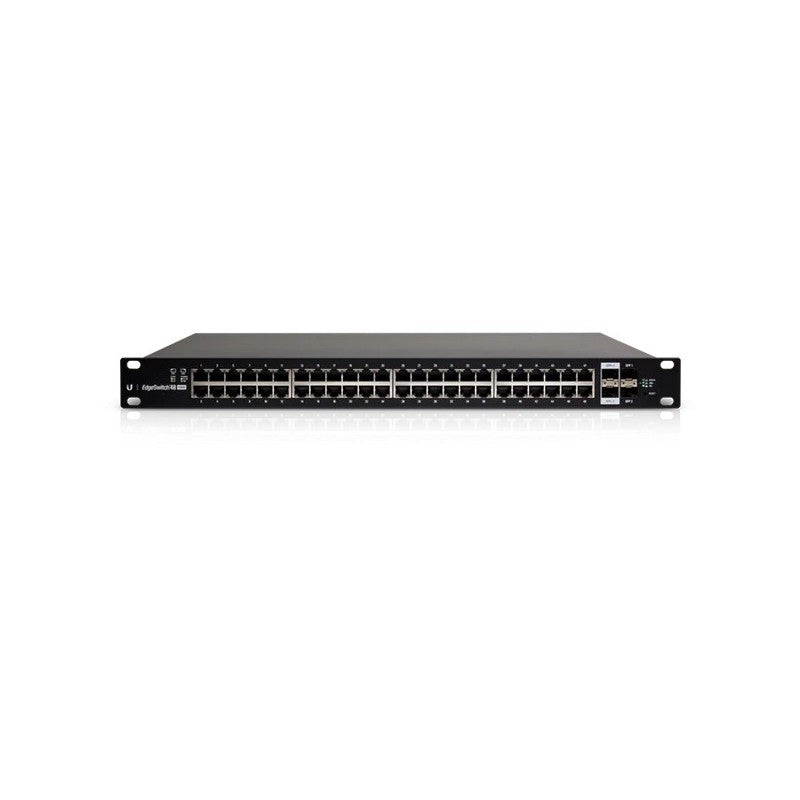

Ubiquiti EdgeSwitch 48 Port PoE+ Switch (ES-48-500W)
Ubiquiti EdgeSwitch (ES-48-500W)
The Ubiquiti EdgeSwitch 48 500W is a fully managed, 48 Port PoE+ Gigabit switch that delivers robust performance and intelligent switching for growing networks. It delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Ubiquiti EdgeSwitch ES-48-500W Key Features
- Total Non-Blocking Throughput - 70 Gbps
- Gigabit RJ45 Ports - 48
- SFP+ Ports - 2
- SFP Ports - 2
- Max. Power Consumption - 500W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Rackmountable
- Product Model Number: ES-48-500W
|
Enterprise-Class Features The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
|
Optical Fibre Backhaul Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps. |
|
Convenient PoE+ Support The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
|
Advanced UI The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
|
General
- Dimensions: 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
- Weight: 6.1 kg (13.5 lb)
- Total Non-Blocking Throughput: 70 Gbps
- Switching Capacity: 140 Gbps
- Forwarding Rate: 104.16 Mpps
- Max. Power Consumption:
- Includes PoE Output: 500W
- Excludes PoE Output: 64W - Power Method: 100-240VAC/50-60 Hz, Universal Input
- Power Supply: AC/DC, Internal, 500W DC
- LEDs Per Port:
- RJ45 Data Ports: PoE, Speed/Link/Activity
- SFP+/SFP Data Ports: Speed/Link/Activity - Networking Interfaces:
- (48) 10/100/1000 Mbps RJ45 Ethernet Ports
- (2) 1/10 Gbps SFP+ Ethernet Ports
- (2) 1 Gbps SFP Ethernet Ports - Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
- Certifications:
- CE
- FCC
- IC - Rackmount: Yes, 1U High
- ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Shock and Vibration: ETSI300-019-1.4 Standard
PoE Per Port
- PoE Interfaces:
- POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- 24VDC Passive PoE (Pins 4, 5+; 7, 8-) - Max. PoE+ Wattage per Port by PSE: 34.2W
- Voltage Range 802.3at Mode: 50–57V
- Max. Passive PoE Wattage per Port: 17W
- 24V Passive PoE Voltage Range: 20-27V
Ubiquiti EdgeSwitch (ES-48-500W)
The Ubiquiti EdgeSwitch 48 500W is a fully managed, 48 Port PoE+ Gigabit switch that delivers robust performance and intelligent switching for growing networks. It delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Ubiquiti EdgeSwitch ES-48-500W Key Features
- Total Non-Blocking Throughput - 70 Gbps
- Gigabit RJ45 Ports - 48
- SFP+ Ports - 2
- SFP Ports - 2
- Max. Power Consumption - 500W
- Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- Rackmountable
- Product Model Number: ES-48-500W
|
Enterprise-Class Features The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
|
Optical Fibre Backhaul Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps. |
|
Convenient PoE+ Support The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
|
Advanced UI The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
|
General
- Dimensions: 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")
- Weight: 6.1 kg (13.5 lb)
- Total Non-Blocking Throughput: 70 Gbps
- Switching Capacity: 140 Gbps
- Forwarding Rate: 104.16 Mpps
- Max. Power Consumption:
- Includes PoE Output: 500W
- Excludes PoE Output: 64W - Power Method: 100-240VAC/50-60 Hz, Universal Input
- Power Supply: AC/DC, Internal, 500W DC
- LEDs Per Port:
- RJ45 Data Ports: PoE, Speed/Link/Activity
- SFP+/SFP Data Ports: Speed/Link/Activity - Networking Interfaces:
- (48) 10/100/1000 Mbps RJ45 Ethernet Ports
- (2) 1/10 Gbps SFP+ Ethernet Ports
- (2) 1 Gbps SFP Ethernet Ports - Management Interface: (1) RJ45 Serial Port, Ethernet In/Out Band
- Certifications:
- CE
- FCC
- IC - Rackmount: Yes, 1U High
- ESD/EMP Protection: Air: ±24 kV, Contact: ±24 kV
- Operating Temperature: -5 to 40° C (23 to 104° F)
- Operating Humidity: 5 to 95% Noncondensing
- Shock and Vibration: ETSI300-019-1.4 Standard
PoE Per Port
- PoE Interfaces:
- POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
- 24VDC Passive PoE (Pins 4, 5+; 7, 8-) - Max. PoE+ Wattage per Port by PSE: 34.2W
- Voltage Range 802.3at Mode: 50–57V
- Max. Passive PoE Wattage per Port: 17W
- 24V Passive PoE Voltage Range: 20-27V
