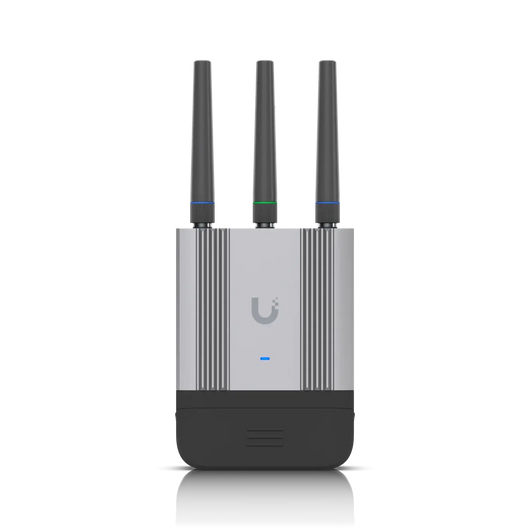

Ubiquiti Mobile Router Industrial (UMR-Industrial)

£199.06

Ubiquiti Mobile Router Industrial (UMR-Industrial)

The Ubiquiti UMR-Industrial is a compact, ruggedised, and carrier unlocked LTE Cat 4 mobile WiFi router designed for indoor/outdoor IoT applications.

Ubiquiti UMR-Industrial Key Features:

  • Site-to-site VPN and VPN client routing
  • (2) GbE ports with (1) PoE output
  • Powered using PoE, USB Type-C, or 4-pin DC power socket
  • Outdoor GPS location tracking
  • Flexible wall, pole, and DIN rail mounting
  • Weatherproof (outdoor exposed) with the included cover
  • Optional Mobility Cloud subscription

The UMR-Industrial is a versatile networking device featuring site-to-site VPN and VPN client routing capabilities, making it ideal for secure remote connections. It includes two GbE ports, one of which provides PoE output, and can be powered via PoE, USB Type-C, or a 4-pin DC power socket. Designed for outdoor use, it offers GPS location tracking and can be easily mounted on walls, poles, or DIN rails. The device is weatherproof with the included outdoor cover, ensuring durability in exposed environments. Additionally, an optional Mobility Cloud subscription enhances its functionality for mobile applications.

Ubiquiti UMR-Industrial Technical Specifications

Mechanical

  • Dimensions
    • Without outdoor cover: 114.5 x 93.6 x 32 mm (4.5 x 3.7 x 1.3")
    • With outdoor cover: 217 x 94 x 32 mm (8.5 x 3.7 x 1.3")
  • Weight
    • Device: 360 g (12.7 oz)
    • Device with outdoor cover: 395 g (13.9 oz)
    • DIN rail/wall mounts: 25 g (0.9 oz)
  • Enclosure material
    • Polycarbonate, aluminum
  • Mount material
    • Wall/pole mount: polycarbonate
    • DIN rail mount: polycarbonate
  • Pole mount diameter
    • 1–2" on pipe outer diameter
  • Wind loading
    • 38.8 N at 200 km/h (8.7 lbf at 125 mph)
  • Weatherproofing
    • Device with outdoor cover: IP66

Hardware

  • Management interface
    • Ethernet
    • WiFi
  • Networking interface
    • (2) GbE RJ45 ports
    • LTE Category 4 radio
    • WiFi 4
  • PoE interface
    • (1) PoE input
    • (1) PoE output* (Max. 10W)
    • *Requires a PoE+ switch.
  • Power supply
    • UniFi PoE switch (48—54V DC)
    • USB Type-C (5V DC)
    • 4-pin* ATX DC power socket (9—30V DC)
    • *Pin 1 for Power + and Pin 2 for Ground –. Please refer to the Installation Guide for detailed power socket pinout.
  • Max. power consumption
    • 12.5W
  • SIM
    • nano-SIM (4FF)
  • LTE bands
    • B1, B3, B7, B8, 20, B28
  • 3G bands
    • B1, B8
  • LTE throughput speed*
    • Download 150 Mbps / Upload 50 Mbps
    • *Speed depends on network coverage and performance at the device location.
  • WiFi standards
    • 802.11 b/g/n, WiFi 2.4G, 20/40 MHz
  • Max. WiFi TX power
    • 22 dBm
  • WiFi MIMO
    • 2 x 2
  • GPS
    • Yes
  • Antenna SMA ports
    • (1) Mobile 1: SMA female connector, supports 1Tx and 1Rx
    • (1) Mobile 2: SMA female connector, supports 1Rx only
    • (1) GPS: SMA female connector
    • (2) WiFi: RP-SMA female connectors
    • Note: Ensure all SMA / RP-SMA connectors are secured with antennas or the provided caps to maintain weatherproofing.
  • External antennas
    • (2) Mobile/LTE antennas with SMA male connectors
    • (1) GPS antenna with SMA male connector
    • (2) WiFi antennas with RP-SMA male connectors
  • LED
    • Status: blue/white
  • Button
    • Factory reset
  • Mounting
    • DIN rail/wall/pole mount (Included)
  • Ambient operating temperature
    • -40 to 70° C (-40 to 158° F)
  • Ambient operating humidity
    • 5 to 95% noncondensing
  • Certifications
    • CE, GCF, Wi-Fi Alliance®
  • Supported WiFi Data Rates
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS7, HT 20/40)
