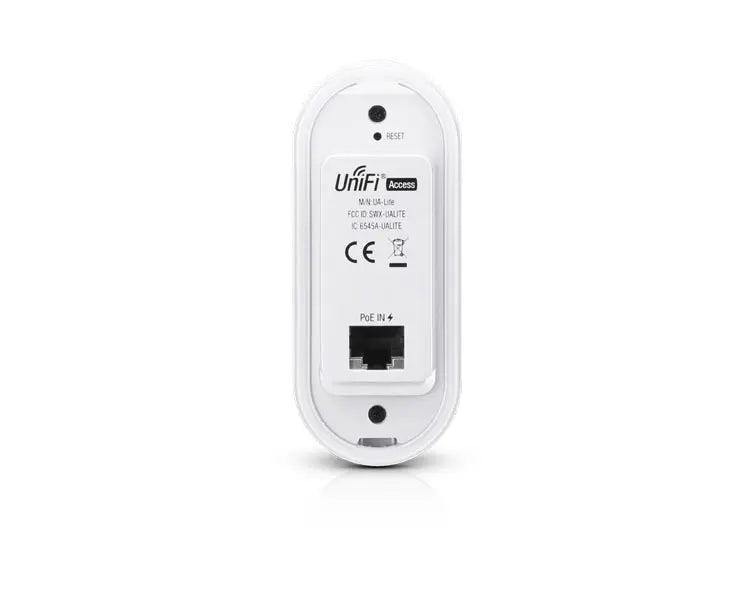

Ubiquiti UniFi Access Reader Lite (UA-Reader Lite)

The Ubiquiti UA-Reader Lite is a modern NFC and Bluetooth reader, a part of the UniFi Access solution. The UniFi Access Reader Lite has been designed for convenient use and secure access. The PoE powered reader is easy to install and supports the latest NFC security standards including AES-128 encrypted MIFARE DESFire. Unlocking the door is quick and secure with NFC card or with mobile app.

Ubiquiti UA-Reader Lite Key Features

Elegantly designed NFC and Bluetooth reader
802.3af PoE powered by UniFi Access Hub
Advanced NFC credentials, including MIFARE DESFire
Built-in security element chip
For the best NFC security, use with our UA-Card
Mobile access with app (future software release)
UA-Lite will be shipped in silver color

UA Deployment

Ubiquiti UA-Reader Lite - Technical Specifications

UA-Lite

Dimensions: 94.91 x 40.00 x 31.10 mm (3.74 x 1.57 x 1.22")
Weight: 65 g (2.29 oz)
Mounting Options: Wall-Mount
Networking Interface: 10/100 Mbps Ethernet
Max. Power Consumption: 6W
Power Method: 802.3af PoE
IP Rating: IP54
Button: (1) Reset
LEDs: White/Blue
Connectivity: Ethernet, BLE 4.1
Operating Temperature: -40 to 40° C(-40 to 104° F)
Operating Humidity: 5 to 90% Noncondensing
Certifications: CE, FCC, IC

NFC

Frequency: 13.56 MHz
Read Range: <30mm
Standards: ISO 14443A, 14443B, 15693
Technology:
- NFC Tag 1, 2, 3, 4, 5
- MIFARE Classic
- MIFARE Plus
- MIFARE Ultralight
- MIFARE DESFire EV1/EV2
