Ubiquiti UniFi Enterprise 7 Access Point (E7)

£499.00

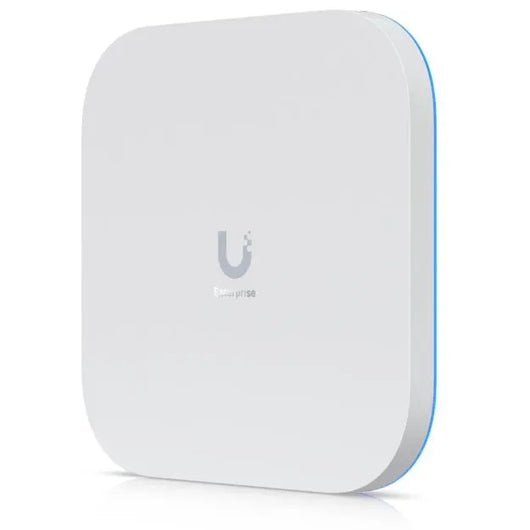

Ubiquiti UniFi Enterprise 7 Access Point

The Ubiquiti UniFi Enterprise 7 is an advanced indoor access point offering 10-stream WiFi 7 performance, a 10 GbE uplink for blazing-fast speeds, and a redundant GbE port to ensure high availability and reliability.is an advanced indoor access point offering 10-stream WiFi 7 performance, a 10 GbE uplink for blazing-fast speeds, and a redundant GbE port to ensure high availability and reliability.

This enterprise-grade indoor access point delivers 10-stream WiFi 7 performance, including 6 GHz support, ensuring ultra-fast speeds and reliable connections. With 10 spatial streams and long-range 6 GHz performance enhanced by AFC*, it provides coverage of up to 185 m² (2,000 ft²) and supports over 1,000 connected devices, making it ideal for high-demand environments.


E7 Setup

E7 Key Features:

  • Wi-Fi 7 with 6 GHz Support
  • 10 spatial streams
  • Dedicated spectral analyser radio
  • Long-range 6 GHz performance with AFC*
  • 185 m² (2,000 ft²) Coverage
  • Supports 1,000+ Connected Devices
  • Backwards compatible mounting system**
  • Powered using PoE++
Ubiquiti UniFi E7 Setup



Equipped with a dedicated spectral analyser radio for real-time spectral analysis, this access point optimises channel selection for enhanced network performance. Its dual-port design includes a 10 GbE RJ45 uplink and a GbE RJ45 port for power and data redundancy, ensuring high availability. Powered by PoE++ and featuring a backwards-compatible mounting system**, it simplifies installation and integration into existing setups.

E7 Technical Specifications

Mechanical

  • Dimensions: 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7")
  • Weight: 1.8 kg (4 lb)
  • Enclosure material: UV-stabilized polycarbonate, aluminum alloy
  • Mount material: Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

  • Networking interface: (1) 10 GbE RJ45 port (1) 1GbE RJ45 port
  • Management interface: Ethernet
  • Power method: PoE++
  • Power supply: UniFi PoE Switch
  • Supported voltage range: 42.5—57V DC
  • Max. power consumption: 43W
  • Max. TX power
    • 2.4 GHz: 23 dBm
    • 5 GHz: 30 dBm
    • 6 GHz: 24dBm/30* dBm *With 6 GHz Extended Range mode. Available in FCC/IC region only
  • MIMO
    • 2.4 GHz: 2 x 2
    • 5 GHz: 4 x 4
    • 6 GHz: 4 x 4
  • Throughput rate
    • 2.4 GHz: 688 Mbps
    • 5 GHz: 8.6 Gbps
    • 6 GHz: 11.5 Gbps
  • Antenna gain
    • 2.4 GHz: 5 dBi
    • 5 GHz: 6 dBi
    • 6 GHz: 6 dBi
  • Antennas: Internal with omni patterns
  • LEDs: R/G/B
  • Button: Factory reset
  • Mounting: Wall, ceiling (Included)
  • Ambient operating temperature: -30 to 50° C (-22 to 122° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC

Software

  • WiFi standards: 802.11a/b/g/n/ac/ax/be
  • Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • BSSID: 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Concurrent clients: 1000+
  • Supported Data Rates
    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS15, HT 20/40)
    • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    • 802.11be (WiFi 7): 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

Integrated PoE: Yes

Yes
Add to WishlistCompare

apple paygoogle payjcbmasterpaypalvisa
Ask a Question
Vendor: Ubiquiti
SKU:
Availability: In Stock Pre order Out of stock
Description

Ubiquiti UniFi Enterprise 7 Access Point

The Ubiquiti UniFi Enterprise 7 is an advanced indoor access point offering 10-stream WiFi 7 performance, a 10 GbE uplink for blazing-fast speeds, and a redundant GbE port to ensure high availability and reliability.is an advanced indoor access point offering 10-stream WiFi 7 performance, a 10 GbE uplink for blazing-fast speeds, and a redundant GbE port to ensure high availability and reliability.

This enterprise-grade indoor access point delivers 10-stream WiFi 7 performance, including 6 GHz support, ensuring ultra-fast speeds and reliable connections. With 10 spatial streams and long-range 6 GHz performance enhanced by AFC*, it provides coverage of up to 185 m² (2,000 ft²) and supports over 1,000 connected devices, making it ideal for high-demand environments.


E7 Setup

E7 Key Features:

  • Wi-Fi 7 with 6 GHz Support
  • 10 spatial streams
  • Dedicated spectral analyser radio
  • Long-range 6 GHz performance with AFC*
  • 185 m² (2,000 ft²) Coverage
  • Supports 1,000+ Connected Devices
  • Backwards compatible mounting system**
  • Powered using PoE++
Ubiquiti UniFi E7 Setup



Equipped with a dedicated spectral analyser radio for real-time spectral analysis, this access point optimises channel selection for enhanced network performance. Its dual-port design includes a 10 GbE RJ45 uplink and a GbE RJ45 port for power and data redundancy, ensuring high availability. Powered by PoE++ and featuring a backwards-compatible mounting system**, it simplifies installation and integration into existing setups.

E7 Technical Specifications

Mechanical

  • Dimensions: 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7")
  • Weight: 1.8 kg (4 lb)
  • Enclosure material: UV-stabilized polycarbonate, aluminum alloy
  • Mount material: Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

  • Networking interface: (1) 10 GbE RJ45 port (1) 1GbE RJ45 port
  • Management interface: Ethernet
  • Power method: PoE++
  • Power supply: UniFi PoE Switch
  • Supported voltage range: 42.5—57V DC
  • Max. power consumption: 43W
  • Max. TX power
    • 2.4 GHz: 23 dBm
    • 5 GHz: 30 dBm
    • 6 GHz: 24dBm/30* dBm *With 6 GHz Extended Range mode. Available in FCC/IC region only
  • MIMO
    • 2.4 GHz: 2 x 2
    • 5 GHz: 4 x 4
    • 6 GHz: 4 x 4
  • Throughput rate
    • 2.4 GHz: 688 Mbps
    • 5 GHz: 8.6 Gbps
    • 6 GHz: 11.5 Gbps
  • Antenna gain
    • 2.4 GHz: 5 dBi
    • 5 GHz: 6 dBi
    • 6 GHz: 6 dBi
  • Antennas: Internal with omni patterns
  • LEDs: R/G/B
  • Button: Factory reset
  • Mounting: Wall, ceiling (Included)
  • Ambient operating temperature: -30 to 50° C (-22 to 122° F)
  • Ambient operating humidity: 5 to 95% noncondensing
  • Certifications: CE, FCC, IC

Software

  • WiFi standards: 802.11a/b/g/n/ac/ax/be
  • Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
  • BSSID: 8 per radio
  • VLAN: 802.1Q
  • Advanced QoS: Per-user rate limiting
  • Guest traffic isolation: Supported
  • Concurrent clients: 1000+
  • Supported Data Rates
    • 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11b: 1, 2, 5.5, 11 Mbps
    • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    • 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS15, HT 20/40)
    • 802.11ac (WiFi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
    • 802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
    • 802.11be (WiFi 7): 7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
Download
Download File
Additional Information
Integrated PoE

Yes
