Ubiquiti UniFi Switch 16 XG - 10G 16-Port Managed Switch

Available:In Stock
£542.52
.

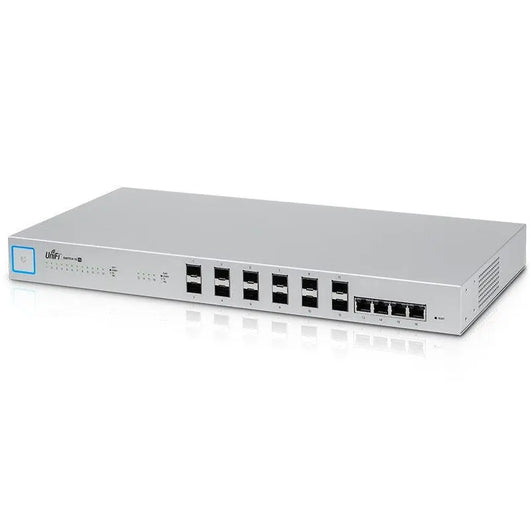

Ubiquiti UniFi Switch 16 XG - 10G 16-Port Managed Switch

Part of the UniFi range, the Ubiquiti US-16-XG is a 16 port 10Gb switch, boasting a huge non-blocking throughput of 160Gbps. The US-16-XG is also equipped with 12 10Gb SFP+ ports, alongside 4 10Gb RJ45 ports for flexible connectivity.

Ubiquiti UniFi Switch 16 XG Features

  • (12) 1G/10G SFP+ Ports
  • (4) 1G/10G RJ45 Ports
  • (1) RJ45 Serial Console Port
  • Non-Blocking Throughput: 160 Gbps
  • Switching Capacity: 320 Gbps
  • Forwarding Rate: 238.10 Mpps
  • Rack Mountable with Mount Brackets (Included)
  • DC Input Option (Redundant or Stand-Alone)

10G Aggregation Switch for Enterprise Networks
Build and expand your network with Ubiquiti Networks® UniFi® Switch 16 XG, part of the UniFi Enterprise System. The US-16-XG is a fully managed, 16 port, 10G fiber switch that enhances network capacity by providing high-bandwidth aggregation connectivity to multiple switches in your network. The US-16-XG offers an extensive suite of advanced Layer-2 switching features and protocols.
10G Aggregation Switch for Enterprise Networks

Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralised interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.
Multi-Site Management


10G High-Capacity Links
The US-16-XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For CAT 6/5e cable connectivity, the US-16-XG offers four 10G RJ45 ports.
10G High-Capacity Links

Seamless Integration
The UniFi® Switch integrates seamlessly into the UniFi Software-Defined Networking (SDN) platform to create a highly scalable, end-to-end system of network devices across multiple locations - all controlled from a single interface.


              Seamless Integration
                     Deployment

Ubiquiti UniFi Switch 16 XG - Technical Specifications

General

  • Dimensions: 443 x 221 x 43 mm (17.44 x 8.70 x 1.69")
  • Weight:
    - Without Mount Brackets: 2.62 kg (5.78 lb)
    - With Mount Brackets: 2.71 kg (5.97 lb)
  • Enclosure Characteristics: SGCC Steel
  • Total Non-Blocking Throughput: 160 Gbps
  • Switching Capacity: 320 Gbps
  • Forwarding Rate: 238.10 Mpps
  • Max. DC Power Consumption 36W (Excludes SFP/SFP+ Modules)
  • Power Method:
    - AC: 100-240VAC/50-60 Hz, Universal Input
    - DC: DC 56W, 57 to 20V, with 48/24VDC Terminal Block
  • Supported Voltage Range:
    - 100 to 240VAC
    - 57 to 20VDC
  • Power Supply: AC/DC, Internal, 56W DC
  • LEDs Per Data Port: Speed/Link/Activity
  • Sound Level (Background noise level: 27.5 dBa):
    - Fan Level 0: 1.0 dBr
    - Fan Level 1: 10.7 dBr
    - Fan Level 2: 12.2 dBr
    - Fan Level 3: 12.8 dBr
  • Networking Interfaces:
    - (12) 1/10 Gbps SFP+ Ethernet Ports
    - (4) 1/10 Gbps RJ45 Ethernet Ports
  • Management Interface: (1) RJ45 Serial Port Out-of-Band, Ethernet Ports In-Band
  • Certifications: CE, FCC, IC
  • Rack Mount: Yes, 1U High
  • ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 5 to 95% Noncondensing
  • Shock and Vibration: ETSI300-019-1.4 Standard
.
