Ubiquiti UniFi Switch Aggregation (USW-Aggregation)

Available:In Stock
£249.66
Please Note: If you are looking for storage for your data equipment, please see our selection of Allrack Cabinets

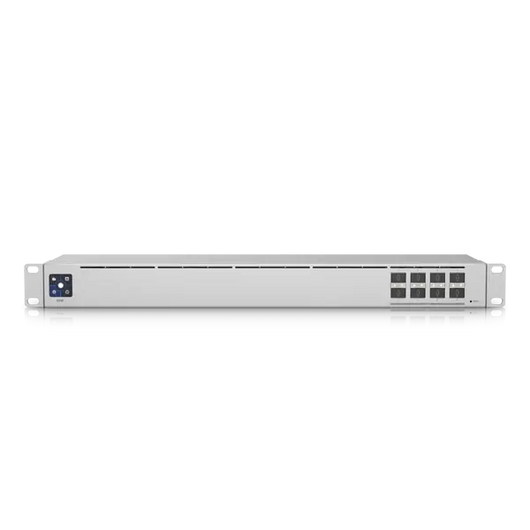

Ubiquiti UniFi Switch Aggregation (USW-Aggregation)

The Ubiquiti UniFi Aggregation Switch is a managed Layer 2 switch with eight 10G SFP+ ports. Featuring a compact 4.7" depth and fanless design, it supports high-bandwidth links to provide link aggregation for higher capacity and increased availability.

Ubiquiti UniFi Switch Aggregation Key Features

  • (8) 10G SFP+ Ports
  • 160 Gbps switching capacity
  • 1.3" Touchscreen with AR switch management
  • Fanless, 4.7" depth compact enclosure
  • 1U Rackmountable (kit included)
  • Managed by UniFi Network Controller (version: 5.43.13 or higher)
Ubiquiti Switch Aggregation Technical Specification

Mechanical

  • Dimensions: 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72")
  • Weight
    - Without Mount 2.65 kg (5.84 lb)
    - With Mount 2.74 kg (6.04 lb)
  • Enclosure Material: SGCC Steel

Hardware

  • Total Non-Blocking Throughput: 80 Gbps
  • Switching Capacity: 160 Gbps
  • Forwarding Rate: 119.04 Mpps
  • Max. Power Consumption: 30W
  • Power Method: Universal AC Input: 100-240VAC, 50/60 Hz
  • Power Supply: AC/DC, Internal, 36W
  • Management Interface: Ethernet In-Band
  • Modes: SMB Layer 2 Gigabit Ethernet Switch
  • ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
  • Operating Temperature: -5 to 40° C (23 to 104° F)
  • Operating Humidity: 10 - 90% Noncondensing
  • Certifications: CE, FCC, IC

LED

System
  • (1) Bootup Animation: Bootup in Progress
  • Firmware Upgrade Icon: Firmware Upgrading
  • Steady White: Factory Defaults, Awaiting Adoption
  • Steady Blue: Device is Adopted
  • SFP+: White: 10G, 1G
