Ubiquiti UniFi Switch Enterprise 8 PoE (USW-Enterprise-8-PoE)

Available:In Stock
£440.04

Ubiquiti UniFi Switch Enterprise 8 PoE (USW-Enterprise-8-PoE)

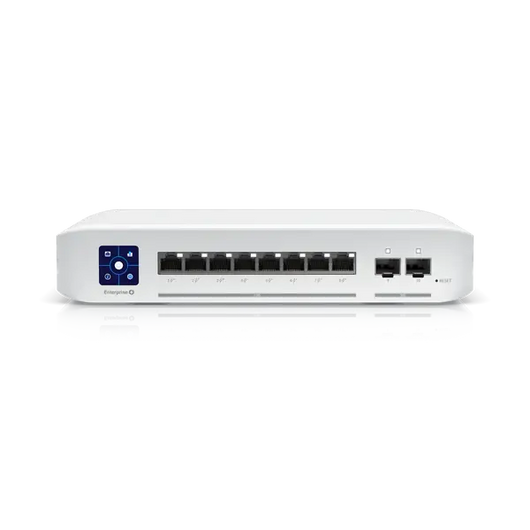

The Ubiquiti UniFi Switch Enterprise 8 PoE is a fully managed, Layer 3 switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW-Enterprise-8-PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

UniFi Switch Enterprise 8 Key Features:
  • (1) 1.3" LCM colour touchscreen with AR switch management
  • (8) 2.5GbE, 802.3at PoE+ RJ45 ports
  • (2) 10G SFP+ ports
  • 120W total PoE supply
  • Wall-mountable (kit included)
UniFi Switch Enterprise 8 POE Technical Specifications

Mechanical

  • Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
  • Weight 2.4 kg (5.29 lb)
  • Enclosure Materials Polycarbonate
  • Mount Material Polycarbonate

Hardware

  • Total Non-Blocking Throughput 40 Gbps
  • Switching Capacity 80 Gbps
  • Forwarding Rate 59.52 Mpps
  • Max PoE Power 120W
  • Power Method (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input
  • Power Supply AC/DC, Internal, 150W
  • Management Interface Ethernet In-Band
  • Networking Interfaces (8) 1/2.5 Gbps RJ45 Ethernet
  • SFP+ Interfaces (2) 1/10 Gbps SFP+
  • PoE Interfaces (8) PoE+ IEEE 802.3af/at(Pins 1, 2+; 3, 6-)
  • Max. PoE+ Wattage per Port by PSE 32W
  • Voltage Range 802.3af Mode 44 to 57V
  • Voltage Range 802.3at Mode 50 to 57V
  • Services SMB Layer 3* PoE Gigabit Ethernet Switch
    *Layer3featurewill beavailableinthefuturermwarerelease.
  • LCM Display (1) 1.3" Touchscreen
    Bootup Animation: Bootup in Progress
    Firmware Upgrade Icon: Firmware Upgrading
    Steady White: Factory Defaults, Awaiting Adoption
    Steady Blue: Device is Adopted
  • ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
  • Operating Temperature -5 to 45° C (23 to 113° F)
  • Operating Humidity 10 - 90% Noncondensing
  • Certifcations CE, FCC, IC

LEDs

  • Ethernet White: Link or Activity
  • SFP+ White: Link or Activity

Ubiquiti UniFi Switch Enterprise 8 PoE (USW-Enterprise-8-PoE)

The Ubiquiti UniFi Switch Enterprise 8 PoE is a fully managed, Layer 3 switch with (8) 2.5GbE, 802.3at PoE+ RJ45 ports and (2) 10G SFP+ ports.The USW-Enterprise-8-PoE also features a 1.3" LCM color touchscreen that concisely displays key system and connection insights. This switch can be monitored or configured from anywhere with the powerful, intuitive UniFi Network web application and mobile app.

UniFi Switch Enterprise 8 Key Features:
  • (1) 1.3" LCM colour touchscreen with AR switch management
  • (8) 2.5GbE, 802.3at PoE+ RJ45 ports
  • (2) 10G SFP+ ports
  • 120W total PoE supply
  • Wall-mountable (kit included)
UniFi Switch Enterprise 8 POE Technical Specifications

Mechanical

  • Dimensions 200 x 248 x 44 mm (7.9 x 9.8 x 1.7")
  • Weight 2.4 kg (5.29 lb)
  • Enclosure Materials Polycarbonate
  • Mount Material Polycarbonate

Hardware

  • Total Non-Blocking Throughput 40 Gbps
  • Switching Capacity 80 Gbps
  • Forwarding Rate 59.52 Mpps
  • Max PoE Power 120W
  • Power Method (1) 100-240VAC, 2A Max., 50/60 Hz, Universal Input
  • Power Supply AC/DC, Internal, 150W
  • Management Interface Ethernet In-Band
  • Networking Interfaces (8) 1/2.5 Gbps RJ45 Ethernet
  • SFP+ Interfaces (2) 1/10 Gbps SFP+
  • PoE Interfaces (8) PoE+ IEEE 802.3af/at(Pins 1, 2+; 3, 6-)
  • Max. PoE+ Wattage per Port by PSE 32W
  • Voltage Range 802.3af Mode 44 to 57V
  • Voltage Range 802.3at Mode 50 to 57V
  • Services SMB Layer 3* PoE Gigabit Ethernet Switch
    *Layer3featurewill beavailableinthefuturermwarerelease.
  • LCM Display (1) 1.3" Touchscreen
    Bootup Animation: Bootup in Progress
    Firmware Upgrade Icon: Firmware Upgrading
    Steady White: Factory Defaults, Awaiting Adoption
    Steady Blue: Device is Adopted
  • ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
  • Operating Temperature -5 to 45° C (23 to 113° F)
  • Operating Humidity 10 - 90% Noncondensing
  • Certifcations CE, FCC, IC

LEDs

  • Ethernet White: Link or Activity
  • SFP+ White: Link or Activity
