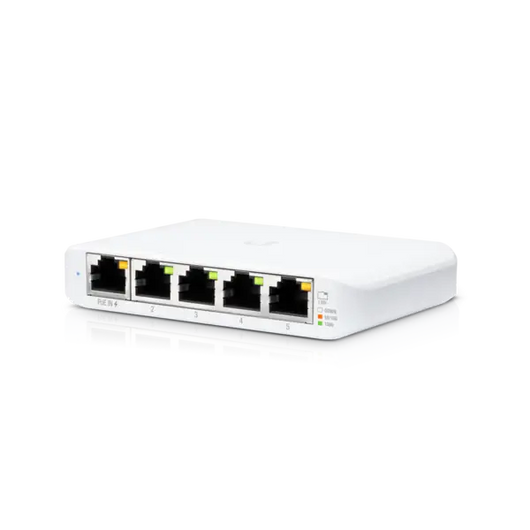

Ubiquiti UniFi Switch Flex 5-Port Layer 2 Gigabit with PoE Support (USW-FLEX)

The Ubiquiti UniFi Switch USW-FLEX is a configurable Layer 2 Gigabit switch with auto-sensing 802.3af PoE. It offers five RJ45 Gigabit Ethernet ports, providing 1 PoE input and 4 PoE output links to your devices.

Ubiquiti UniFi Switch USW-FLEX Key Features

Auto-sensing 802.3af PoE
5 RJ45 Gigabit Ethernet ports
Switching Performance
PoE Flexibility
Indoor/Outdoor Design
Versitile Mounting
Seamless Integration

Versatile Mounting
The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

Indoor/Outdoor Design
The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

Ubiquiti UniFi Switch USW-FLEX - Technical Specifications

General

Dimensions: 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10")
Weight: 230 g (8.11 oz)
Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports
Management Interface: Ethernet In-Band
Power Method (Port 1):
- PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-)1
- PoE Mode 2: 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)2
- PoE Mode 3: 50V/60W PoE Adapter3
PoE Out (Ports 2-5): 802.3af (Pins 1, 2+; 3, 6-)
Max. Power Consumption (Excluding PoE Output): 5W
Max PoE Wattage Per Port: 15.4W
Total PoE Power Budget:
- Powered by AF mode PSE: 8W
- Powered by AT mode PSE: 20W
- Powered by BT mode PSE: 46W
- Powered by PoE Adapter (Enabled in Controller): 46W
Voltage Range:
- 802.3af: 44 - 57V
- 802.3at/bt: 50 - 57V
LEDs:
- System: Status
- RJ45 Data Ports: PoE; Link/Speed/Activity
ESD/EMP Protection: ± 16kV Air, ± 16kV Contact
Operating Temperature:
- 46W PoE Output: -40 to 55° C (-40 to 131° F)
- 25W PoE Output: -40 to 65° C (-40 to 149° F)
Operating Humidity: 5 to 95% Noncondensing
Certifications: CE, FCC, IC

1 Recommended PoE power source: US-8-150W (sold separately)
2 Recommended PoE power source: USW-Industrial (sold separately)
3 Recommended PoE power source: POE-50-60W-WH (sold separately)
(POE-50-60W-WH requires enabling injector mode in UniFi Controller)
