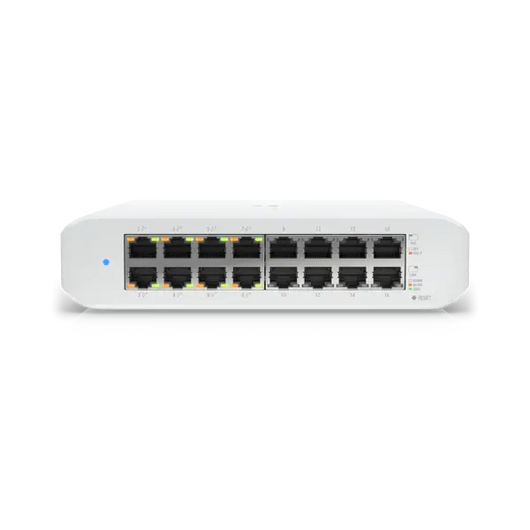

Ubiquiti UniFi Switch Lite 16 PoE (USW-Lite-16-PoE-EU)
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
Categories

Ubiquiti UniFi Switch Lite 16 PoE (USW-Lite-16-PoE-EU)

Available:In Stock
£190.80

Ubiquiti UniFi Switch Lite 16-Port PoE Switch (USW-Lite-16-POE)

The Ubiquiti UniFi Switch Lite 16 PoE is a fully managed Layer 2 switch with sixteen Gigabit Ethernet ports for your RJ45 Ethernet devices. Eight ports also offer auto-sensing 802.3at PoE+ that provide up to a total of 45W PoE wattage for UniFi Access Points or other PoE devices.

Ubiquiti UniFi USW-Lite-16-PoE-EU Switch key features

  • 16 Gigabit RJ45 ports including eight 802.3at PoE+ ports
  • Managed by UniFi Controller
  • 60W power supply
  • Wall-mountable (Kit included)

The UniFi Switch Lite 16 PoE is managed and configured by the UniFi Network Controller with UniFi mobile app support and offers Layer 2 switching protocols and features. The UniFi Network Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere

Ubiquiti UniFi USW-Lite-16-PoE-EU Technical Specification

Product Specifications

  • Dimensions: 191.7 x 185 x 43.7 mm (7.55 x 7.28 x 1.72")
  • Weight:1.2 kg (2.65 lb)
  • Total Non-Blocking Line Rate: 16 Gbps
  • Max. Power Consumption: 15W
  • Power Method Universal AC Input: 100-240VAC
  • Power Supply: Internal 60W AC/DC Power Supply
  • Networking Interfaces: (16) 10/100/1000 Mbps Ethernet RJ45
  • PoE Interfaces: (8) PoE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
  • Mangement Interface Ethernet In-Band
  • Max PoE+ Wattage per Port by PSE 30W
  • Modes: SMB Layer 2 PoE Gigabit Ethernet Switch
  • Operating Temperature: -15 to 40° C (5 to 104° F)
  • Operating Humidity: 10 - 90% Noncondensing
  • Certifications: CE, FCC, IC

LED

  • System
    - (1) Power, Blue/WhiteFlashing White: Bootup in Progress
    - Flashing Blue: Firmware Upgrading
    - Steady White: Factory Defaults, Awaiting Adoption
    - Steady Blue: Device is Adopted
  • Ethernet Green: 1G, Amber: 10/100 Mbps
  • PoE Amber: IEEE 802.3af/at
