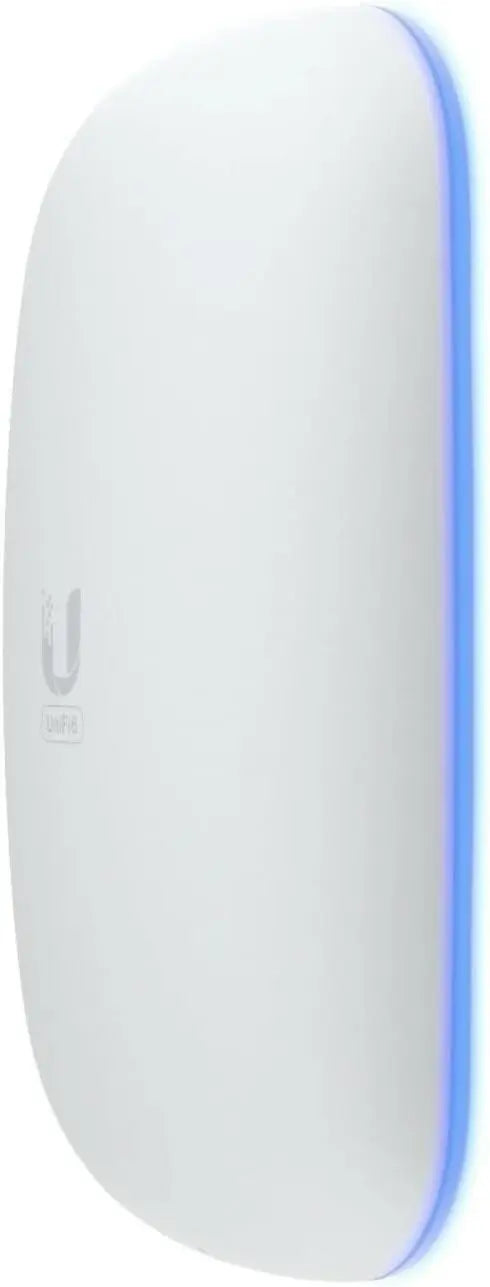

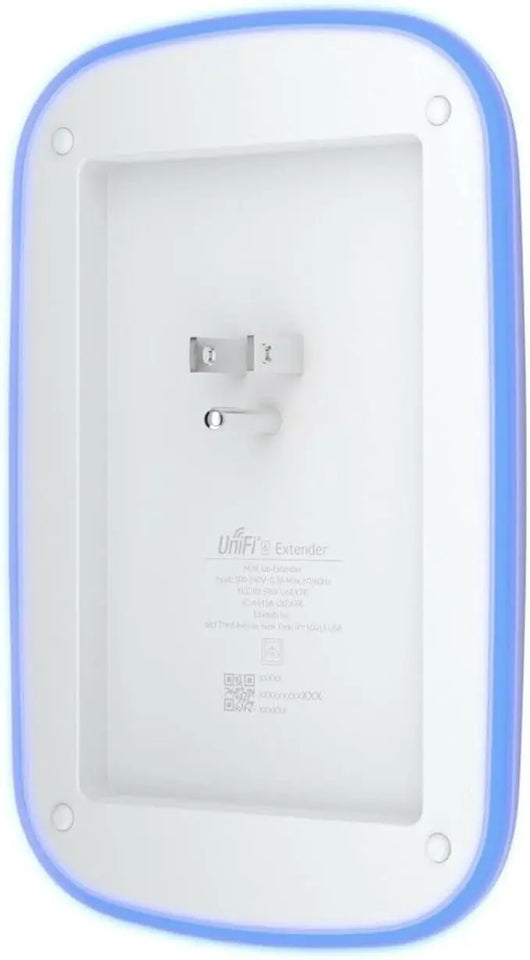

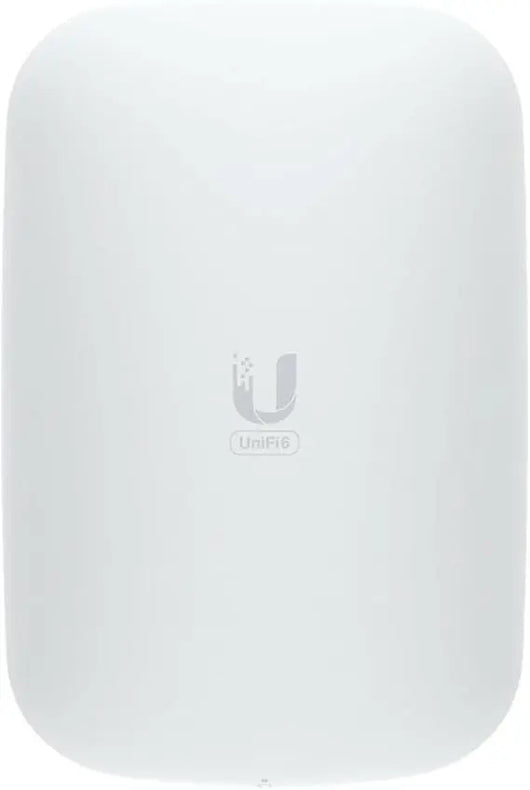

Ubiquiti UniFi U6-Extender Access Point
Ubiquiti UniFi U6-Extender Access Point
The UniFi6 Extender (U6 Extender) is a portable, plug-and-play WiFi 6 access point that can easily and instantly broaden your home or office's wireless coverage. With its dual-band design and 5.3+ Gbps aggregate throughput rate, the U6 Extender delivers the strong, reliable connectivity needed to support even the most device-dense networks.
Deploying this access point is as simple as plugging it in, and its compact frame allows you to strengthen your signal without cluttering your space or disrupting its aesthetic.
The U6 Extender can be adopted to your network in a matter of minutes and centrally managed with either the UniFi Network web application or mobile app.
Ubiquiti UniFi U6-EXTENDER Key Features
- Dual-band WiFi 6 connectivity
- 5 GHz band (4x4 MU-MIMO and OFDMA) with up to a 4.8 Gbps throughput rate
- 2.4 GHz band (2x2 MU-MIMO and OFDMA) with up to a 573.5 Mbps throughput rate
- Fits any standard EU wall outlet
- Easily extends wireless coverage across large homes or offices
- APs providing wireless connectivity for the U6 Extender must be updated to Version 6.0.11 or later.
- Dream Machines (UDM) must be updated to Version 1.12.22 or later.
- Dream Routers (UDR) must be updated to Version 2.3.15 or later.
Ubiquiti UniFi U6-EXTENDER- Technical Specifications
Mechanical
- Dimensions: 169.7 x 112.2 x 77.6 mm (6.68 x 4.42 x 3.05")
- Weight: 340 g (12 oz))
- Enclosure material: Plastic
Hardware
- Management interface: Bluetooth
- Button: Factory reset
- LED*: White/blue (*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.)
- Power method: Universal AC input, 100-240VAC, 0.3A max., 50/60 Hz
- Supported voltage range: 110 to 240VAC
- Max. power consumption: 11W
- Max. TX power
- 2.4 GHz - 22 dBm
- 5 GHz - 26 dBm
- MIMO
- 2.4 GHz - 2 x 2 (UL MU-MIMO)
- 5 GHz - 4 x 4 (DL/UL MU-MIMO)
- Throughput rate
- 2.4 GHz - 573.5 Mbps
- 5 GHz - 4.8 Gbps
- Antenna gain
- 2.4 GHz - 5 dBi
- 5 GHz - 6 dBi
- Operating temperature: -10 to 50° C (14 to 122° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: FCC, IC
Software
- WiFi standards: 802.11a/b/g
- WiFi: 4/WiFi 5/WiFi 6
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
- Zero wait DFS: Yes
Supported Data Rates
- 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b 1, 2, 5.5, 11 Mbps
- 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
- 802.11ac (WiFi 5) 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Ubiquiti UniFi U6-Extender Access Point
The UniFi6 Extender (U6 Extender) is a portable, plug-and-play WiFi 6 access point that can easily and instantly broaden your home or office's wireless coverage. With its dual-band design and 5.3+ Gbps aggregate throughput rate, the U6 Extender delivers the strong, reliable connectivity needed to support even the most device-dense networks.
Deploying this access point is as simple as plugging it in, and its compact frame allows you to strengthen your signal without cluttering your space or disrupting its aesthetic.
The U6 Extender can be adopted to your network in a matter of minutes and centrally managed with either the UniFi Network web application or mobile app.
Ubiquiti UniFi U6-EXTENDER Key Features
- Dual-band WiFi 6 connectivity
- 5 GHz band (4x4 MU-MIMO and OFDMA) with up to a 4.8 Gbps throughput rate
- 2.4 GHz band (2x2 MU-MIMO and OFDMA) with up to a 573.5 Mbps throughput rate
- Fits any standard EU wall outlet
- Easily extends wireless coverage across large homes or offices
- APs providing wireless connectivity for the U6 Extender must be updated to Version 6.0.11 or later.
- Dream Machines (UDM) must be updated to Version 1.12.22 or later.
- Dream Routers (UDR) must be updated to Version 2.3.15 or later.
Ubiquiti UniFi U6-EXTENDER- Technical Specifications
Mechanical
- Dimensions: 169.7 x 112.2 x 77.6 mm (6.68 x 4.42 x 3.05")
- Weight: 340 g (12 oz))
- Enclosure material: Plastic
Hardware
- Management interface: Bluetooth
- Button: Factory reset
- LED*: White/blue (*Due to chip supply shortages, the U6 AP's LED has been limited to only white and blue color modes.)
- Power method: Universal AC input, 100-240VAC, 0.3A max., 50/60 Hz
- Supported voltage range: 110 to 240VAC
- Max. power consumption: 11W
- Max. TX power
- 2.4 GHz - 22 dBm
- 5 GHz - 26 dBm
- MIMO
- 2.4 GHz - 2 x 2 (UL MU-MIMO)
- 5 GHz - 4 x 4 (DL/UL MU-MIMO)
- Throughput rate
- 2.4 GHz - 573.5 Mbps
- 5 GHz - 4.8 Gbps
- Antenna gain
- 2.4 GHz - 5 dBi
- 5 GHz - 6 dBi
- Operating temperature: -10 to 50° C (14 to 122° F)
- Operating humidity: 5 to 95% noncondensing
- Certifications: FCC, IC
Software
- WiFi standards: 802.11a/b/g
- WiFi: 4/WiFi 5/WiFi 6
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
- Zero wait DFS: Yes
Supported Data Rates
- 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b 1, 2, 5.5, 11 Mbps
- 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
- 802.11ac (WiFi 5) 6.5 Mbps to 3.4Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
- 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
| WiFi Technology |
Dual-Band, Wi-Fi 6 |
|---|---|
| Wi-Fi Standard |
802.11a |
