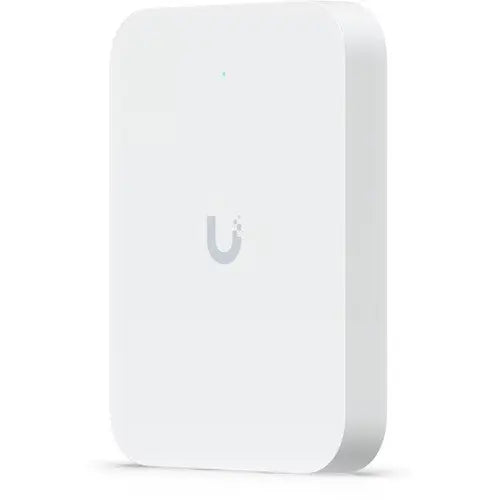

Ubiquiti UniFi U7 Pro Wall Access Point (U7-Pro-Wall)
Ubiquiti UniFi U7 Pro Wall Access Point (U7-Pro-Wall)
The Ubiquiti UniFi U7 Pro Wall Access Point is a wall-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support tailored for home builders with seamless installation options.
U7-Pro-Wall Key Features:
- WiFi 7 with 6 GHz support
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink
- Versatile deployment with optional Flush Mount and Table Stand accessories*

The U7-Pro-Wall is a cutting-edge WiFi 7 access point featuring 6 GHz support and six spatial streams, ensuring robust connectivity. It covers an impressive 140 m² (1,500 ft²), can handle over 300 connected devices, and is powered via PoE+ for streamlined installation. With a 2.5 GbE uplink and versatile deployment options including optional Flush Mount and Table Stand accessories, it offers flexible and high-performance networking solutions.
U7-Pro-Wall Technical Specifications
Mechanical
- Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4")
- Weight: 580 g (1.3 lb)
- Enclosure material: Polycarbonate, aluminum
- Mount material: Aluminum
Hardware
- Networking interface: (1) 1/2.5 GbE RJ45 port
- Management interface: Ethernet
- Power method: PoE+
- Power supply: UniFi PoE switch
- Supported voltage range: 44—57V DC
- Max. power consumption: 22W
- Max. TX power
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
- 6 GHz: 23 dBm
- MIMO
- 2.4 GHz: 2 x 2
- 5 GHz: 2 x 2
- 6 GHz: 2 x 2
- Throughput rate
- 2.4 GHz: 688 Mbps
- 5 GHz: 4324 Mbps
- 6 GHz: 5764 Mbps
- Antenna gain
- 2.4 GHz: 4 dBi
- 5 GHz: 5 dBi
- 6 GHz: 6 dBi
- LEDs: White/blue
- Button: Factory reset
- Mounting: Wall (Included), Table stand, flush mount (Optional)
- Ambient operating temperature: -30 to 60° C (-22 to 140° F)
- Ambient operating humidity: 5 to 95% noncondensing
- Certifications: CE, FCC, IC
Software
- WiFi standards: 802.11a/b/g/n/ac/ax/be
- Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
- BSSID: 8 per radio
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest traffic isolation: Supported
- Concurrent clients: 300+
- Supported Data Rates
- 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11ax (WiFi 6/6E): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11be (WiFi 7): 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
- UniFi Network: Version 8.1 and later
- UniFi OS: Version 3.2 and later
