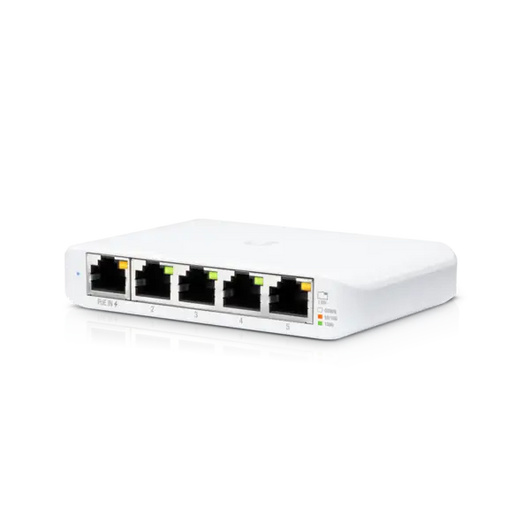

Ubiquiti UniFi USW Flex Mini 5-Port Layer 2 Gigabit Switch - EU Power Supply (USW-Flex-Mini)
Review: 5 - "A masterpiece of literature" by , written on May 4, 20020
Great
Categories

Ubiquiti UniFi USW Flex Mini 5-Port Layer 2 Gigabit Switch - EU Power Supply (USW-Flex-Mini)

Available:In Stock
£31.20

Please Note: This product does not come with PoE injectors included, however, you can select our PoE injector kits from the accessories menu.

Ubiquiti UniFi USW Flex Mini 5-Port Layer 2 Gigabit Switch - EU Power Supply (USW-Flex-Mini)

The UniFi USW-Flex-Mini is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C (european only) power adapter or with 802.3af PoE Ethernet in port 1.

Ubiquiti UniFi USW-Flex-Mini Key Features

  • Powered by 802.3af/at PoE or USB Type C (european only)
  • Compact Desktop Footprint
  • Energy-Efficient Design
  • 5x 10/100/1000 RJ45 ports
  • 1x 802.3af/at PoE input port

Compact Desktop Design

The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.

Copper Connectivity

Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.

Efficient Use of Energy

The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter (european only)

Switching Performance

The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Ubiquiti UniFi USW-Flex-Mini - Technical Specifications

General

  • Dimensions: 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
  • Weight: 150 g (5.29 oz)
  • Interfaces:
    - Networking: (5) 10/100/1000 RJ45 Ports
    - PoE In: 802.3af/at PoE (Pins 1, 2+; 3, 6-)
    - Management: Ethernet In-Band
  • Total Non-Blocking Throughput: 5 Gbps
  • Switching Capacity: 10 Gbps
  • Forwarding Rate: 7.44 Mpps
  • Power Method:
    - USB Type C, 5V
    - 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)
  • Voltage Range:
    - USB Type C: 4.7 - 5.3V
    - 802.3af/at PoE: 44 - 57VDC
  • Max Power Consumption: 2.5W
  • LEDs:
    - System: Status
    - RJ45 Data Ports: Speed/Link/Activity
  • ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Operating Temperature: -5 to 45° C (23 to 113° F)
  • Operating Humidity: 10 - 90% Noncondensing
  • Certifications: CE, FCC, IC

Please Note: This product does not come with PoE injectors included, however, you can select our PoE injector kits from the accessories menu.

Ubiquiti UniFi USW Flex Mini 5-Port Layer 2 Gigabit Switch - EU Power Supply (USW-Flex-Mini)

The UniFi USW-Flex-Mini is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C (european only) power adapter or with 802.3af PoE Ethernet in port 1.

Ubiquiti UniFi USW-Flex-Mini Key Features

  • Powered by 802.3af/at PoE or USB Type C (european only)
  • Compact Desktop Footprint
  • Energy-Efficient Design
  • 5x 10/100/1000 RJ45 ports
  • 1x 802.3af/at PoE input port

Compact Desktop Design

The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.

Copper Connectivity

Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.

Efficient Use of Energy

The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter (european only)

Switching Performance

The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

Ubiquiti UniFi USW-Flex-Mini - Technical Specifications

General

  • Dimensions: 107.16 x 70.15 x 21.17 mm (4.22 x 2.76 x 0.83")
  • Weight: 150 g (5.29 oz)
  • Interfaces:
    - Networking: (5) 10/100/1000 RJ45 Ports
    - PoE In: 802.3af/at PoE (Pins 1, 2+; 3, 6-)
    - Management: Ethernet In-Band
  • Total Non-Blocking Throughput: 5 Gbps
  • Switching Capacity: 10 Gbps
  • Forwarding Rate: 7.44 Mpps
  • Power Method:
    - USB Type C, 5V
    - 802.3af/at PoE (44 - 57VDC, 0.05 - 0.04A)
  • Voltage Range:
    - USB Type C: 4.7 - 5.3V
    - 802.3af/at PoE: 44 - 57VDC
  • Max Power Consumption: 2.5W
  • LEDs:
    - System: Status
    - RJ45 Data Ports: Speed/Link/Activity
  • ESD/EMP Protection: Air: ±16 kV, Contact: ±12 kV
  • Shock and Vibration: ETSI300-019-1.4 Standard
  • Operating Temperature: -5 to 45° C (23 to 113° F)
  • Operating Humidity: 10 - 90% Noncondensing
  • Certifications: CE, FCC, IC
