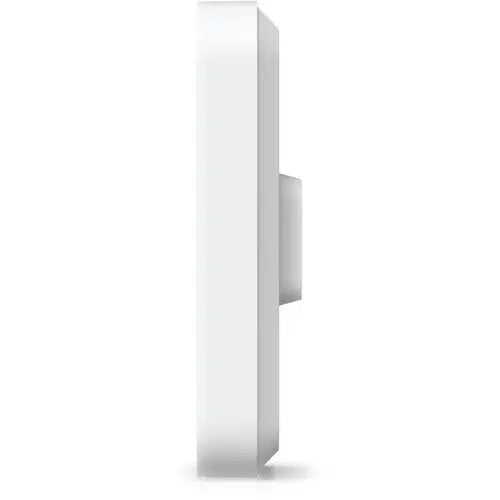

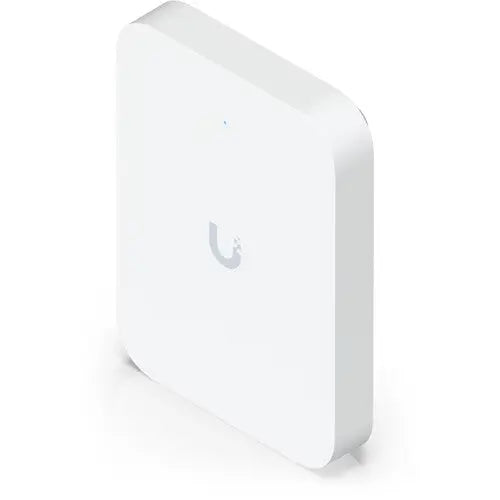

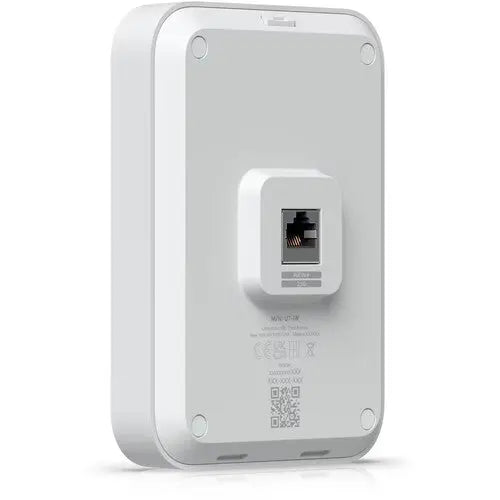

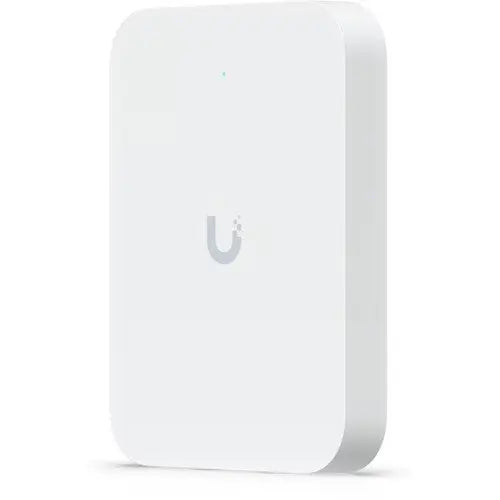

Ubiquiti UniFi WiFi 7 In-Wall Access Point (U7-IW)
Ubiquiti UniFi WiFi 7 In-Wall Access Point (U7-IW)
The Ubiquiti UniFi 7 In-Wall is a high-performance WiFi 7 in-wall access point, designed to deliver ultra-fast, low-latency wireless connectivity with seamless UniFi integration. Featuring dual-band MU-MIMO, OFDMA, and wired passthrough ports, it ensures optimal coverage and efficiency for modern smart homes, offices, and hospitality environments. Its sleek in-wall design allows for discreet deployment while providing powerful networking capabilities and advanced security features.
With 2.5GbE uplink support and wired passthrough ports, the U7-IW enables high-speed wired and wireless connections, making it ideal for bandwidth-intensive applications like 4K/8K streaming, video conferencing, and IoT deployments. The in-wall form factor ensures discreet, space-saving installation, while advanced security protocols and UniFi network management offer centralized control, VLAN support, and seamless roaming for a superior user experience.
Ubiquiti UniFi U7-IW Key Features:
- High-efficiency, four-stream WiFi 7 technology
- Dual-band operation (2.4 GHz & 5 GHz) – Supports concurrent multi-user connectivity with OFDMA and MU-MIMO
- 2.5GbE uplink (RJ45, PoE) – High-speed wired connectivity with Power over Ethernet (PoE) support
- ntegrated wired passthrough ports (Gigabit Ethernet)
- Low-profile in-wall mounting
Ubiquiti UniFi U7-IW - Technical Specifications
Overview
- Dimensions: 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
- WiFi Standard: WiFi 7
- Spatial Streams: 4
- Coverage Area: 115 m² (1,250 ft²)
- Max. Client Count: 200+
- Uplink: 2.5 GbE
- Mounting Locations: Wall
- Mounting Plate: Metal wall mount (Included)
- Power Method: PoE, PoE+ (Required for PoE output)
Performance
- MIMO
- 5 GHz 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz 4.3 Gbps (BW240)
- 2.4 GHz 688 Mbps (BW40)
- Antenna Gain
- 5 GHz 8 dBi
- 2.4 GHz 4 dBi
- Max. TX Power
- 5 GHz 24 dBm
- 2.4 GHz 23 dBm
- Max. BSSIDs 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
Hardware
- Max. Power Consumption: 13W (Excluding PoE output)
- Supported Voltage Range: 42.5—57V DC
- Networking Interface: (3) 2.5 GbE RJ45 ports
- Weight : 400 g (14.1 oz)
- Management: Ethernet
- Built-In Switch: (1) PoE+ input and (1) PoE output
- Enclosure Material: Polycarbonate, aluminum alloy
- Mount Material: Aluminum alloy
- LEDs
- System White/Blue
- Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- Certifications: CE, FCC, IC
- Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
Software
- Application Requirements
- UniFi Network
- :Version 9.0.114 and later
- UniFi OS:
- iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
Description
Ubiquiti UniFi WiFi 7 In-Wall Access Point (U7-IW)
The Ubiquiti UniFi 7 In-Wall is a high-performance WiFi 7 in-wall access point, designed to deliver ultra-fast, low-latency wireless connectivity with seamless UniFi integration. Featuring dual-band MU-MIMO, OFDMA, and wired passthrough ports, it ensures optimal coverage and efficiency for modern smart homes, offices, and hospitality environments. Its sleek in-wall design allows for discreet deployment while providing powerful networking capabilities and advanced security features.
With 2.5GbE uplink support and wired passthrough ports, the U7-IW enables high-speed wired and wireless connections, making it ideal for bandwidth-intensive applications like 4K/8K streaming, video conferencing, and IoT deployments. The in-wall form factor ensures discreet, space-saving installation, while advanced security protocols and UniFi network management offer centralized control, VLAN support, and seamless roaming for a superior user experience.
Ubiquiti UniFi U7-IW Key Features:
- High-efficiency, four-stream WiFi 7 technology
- Dual-band operation (2.4 GHz & 5 GHz) – Supports concurrent multi-user connectivity with OFDMA and MU-MIMO
- 2.5GbE uplink (RJ45, PoE) – High-speed wired connectivity with Power over Ethernet (PoE) support
- ntegrated wired passthrough ports (Gigabit Ethernet)
- Low-profile in-wall mounting
Ubiquiti UniFi U7-IW - Technical Specifications
Overview
- Dimensions: 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2")
- WiFi Standard: WiFi 7
- Spatial Streams: 4
- Coverage Area: 115 m² (1,250 ft²)
- Max. Client Count: 200+
- Uplink: 2.5 GbE
- Mounting Locations: Wall
- Mounting Plate: Metal wall mount (Included)
- Power Method: PoE, PoE+ (Required for PoE output)
Performance
- MIMO
- 5 GHz 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz 4.3 Gbps (BW240)
- 2.4 GHz 688 Mbps (BW40)
- Antenna Gain
- 5 GHz 8 dBi
- 2.4 GHz 4 dBi
- Max. TX Power
- 5 GHz 24 dBm
- 2.4 GHz 23 dBm
- Max. BSSIDs 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
Hardware
- Max. Power Consumption: 13W (Excluding PoE output)
- Supported Voltage Range: 42.5—57V DC
- Networking Interface: (3) 2.5 GbE RJ45 ports
- Weight : 400 g (14.1 oz)
- Management: Ethernet
- Built-In Switch: (1) PoE+ input and (1) PoE output
- Enclosure Material: Polycarbonate, aluminum alloy
- Mount Material: Aluminum alloy
- LEDs
- System White/Blue
- Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- Certifications: CE, FCC, IC
- Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
Software
- Application Requirements
- UniFi Network
- :Version 9.0.114 and later
- UniFi OS:
- iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
