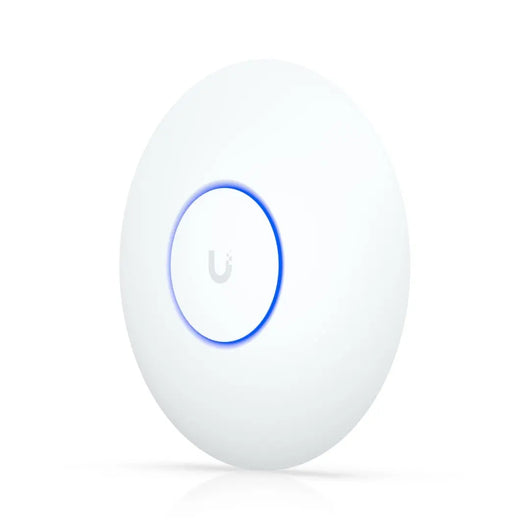

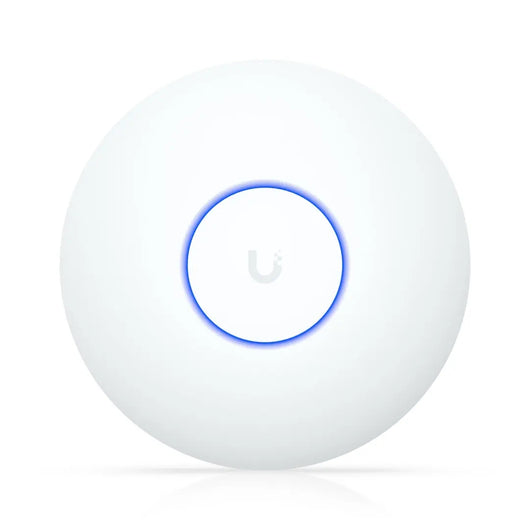

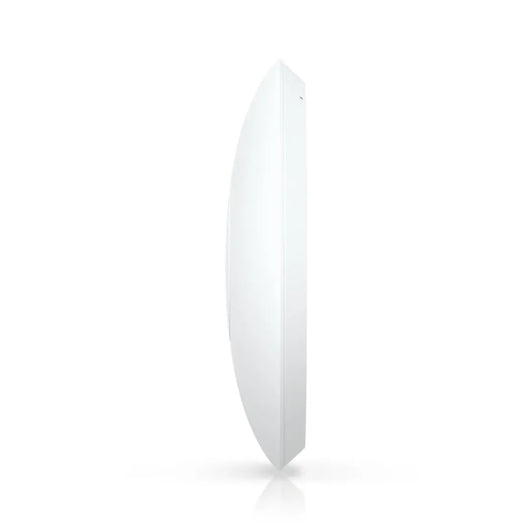

Ubiquiti UniFi WiFi 7 Lite Access Point (U7-Lite)
Ubiquiti UniFi WiFi 7 Lite Access Point (U7-Lite)
The Ubiquiti UniFi U7 Lite is a high-performance WiFi 7 access point designed to provide ultra-fast, reliable, and efficient wireless connectivity. Featuring advanced technologies like MU-MIMO, OFDMA, and enhanced security, it ensures seamless networking for homes and businesses. With improved signal strength, low latency, and superior coverage, the U7 Lite optimizes performance for multiple devices, making it ideal for high-density environments.
Ubiquiti UniFi U7 Lite Key Features:
- Wi-Fi 7 with 5 GHz support
- 115 m² (1,250 ft²) coverage
- 200+ connected devices
- Powered using PoE
- 2.5 GbE uplink
Its sleek design and easy UniFi controller integration allow for effortless deployment and management, ensuring a scalable and future-proof network solution.
This ceiling-mounted Wi-Fi 7 access point is designed to deliver exceptional performance in demanding, large-scale environments. With 4 spatial streams and support for the 5GHz band, it offers interference-free connectivity, ensuring fast and reliable Wi-Fi even in crowded spaces.
Powered using PoE, this access point simplifies installation and reduces the need for additional power sources. It also features a 2.5 GbE uplink, ensuring a high-speed, stable connection to your network infrastructure for optimal data throughput.
Ubiquiti UniFi U7- Lite - Technical Specifications
Overview
- Dimensions: Ø171.5 x 33 mm (Ø6.8 x 1.3")
- WiFi Standard: WIFi 7
- Spatial Streams: 4
- Coverage Area: 115 m² (1,250 ft²)
- Max. Client Count: 200+
- Uplink: 2.5 GbE
- Mounting Locations: Ceiling, wall
- Mounting Plate: Plastic mounting plate (Included)
- Power Method: PoE
Performance
- MIMO
- 5 GHz 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
- Max. Data Rate
- 5 GHz 4.3 Gbps (BW240)
- 2.4 GHz 688 Mbps (BW40)
- Antenna Gain
- 5 GHz 5 dBi
- 2.4 GHz 4 dBi
- Max. TX Power
- 5 GHz 24 dBm
- 2.4 GHz 23 dBm
- Max. BSSIDs: 8 per Radio
- Supported Data Rates
- 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6) 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5) 6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
- Wireless Meshing: Yes
- Band Steering: Yes
- 802.11v BSS Transition Management: Yes
- 802.11r Fast Roaming: Yes
- 802.11k Radio Resource Management (RRM): Yes
- Advanced Radio Management: Yes
- Passpoint (Hotspot 2.0): Yes
- Captive Hotspot Portal
- Custom Branding Landing Page: Yes
- Voucher Authentication: Yes
- Payment-Based Authentication: Yes
- External Portal Server Support: Yes
- Password Authentication: Yes
- Guest Network Isolation: Yes
- Private Pre-Shared Key (PPSK): Yes
- WiFi Speed Limiting: Yes
- Client Device Isolation: Yes
- WiFi Schedules: Yes
- RADIUS over TLS (RadSec): Yes
- Dynamic RADIUS-assigned VLAN: Yes
Hardware
- Max. Power Consumption: 13W
- Supported Voltage Range: 42.5—57V DC

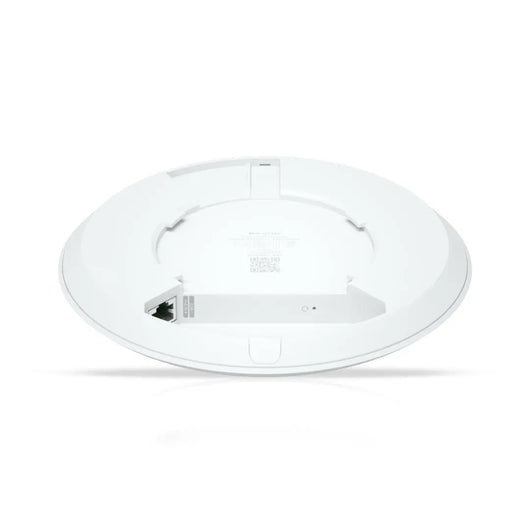

- Networking Interface: (1) 2.5 GbE RJ45 port
- Weight: 313 g (11 oz)
- Management: Ethernet
- Enclosure Material: UV-stabilized polycarbonate
- Mount Material: UV-stabilized polycarbonate, galvanized steel (SGCC)
- LEDs
- System White/Blue
- Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
- Certifications: CE, FCC, IC
- Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
Software
- Application Requirements
- UniFi Network
- Version 9.0.114 and later
- UniFi OS
- iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
