Yealink MVC840 Datasheet (PDF)
Yealink MVC840 Microsoft Teams Rooms System for Large Rooms
The Yealink MVC840 is a native and easy-to-use video conferencing solution specially designed for Microsoft Teams rooms. The MVC series provides a full-scene video conference solution to cover all of the meeting rooms from small to large.
Yealink MVC840 Key Features
- One cable technology
- 3-microphone array
- Yealink camera control plug-in
- Auto framing
- Wireless content sharing
- Device management

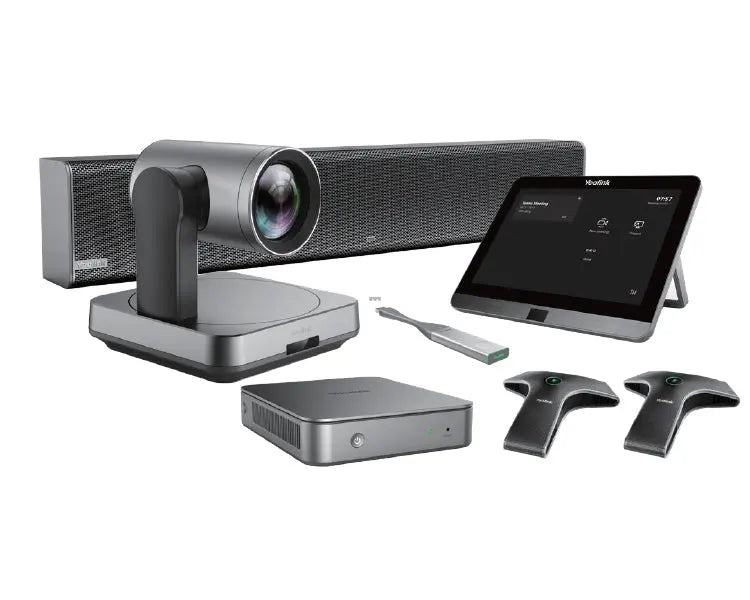

The MVC840 features the native Microsoft Teams-tailored user interface that is easy to be operated with close-to-zero learning curve, and you just walk into the meeting room and start your scheduled Teams or Skype for Business meeting with one-touch join. The Yealink MVC840 includes two or three VCM34 array microphones (up to 6 units can be connected) and a 4K UVC84 USB PTZ camera with 12x optical zoom to meet the requirements of large meeting room.
Package content
- MCore Mini-PC
- MTouch II touch panel
- UVC84 USB PTZ camera
- Two or three VCM34 array microphones (optional)
- One or two Yealink soundbars (optional)
- WPP20 wireless presentation pod (optional)
Preload
- Windows 10 IoT Enterprise X64
- Windows 10 IoT Enterprise License
- Microsoft Teams Rooms App, support Skype for Business on-premise/online and Teams meetings
- Yeallink RoomConnect
MCore Mini-PC
- 8th-gen Intel® QUAD-CORE i5
- Memory: 8GB (2 x 4GB)
- Storage: 128GB SSD
- 2 x HDMI video output with CEC supported
- Bluetooth and WiFi
- 1x Yealink VCH port (RJ45), connect to MTouch II
- 4 x USB3.0 Type-A
- 1 x 10/100/1000M Ethernet port
- 1 x Power port
- 1 x Security lock slot
- Integrated cable management
MTouch II touch panel
- 8-inch IPS screen
- 1280 x 800 resolution
- 10-point capacitive touch screen
- 3.5mm headset jack
- Human Motion Sensor
- Angle adjustable bracket (28° ~ 50°)
- 1080P/30FPS FHD for sharing
- Support wired and wireless content sharing
- Built-in WiFi AP for Yealink wireless presentation device
- HDMI/USB-C HD video input
UVC84 USB PTZ Camera
- 4K camera
- 12x optical zoom
- Field of view (diagonal): 80°
- Auto Framing
- Camera presets
- Pan range: 200°
- Tilt range: 130°
- 1 x Line-out (3.5mm)
- 1 x Yealink Microphone port (RJ-45)
- 1 x USB 2.0 Type-B
- 1 x Power port
- 1 x Security lock slot
- 1 x Reset slot
VCM34 Array Microphone
- Built-in 3-microphone array
- 360° 20ft (6-meter) voice pickup range
- Cascade connection up to 6 units
- Mute button with bicolor LED
Yealink Soundbar
- Frequent response：100Hz - 20KHz
- S/N：≥70dB
- 1 x Line-in (3.5mm)
Package features s (2 x VCM34)
- N.W/CTN: 10.4Kg
- G.W/CTN: 11.6Kg
- Carton Meas: 595mm x 535mm x 320mm
Package features (3x VCM34)
- N.W/CTN: 12.9Kg
- G.W/CTN: 14.1Kg
- Carton Meas: 595mm x 535mm x 320mm
Package features (without audio)
- N.W/CTN: 6.6Kg
- G.W/CTN: 7.3Kg
- Carton Meas: 595mm x 393mm x 258mm
| Phone Ports |
1 x Gigabit |
|---|---|
| Bluetooth |
Yes |
